DOMETIC 7640 Diagram
+2

DOMETIC 7640 MODEL

Home/Store/RV CATALOG/SANITATION/Toilet Illustrations
SKU 996436
$0.00
7640
Item
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
DOMETIC 7640 MODEL
Home/Store/RV CATALOG/SANITATION/Toilet Illustrations
Product Details
Brand: DOMETIC

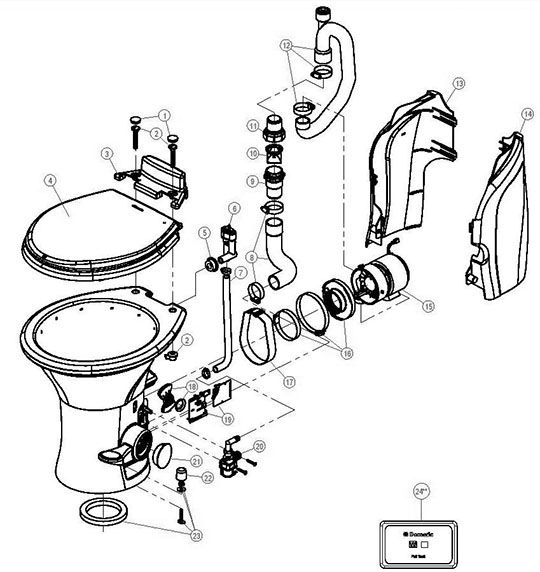

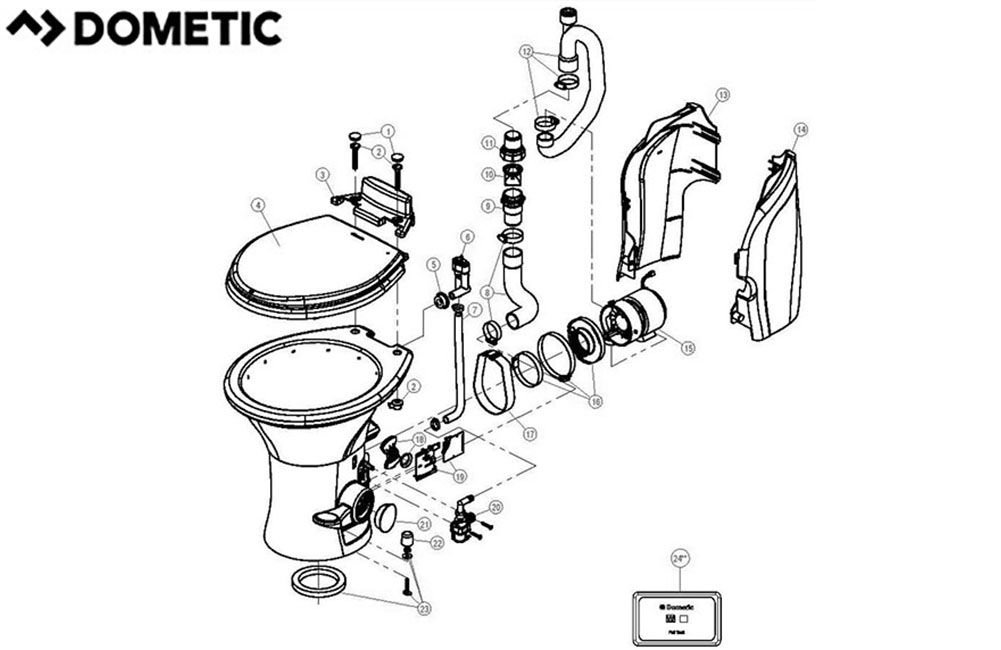

# Description MFG # Part # Price
1 Cover - Seat Mounting - White 385311648 -
Cover - Seat Mounting - Bone 385311649 -
2 Hardware - Seat Mounting - White (Incl Item #1) 385311650 -
Hardware - Seat Mounting - Bone (Incl Item #1) 385311651 -
3 Cover - Vacuum Breaker Rep'l - White (Incl Items #1,2) 385311944 -
Cover - Vacuum Breaker Rep'l - Bone (Incl Items #1,2) 385311945 -
4 Seat/Cover - Replacement - White (Incl Items #1,2,3) 385311949 -
Seat/Cover - Replacement - Bone (Incl Items #1,2,3) 385311950 -
5 Grommet - Sealing (1/2") 385311164 -
6 Kit - Vacuum Breaker - Without Sprayer (includes Item #5) 385316906 650228 $54.82
7 Hose - Bowl Supply (Includes Clamps) 385312080 -
8 Tube - Lower Discharge 385312081 -
9 Fitting - Pump Outlet (1-1/2") 385311315 -
10 Valve - Check (1-1/2") 385311620 650180 $58.00
11 Adapter - Discharge Tube Valve 385880070 650243 $34.45
12 Tube - Upper Discharge (Includes Anti-Siphon Valve) 385312082 -
13 Cover - RH Pump Base - White (Includes Mounting Hardware) 385312083 -
Cover - RH Pump Base - Bone (Includes Mounting Hardware) 385312084 -
14 Cover - LH Pump Base - White (Includes Mounting Hardware) 385312085 -
Cover - LH Pump Base - Bone (Includes Mounting Hardware) 385312086 -
15 Motor/Macerator - Assy 12VDC 385880068 -
16 Adapter - Bowl Outlet to Pump 385312087 -
17 Strap - Motor/Pump Mounting 385880083 -
18 Cam Replacement - Limit Switch 385312088 -
19 Module - Control 7600 385312089 -
20 Valve Assembly - Water (Includes Mounting Screws) 385312090 -
21 Cover - Pedal - White 385311656 -
Cover - Pedal - Bone 385311657 -
22 Cap - Floor Bolt - White 385311654 -
Cap - Floor Bolt - Bone 385311655 -
23 Mounting Kit - Floor Seal & Hardware - White 385311652 650222 $43.15
Mounting Kit - Floor Seal & Hardware - Bone 385311653 -
24 Monitor - Dometic TK w/Float Plate 313002311 -
Monitor - Dometic TK w/Float Cap 313002312 -
* Hardware Kit - Remote Mounting Wht/Bone (Not Shown) 385311022 -
Show More
You May Also Like
Dometic Toilet Vacuum Breaker
STANDARD VACUUM BREAKER KIT
STANDARD VACUUM BREAKER KIT
Replacement vacuum breaker kit for either with or without a water saver. Fits the majority of sealand toilet models.
SKU 650228
$54.82

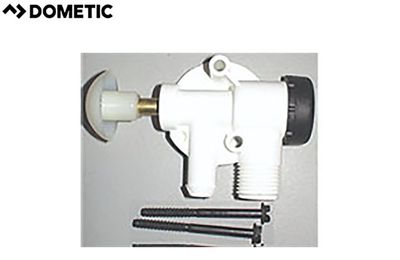

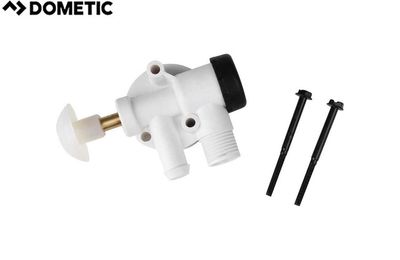

Dometic Toilet Valve
