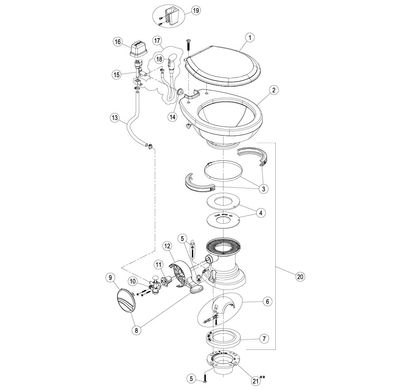

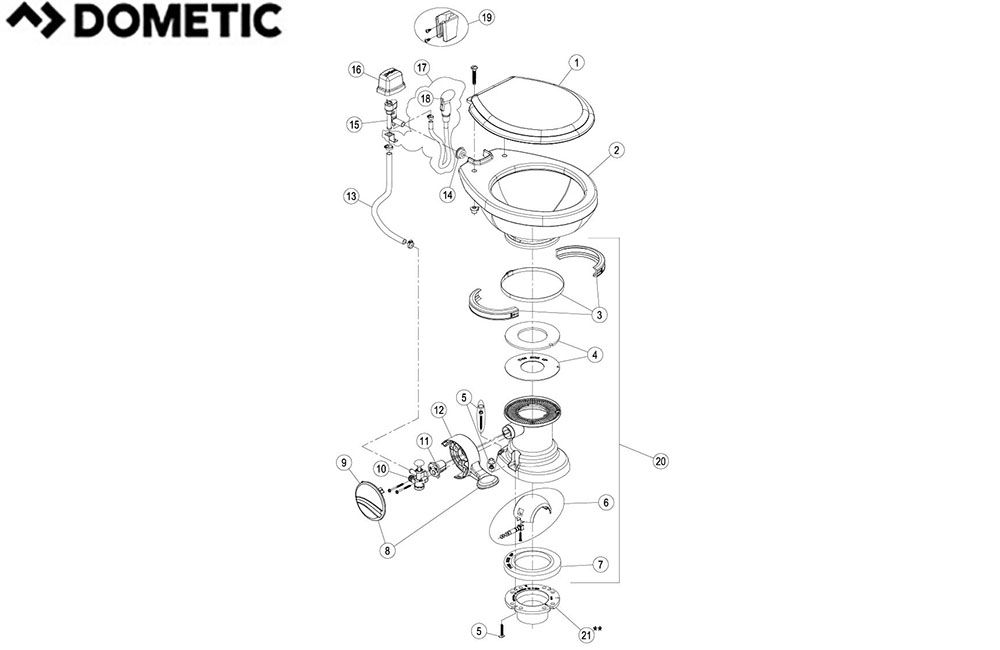

DOMETIC 110 Diagram
+2

DOMETIC 110 SERIES

Home/Store/RV CATALOG/SANITATION/Toilet Illustrations
SKU 996433
$0.00
110
Item
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
DOMETIC 110 SERIES
Home/Store/RV CATALOG/SANITATION/Toilet Illustrations
Product Details
Brand: DOMETIC

# Description MFG # Part # Price
1 Seat & Cover - White 385344089 -
Seat & Cover - Bone 385312114 -
2 Kit - China Bowl 385310791 -
3 Kit - Half Clamp - White 385310025 -
Kit - Band Clamp & Half Clamp 385310048 -
4 Kit - Teflon and Rubber Seal (F/510, 511, 911, 2010, 2011) 385316140 650216 $51.85
Kit - Seal Replacement (No holes for 2001 & Newer) 385311462 600822 $66.89
5 Kit - Mounting - Bone 385310803 -
6 Kit - Ball Shaft & Cartridge (Incl #11) 385310681 650238 $71.98
7 Seal - Floor Flange 385311267 650246 $37.00
8 Pedal & Cover - Bone 385311120 -
Kit - Flush Pedal - Bone 385310762 -
9 Cover - Pedal - Bone 385311180 -
10 Kit - Water Valve 385314349 650180 $58.00
11 Kit - Spring Cartridge 385310683 650243 $34.45
12 Kit - Pedal Cartridge - Bone (Incl items #9, 11) 385311122 -
13 Hose - Bowl Supply - Bone 385340177 -
14 Kit - Sealing Grommet 1/2" 385311164 -
15 Vacuum Breaker - (Used with hand Spray) 385230335 650201 $67.64
Vacuum Breaker - (Without Spray) 385316906 650228 $54.82
16 Kit - Vacuum Breaker Cover - Bone 385310796 -
17 Kit - Vacuum Breaker with Spray (Incl items #14, 15, 18) 385319054 -
18 Kit - Hand Spray - White (Incl item #19) 385311124 -
19 Bracket - Hand Spray (Screws Included) 385230319 -
20 Kit - Base Traveler LT 110/Bone 385310793 -
21 Adapter - Floor Flange (45 Degree Swivel) 385310961 -
Adapter - Floor Flange (45 Degree Swivel) 307344653 -
Spigot - Floor Flange (3") 385343765 -
Flange - Floor (3" MPT) 385345889 -
Socket - Floor Flange (3") 385345892 -
Show More
You May Also Like

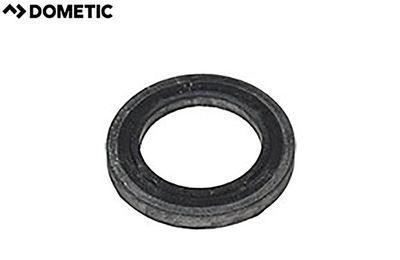

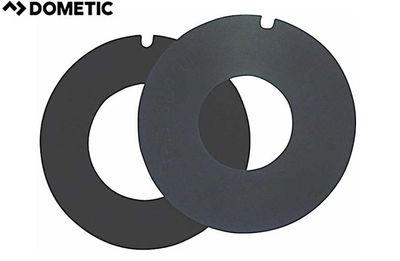

Dometic Toilet Seal Kit
SEAL KIT - REPLACEMENT
SEAL KIT - REPLACEMENT
No Holes, 2001 & Newer (385311462)
SKU 600822
$66.89

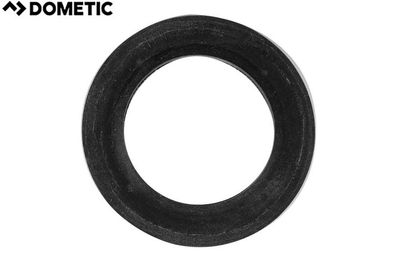

Dometic Toilet Seal
