SUBURBAN SF-30Q
SKU SF-30
$0.00
SF-30
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
SUBURBAN SF-30Q
Product Details
All Suburban Serial Numbers manufactured after January 1990, will be nine digits. The first two (2) digits signify the year of manufacture. The next set of digits, indicate the week of the year and the remaining digits are serial numbers. For Example: Even though numerically higher, 912000060 is lower than serial number 014103973 due to the year of manufacture.

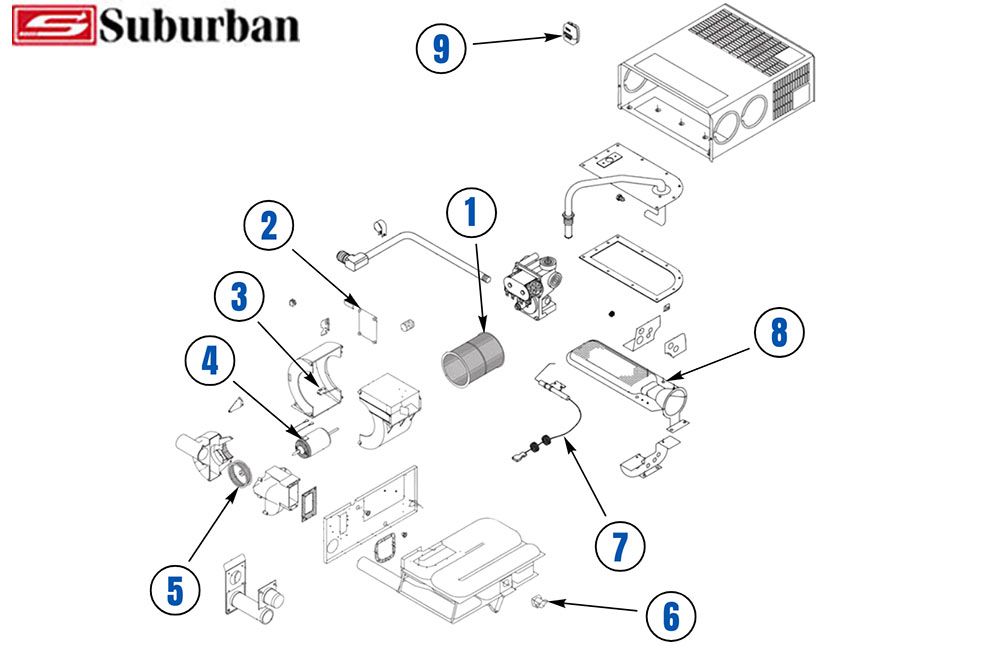

| # | Description | Part # | Price |
| 1 | Wheel - Blower | 350206 | $19.53 |
| 2 | Board - Control | 521099 | $134.76 |
| 3 | Switch - Sail | 525003 | $ 9.03 |
| 4 | Motor - Blower | 521230 | $93.79 |
| 5 | Wheel - Combustion | 521235 | |
| 6 | Switch - Limit | 525006 | $ 7.20 |
| 7 | Ignitor Electrode - (For units with S/N ABOVE 934701426, Ending Serial No 171416095) | 525009 | $36.18 |

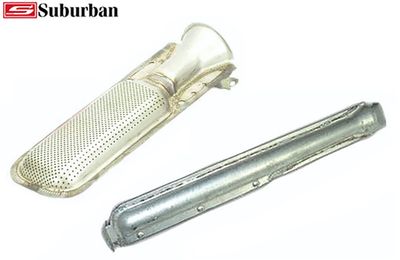

| 8 | Burner Head - | 010865 | |
| 9 | Thermostat - Wall (White) | 161154 | $28.63 |
| Thermostat - Wall (Black) | 161210 | $53.54 | |
| NS | Door - Access (White) | 6258ACW | $68.24 |
| NS | Door - Access (Black) | 6258AEB | $68.24 |
| NS | Furnace Core - Replacement | 2607A | $691.50 |
