SUBURBAN SF-30
Product Details
All Suburban Serial Numbers manufactured after January 1990, will be nine digits. The first two (2) digits signify the year of manufacture. The next set of digits, indicate the week of the year and the remaining digits are serial numbers. For Example: Even though numerically higher, 912000060 is lower than serial number 014103973 due to the year of manufacture.

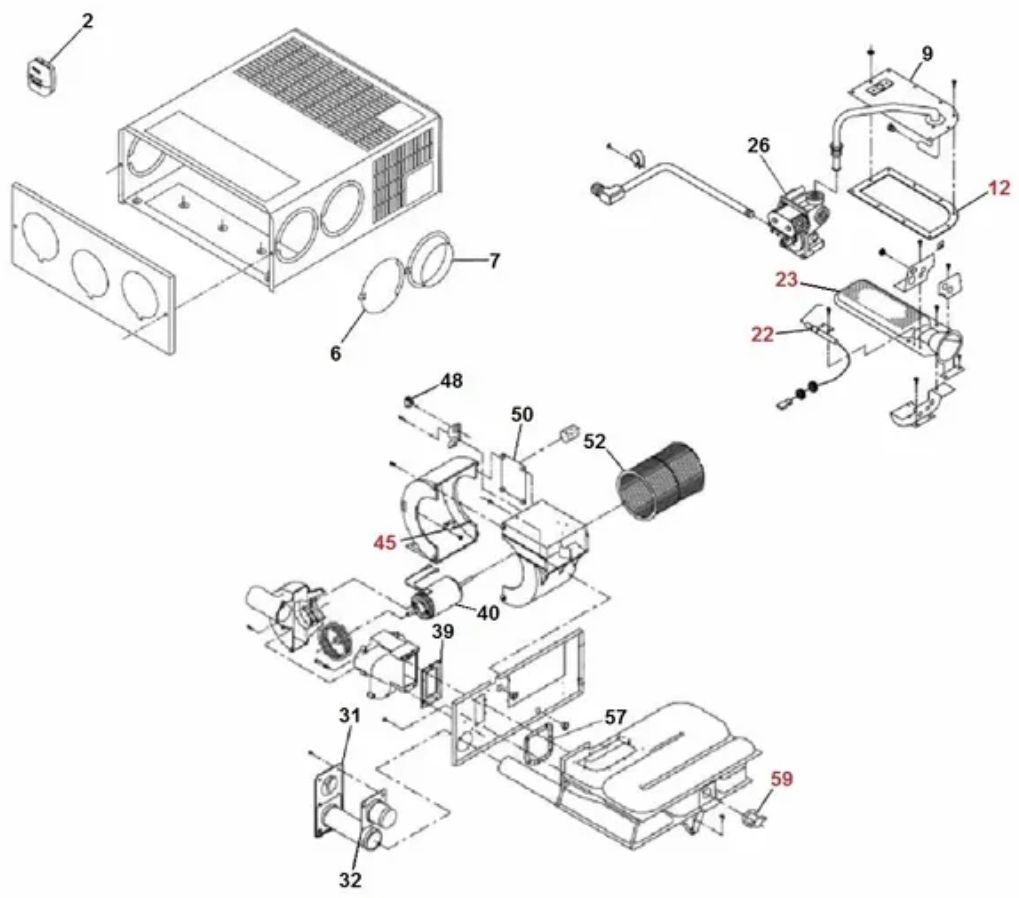

| # | Description | MFG # | Part # | Price |
| 2 | Thermostat - White | 161154 | 161154 | $28.63 |
| Thermostat - Black | 161210 | 161210 | $53.54 | |

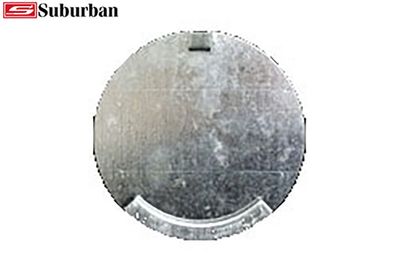

| 6 | Cover - Duct | 050733 | 050733 | $ 2.25 |

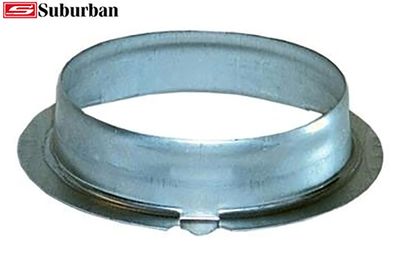

| 7 | Collar - Duct | 050715 | - | - |
| 9 | Manifold Assembly - Above S/N 021206467 | 171596 | - | |
| 11 | Orifice - Below S/N 021206467 | 180214 | - | |
| Orifice - Above S/N 021206467 | 180307 | - | ||
| 12 | Gasket - Burner Access Door (New #525010)(Below S/N 094101431) | 070811 | 525010 | $12.53 |
| Gasket - Burner Access Door (New #525010)(Above S/N 094101431) | 071263 | 525010 | $12.53 | |

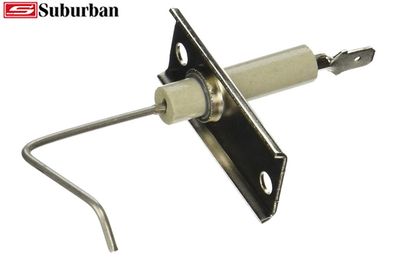

| 22 | Electrode - (Below S/N 921403895) | 231898 | 351109 | $15.65 |
| Electrode - (Between S/N's 921403895 and 934701426) | 232166 | - | ||
| Electrode - (Above S/N 934701426) | 232286 | 525009 | $36.90 | |

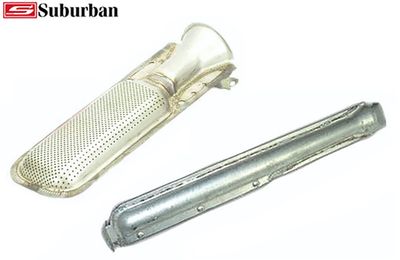

| 23 | Burner Assembly - | 010865 | 350014 | $68.09 |
| 26 | Valve - Gas (Below S/N 921403846) | 161133 | 350831 | $175.93 |
| Valve - Gas (Between S/N's 921403846 and 971303163) | 161070 | - | ||
| Valve - Gas (Above S/N 971303163) | 161122 | 351072 | $49.94 | |
| 31 | Vent Cap & Exhaust Tube - Assembly | 260553 | - | |
| 32 | Tube Assembly - Intake | 051248 | - | |
| 34 | Front Half - Combustion Air Housing Assembly | 390852 | - | |
| 37 | Rear Half - Combustion Air Housing Assembly | 390848 | - | |
| 38 | Wheel - Combustion Air | 350184 | - | |
| 39 | Gasket - Firewall | 071084 | - | |
| 40 | Motor Assembly - (Below S/N 012003742) | 233101 | 233101 | $225.97 |
| Motor Assembly - (Above S/N 012003742) | 232682 | - | - | |
| 42 | Front Half - Room Air Blower Housing Assembly | 390872 | - | |
| 44 | Rear Half - Room Air Blower Housing Assembly | 390851 | - | |
| 45 | Switch - Sail (Below S/N 924201894)(New #525024) | 230509 | 351080 | $10.03 |
| Switch - Sail (Above S/N 924201894)(New #525003) | 232261 | 351090 | $ 5.90 | |
| 48 | Switch - On / Off | 232351 | 232351 | $ 7.45 |
| 50 | Board - Module (Ignition Board) | 521099 | 521099 | $134.76 |

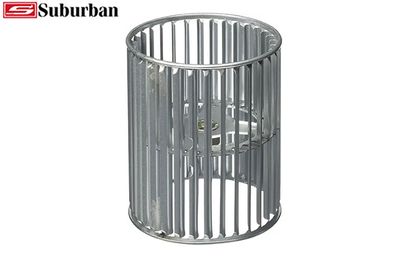

| 52 | Wheel - Room Air Blower | 350129 | 350129 | $48.83 |
| 57 | Gasket - Firewall | 070808 | - | |
| 59 | Switch - Limit (Below S/N 921403896) | 231630 | - | |
| Switch - Limit (Above S/N 921403895)(Ne #525006) | 351083 | - | ||
| NS | Wiring Kit - (to convert to new 3 try ignition board) | 520832 | - | |
| NS | Gasket Kit - Complete | 520799 | - |
