DOMETIC 320 SERIES TOILET
Home/Store/RV CATALOG/SANITATION/Toilet Illustrations
Product Details
Brand: DOMETIC

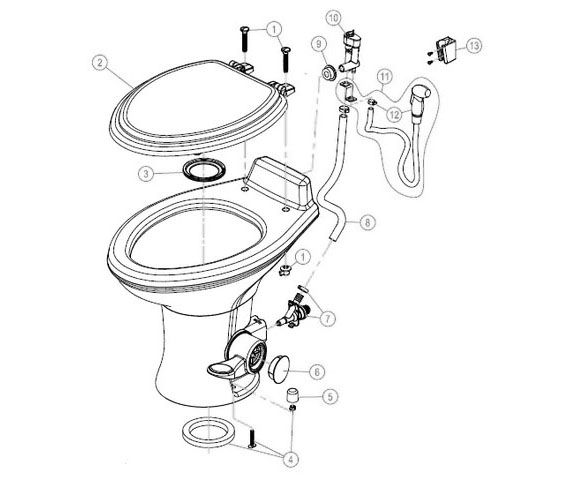

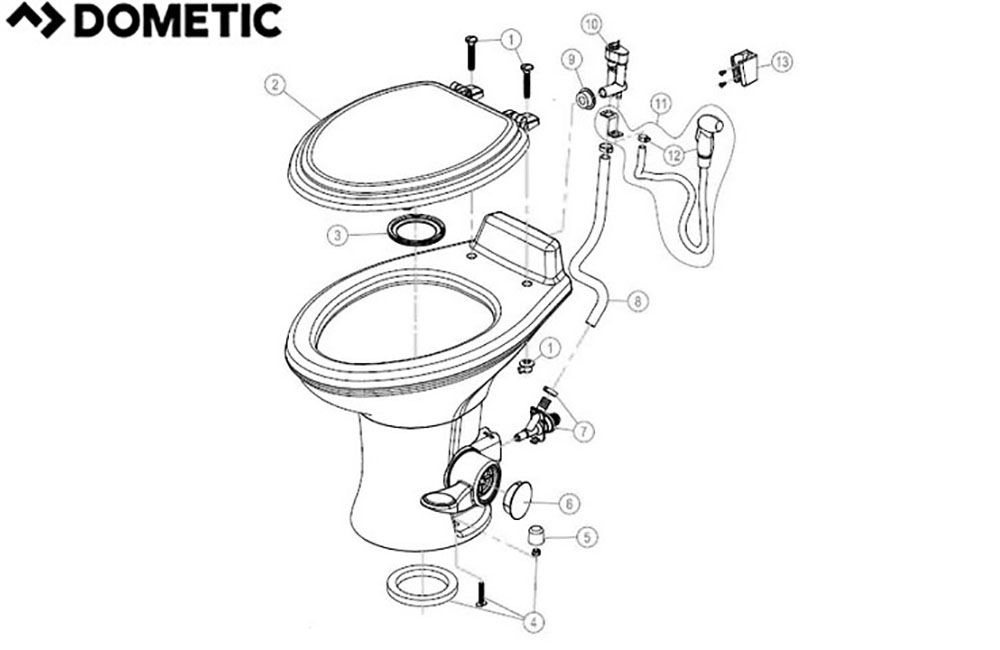

# Description MFG # Part # Price
1 Hardawre - Seat Mounting - White 385311650 -
2 Seat/Cover - Replacement - White 385311863 -
Seat/Cover - Replacement - Bone 385311864 -
3 Kit - Flush Ball Seal 385311658 385311658 $48.28
4 Kit - Mounting Hardware - White 385311652 385311652 $43.15
Kit - Mounting Hardware - Bone 385311653 -
5 Kit - Mounting Hardware Cap - White 385311654 -
Kit - Mounting Hardware Cap - Bone 385311655 -
6 Kit - Pedal Cover - White 385311656 -
Kit - Pedal Cover - Bone 385311657 -
7 Kit - Water Valve 385311641 385311641 $64.38
8 Hose - Bowl Supply - Bone (Includes Clamps) 385340177 -
Hose - Supply - White -Use 385340177 (Includes Clamps) 385345377 -
9 Kit - Sealing Grommet (1/2") 385311164 -
10 Vacuum Breaker - (Used with Hand Spray) (Includes Item #9) 385230335 650201 $67.64
Vacuum Breaker - (Without Spray) (Includes #9) 385316906 650228 $54.82
11 Kit - Vacuum Breaker with Spray (Includes #9) 385319054 -
12 Kit - Hand Spray - White (Includes #13) 38531124 -
13 Bracket - Hand Spray (Screws Included) Use 38511124 385230319 -
Kit - Hand Spray - White 385311124 -
NS Kit - Mounting Adapter - White 385311719 -
NS Kit - Mounting Adapter - Bone 385311720 -
NS Kit - Water Line Extension 385311718 -
NS Kit - Bowl Reinforcement Bracket 385310855 -
NS Kit - Universal Mount 2 Bolt To 4 Bolt - White 385310139 -
NS Kit - Universal Mount 2 Bolt To 4 Bolt - Bone 385310140 -
NS Spigot - Floor Flange (3") 385343765 -
NS Socket - Floor Flange (3") 385345892 -
NS Foot Pedal - Not Replacable Foot Pedal -
