DOMETIC 310 Diagram
+2

DOMETIC 310 SERIES

Home/Store/RV CATALOG/SANITATION/Toilet Illustrations
SKU 996434
$0.00
310
Item
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
DOMETIC 310 SERIES
Home/Store/RV CATALOG/SANITATION/Toilet Illustrations
Product Details
Brand: DOMETIC

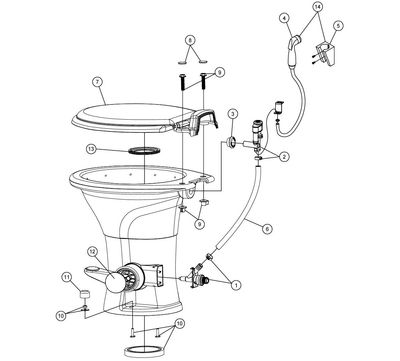

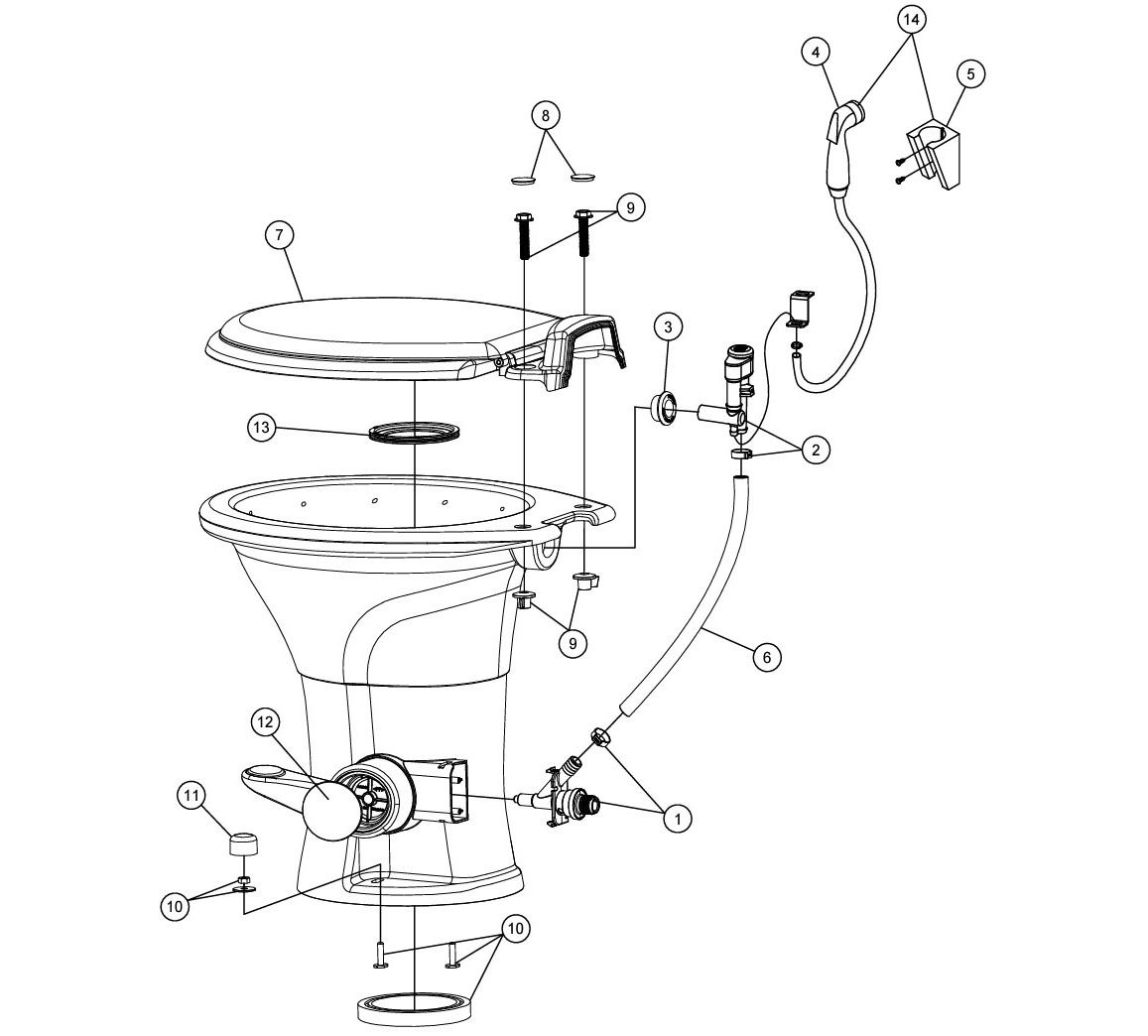

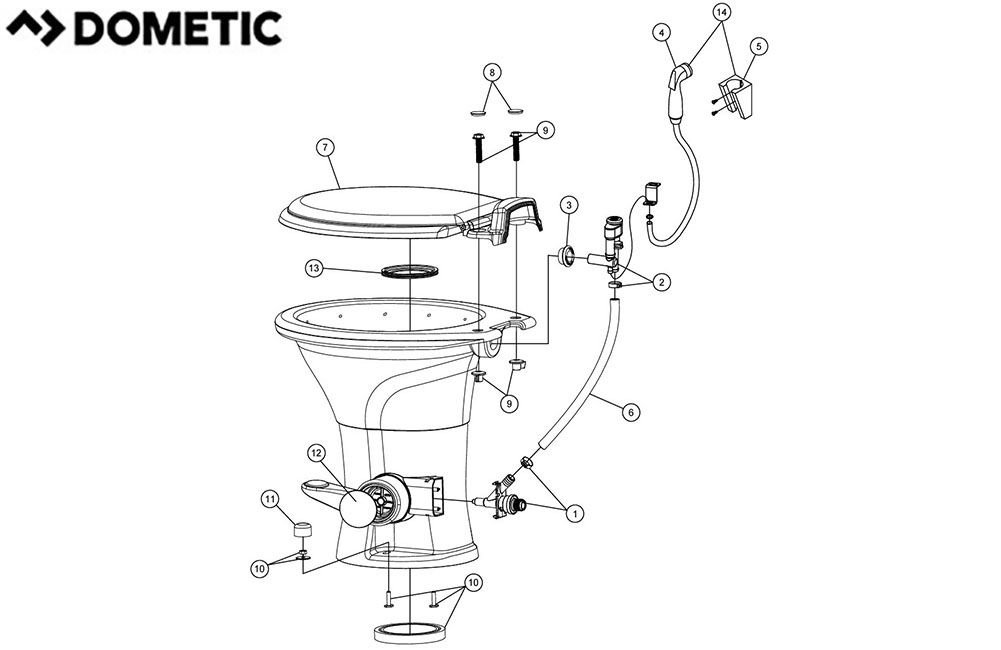

# Description MFG # Part # Price
1 Kit - Water Valve 385311641 385311641 $64.38
2 Kit - Hand Spray VB (Incl 3) 385230335 650201 $67.64
Kit - Vacuum Breaker 385316906 650228 $54.82
3 Kit - Sealing Grommet 1/2" 385311164 -
4 Kit - Vac Break w/Spray-Wht (Incl 2,3,5) 385319054 -
5 Kit - Bracket-Hand Spray 385230319 -
6 Kit - Supply Hose (Bone) 385340177 -
Kit - Supply Hose (White) 385345377 -
7 Kit - Seat/Cvr - White (Incl 8,9) 385311646 -
Kit - Seat/Cvr - Bone (Incl 8,9) 385311647 -
8 Kit - Seat Brkt Covers - White 300 385311648 -
Kit - Seat Brkt Covers - Bone 300 385311649 -
9 Kit - Seat Mtg Hard - White (Incl 8) 385311650 -
Kit - Seat Mtg Hard - Bone (Incl 8) 385311651 -
10 Kit - Mtg Hardware - White (Incl 11) 385311652 385311652 $43.15
Kit - Mtg Hardware - Bone (Incl 11) 385311653 -
11 Kit - Mtg Hard Cap - White 385311654 -
Kit - Mtg Hard Cap - Bone 385311655 -
12 Kit - Pedal Cvr Cap - White 385311656 -
Kit - Pedal Cvr Cap - Bone 385311657 -
13 Kit - Flush Ball Seal 385311658 385311658 $48.28
14 Kit - Hand Spray White (Incl 5) 385311124 -
Show More
You May Also Like

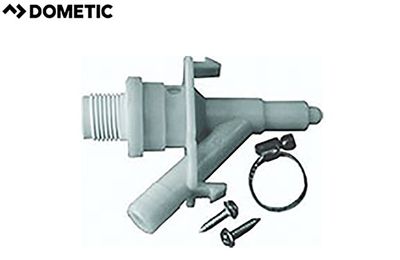

WATER VALVE KIT (300 SERIES)
WATER VALVE KIT (300 SERIES)
WATER VALVE KIT (300 SERIES)
Water valve kit for 310 Dometic and Sealand toilet.
SKU 385311641
$64.38

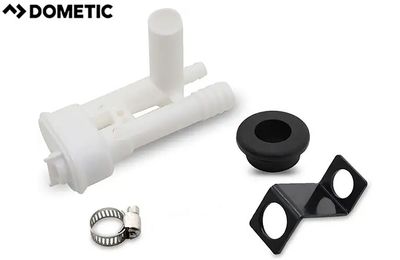

Dometic Toilet Vacuum Breaker
TRAVELER LITE VACUUM BREAKER
TRAVELER LITE VACUUM BREAKER
Traveler Lite vacuum breaker kit w/Spray.
SKU 650201
$67.64

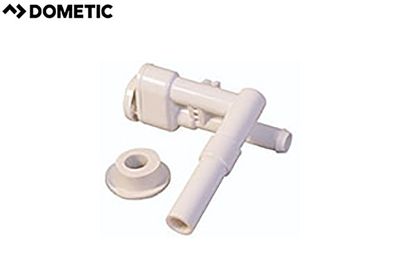

Dometic Toilet Vacuum Breaker
STANDARD VACUUM BREAKER KIT
STANDARD VACUUM BREAKER KIT
Replacement vacuum breaker kit for either with or without a water saver. Fits the majority of sealand toilet models.
SKU 650228
$54.82

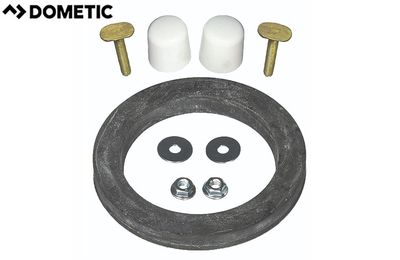

MOUNTING HARDWARE KIT (300 SERIES)
MOUNTING HARDWARE KIT (300 SERIES)
MOUNTING HARDWARE KIT (300 SERIES)
Mounting hardware and seal for 310 series Dometic toilets. Includes: Seal (x1), T-Bolts (x2), Nuts (x2), Washers (x2) and Caps (x2).
SKU 385311652
$43.15

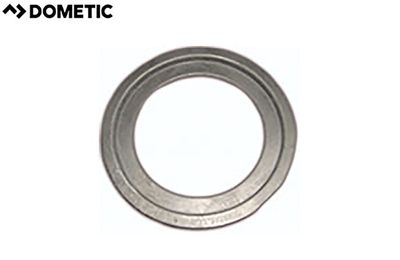

FLUSH BALL SEAL KIT (300 SERIES)
FLUSH BALL SEAL KIT (300 SERIES)
FLUSH BALL SEAL KIT (300 SERIES)
Flush Ball Seal Kit For 310 Sealand. Model B bond-on adapter.
SKU 385311658
$48.28
