DOMETIC 300 Diagram
+2

DOMETIC 300 SERIES

Home/Store/RV CATALOG/SANITATION/Toilet Illustrations
SKU 300
$0.00
300
Item
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
DOMETIC 300 SERIES
Home/Store/RV CATALOG/SANITATION/Toilet Illustrations
Product Details
Brand: DOMETIC

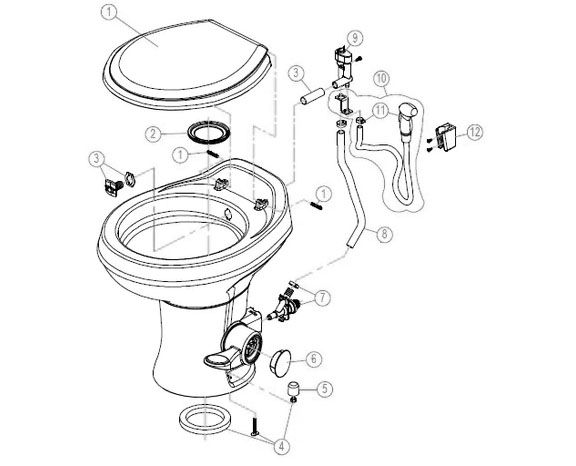

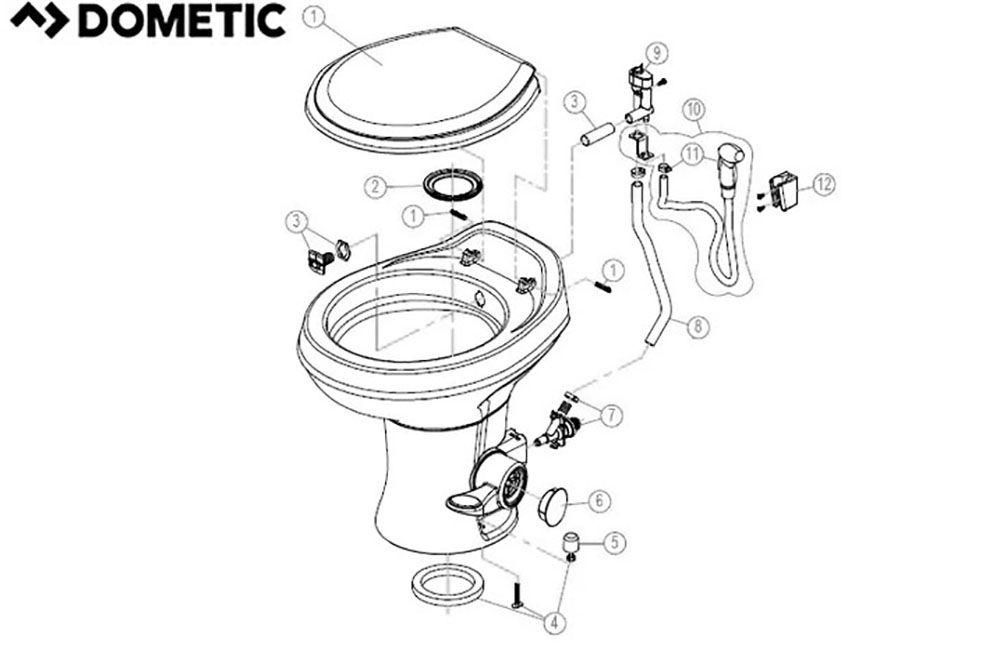

# Description MFG # Part # Price
1 Seat & Cover - White (Includes Mounting Hardware) 385311930 -
Seat & Cover - Bone (Includes Mounting Hardware) 385311931 -
2 Kit - Flush Ball Seal 385311658 650240 $48.28
3 Kit - Bowl Wash Spray Nozzle - White 385311932 650244 $17.74
Kit - Bowl Wash Spray Nozzle - Bone 385311933 -
4 Kit - Mounting Hardware - White (Includes Item #5) 385311652 650222 $43.15
Kit - Mounting Hardware - Bone (Includes Item #5) 385311653 -
5 Kit - Mounting Hardware Cap - White 385311654 -
Kit - Mounting Hardware Cap - White 385311655 -
6 Kit - Pedal Cover - White 385311656 -
Kit - Pedal Cover - Bone 385311657 -
7 Kit - Water Valve 385311641 650248 $64.38
8 Hose - Bowl Supply - Bone 385340177 -
Hose - Bowl Supply - White (Use 385340177) 385310762 -
9 Vacuum Breaker - (Used With Hand Spray) 385230335 650201 $67.64
Vacuum Breaker - Without Spray 385316906 650228 $54.82
10 Kit - Vacuum Breaker With Spray (Iincludes Items 9 & 11) 385319054 -
11 Kit - Hand Spray - White (Includes Item 12) 385311124 -
12 Bracket - Hand Spray (Screws Included) Use 385311124 385230319 -
Kit - Hand Spray - White 385311124 -
NS Kit - Mounting Adapter - White 385311719 -
NS Kit - Mounting Adapter - Bone 385311720 -
NS Kit - Water Line Extension 385311718 -
NS Foot Pedal - Not Replacable Foot Pedal -
Show More
You May Also Like

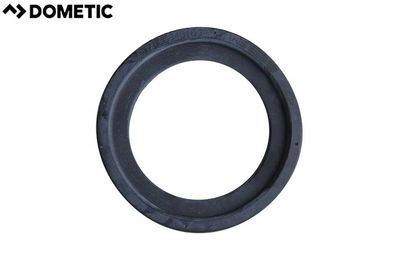

Dometic Flush Ball Seal
SEAL - FLUSH BALL
SEAL - FLUSH BALL
Flush Ball Seal Kit For 310 Sealand. Model B bond-on adapter.
SKU 650240
$48.28

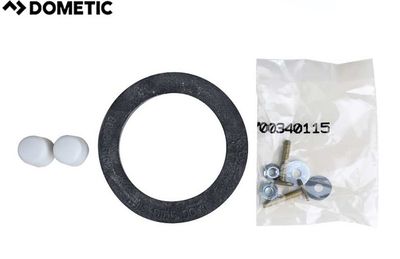

Dometic Toilet Mounting Kit
MOUNTING KIT - TOILET
MOUNTING KIT - TOILET
Mounting hardware and seal for 310 series Dometic toilets. Includes: Seal (x1), T-Bolts (x2), Nuts (x2), Washers (x2) and Caps (x2).
SKU 650222
$43.15

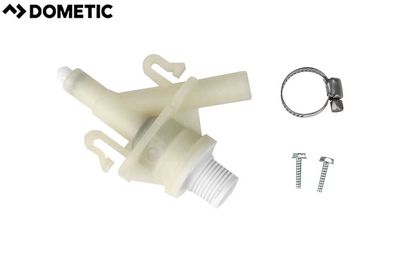

Dometic Toilet Valve
VALVE KIT - TOILET WATER
VALVE KIT - TOILET WATER
Water valve kit for 310 Dometic and Sealand toilet.
SKU 650248
$64.38

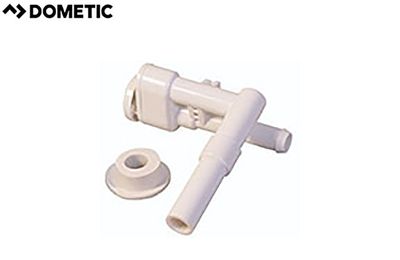

Dometic Toilet Vacuum Breaker
