RG7 TWO-STAGE - REVOLV FURNACE
+2

RG7 TWO-STAGE - REVOLV FURNACE

Home/Store/MH CATALOG/HEATING & COOLING/COLEMAN / REVOLV ILLUSTRATIONS
SKU RG7TWO
$0.00
RG7D45*4(T), RG7D60*4(T), RG7D72*4(T)
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
RG7 TWO-STAGE - REVOLV FURNACE
Home/Store/MH CATALOG/HEATING & COOLING/COLEMAN / REVOLV ILLUSTRATIONS
Product Details

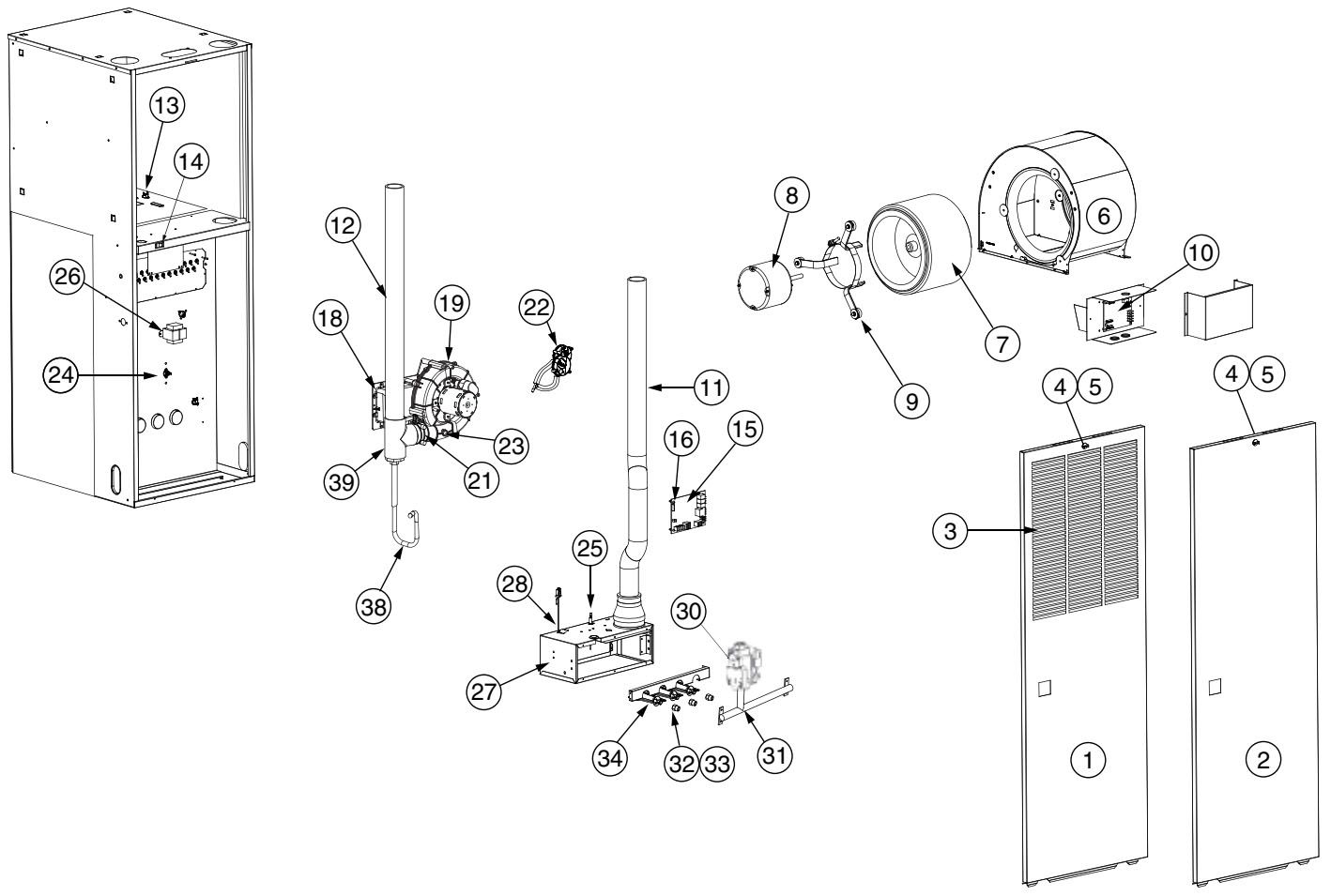

# DESCRIPTION RG7D45*4(T) RG7D60*4(T) RG7D72*4(T) PART# PRICE
1 Door Assembly - Louvered (Front Return Models) 922094 922094 922094 -
2 Door Assembly - Non-Louvered (Top Return Models) 922095 922095 922095 -
3 Filter - (Front Return Models) 669779 669779 669779 -
4 Latch - Door 618107 618107 618107 233052 $20.42
5 Fastener - Door Latch 606317 606317 606317 -
6 Blower Assembly - 922015 922015 922015 -
7 Wheel - Blower 667258 667258 667258 230257 $107.01
8 Motor - Blower 622636 622636 622636 233150 $439.54
9 Mount Kit - Blower Motor 904951 904951 904951 -
10 Board - Blower Control 922016 922016 922016 -
11 Pipe - Combustion Air Inlet 664645 664645 664645 -
12 Pipe - Vent 664644 664644 664644 -
13 Limit - Blower Deck 626602 626602 626602 233153 $ 9.26
14 Switch - Door 632337 632337 632337 233056 $ 7.33
15 Board - Control 920916 920916 920916 -
16 Fuse - 632261 632261 632261 233102 $10.21
17 Heat Exchanger - (Not Shown) 921597 921597 - 233175 $898.48
Heat Exchanger - (Not Shown) - - 921598 233176 $894.93
18 Outlet - Header Box 904802 904802 904802 -
19 Inducer Motor - With Gasket 904799 904799 904799 -
20 Orifice - Inducer (Not Shown) 669927 - - 233156 $11.20
Orifice - Inducer (Not Shown) - 669749 - 233157 $10.21
Orifice - Inducer (Not Shown) - - 669712 233158 $ 6.78
21 Drain Assembly - Inline 664435 664435 664435 -
22 Switch - Pressure 632565 - 632565 -
Switch - Pressure - 632657 - -
23 Limit - Vent 626599 626599 626599 233162 $13.89
24 Limit - Main Air 626601 626601 - 233163 $ 9.26
Limit - Main Air - - 626612 238192 12.35
25 Limit - Rollout 626608 626608 626608 233170 $ 7.73
26 Transformer - 622341 622341 622341 233166 $29.42
27 Burner Box - Assembly 922017 922018 922019 -
28 Igniter - 632625 632625 632625 233167 $65.47
29 Sensor - Flame (Not Shown) 632316 632316 632316 102880 $28.14
30 Gas Valve - 624787 624787 624787 -
31 Manifold - 664639 664639 664640 -
32 Orifice - Natural 661049 - - 233118 $12.08
Orifice - Natural - 661045 - 233080 $13.14
Orifice - Natural - - 661046 -
33 Orifice - LP 661078 - - -
Orifice - LP - 661055 - -
Orifice - LP - - 661079 -
34 Burner - Inshot 661135 661135 661135 233045 $15.90
35 View Port - Burner 632216 632216 632216 -
36 Drain Tube - Soft, 23" (Not Shown) 664434 664434 664434 -
37 Drain Tube - Soft 42" (Not Shown) 664278 664278 664278 -
38 Drain Tube - Hard "J" (Not Shown) 663706 663706 663706 -
39 Tee - Vent 618060 618060 618060 -
40 Hose - High Temp (Not Shown) 263967 263967 263967 -
41 Set of Wires - (Not Shown) M0089701 M0089701 M0089701 -
42 Door Assembly - Coil (Not Shown) 903094 903094 903094 239844 $91.28
