RG1D SERIES - REVOLV FURNACE

Name: RG1D SERIES - REVOLV FURNACE
SKU: RG1D
Availability: InStock

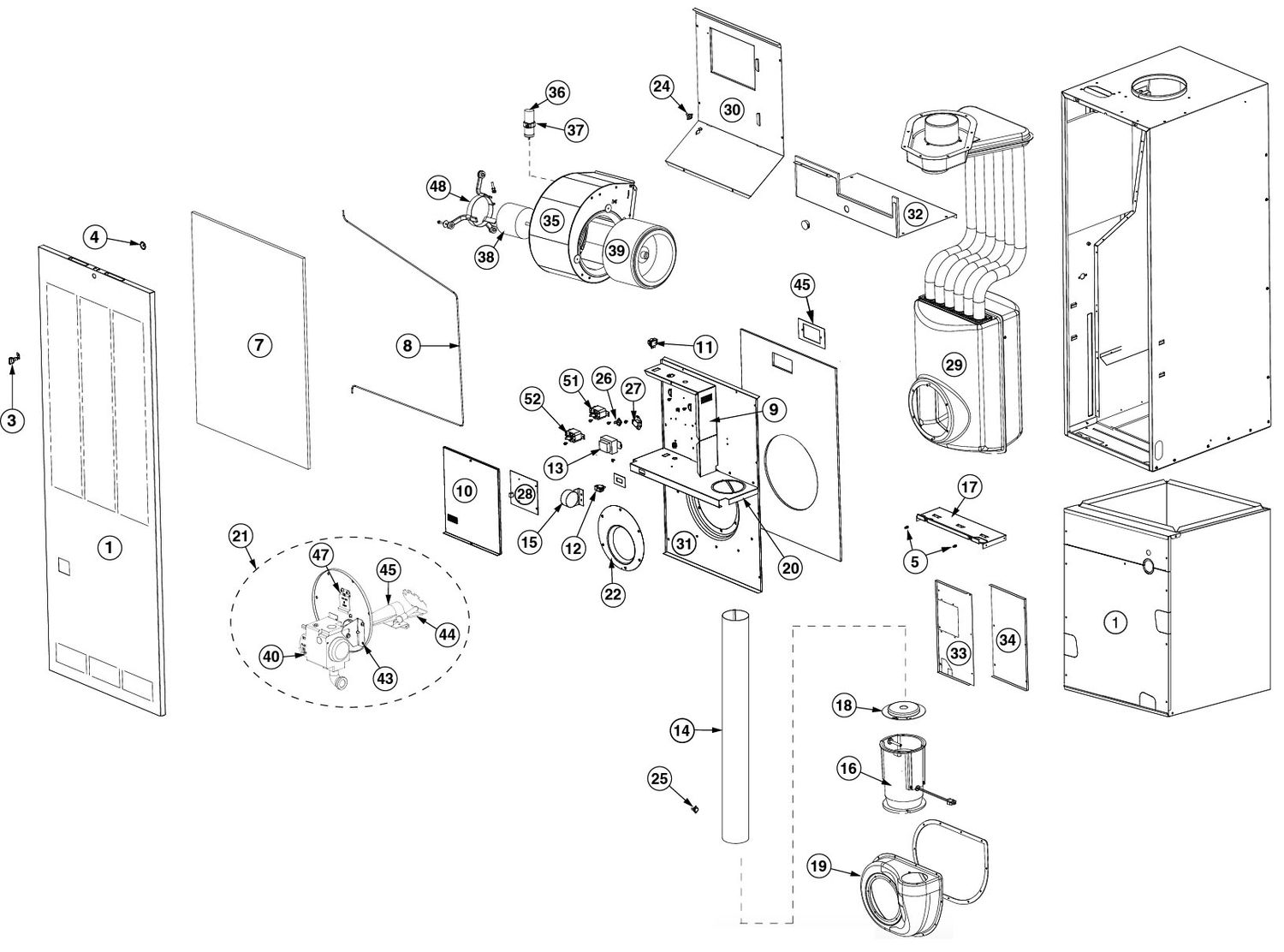

Home/Store/MH CATALOG/HEATING & COOLING/COLEMAN / REVOLV ILLUSTRATIONS

SKU RG1D

$0.00

RG1D56*3, RG1D70*3, RG1D77*3, RG1D90*3, RG1D56*4, RG1D70*4, RG1D77*4, RG1D90*4

Available Components

(1) DOOR - Louvered (White) 233050

(2) DOOR - Coil (White) 239844

(3) PAWL LATCH - 233052

(5) STRIKE - Door - 231281

(6) LATCH - Door (Not Shown) 231280

(7) FILTER - Air P-2028

(8) RETAINER WIRE - Filter - 233055

(11) SWITCH - On/Off 233056

(13) TRANSORFMER - 233058

(15) SWITCH - Pressure 233048

(16) BLOWER ASM - Combustion 233047

(23) GASKET KIT - (Not Shown) 233049

(24) LIMIT AUXILIARY - 233060

(25) FLOW PROBE - Replacement 233043

(26) LIMIT - Air Temperature 233065

(27) CONTROL BOARD - 233089

(28) INTEGRATED CONTROL - 233089

(29) HEAT EXCHANGER - 233090

(29) HEAT EXCHANGER - 233104

(38) BLOWER MOTOR - 233103

(38) BLOWER MOTOR - 233071

(39) BLOWER WHEEL - 231026

(40) GAS VALVE - (Honeywell) 233105

(41) ORIFICE - Natural Gas (Not Shown) 233076

(41) ORIFICE - Natural Gas (Not Shown) 233077

(41) ORIFICE - Natural Gas (Not Shown) 233078

(41) ORIFICE - Natural Gas (Not Shown) 233079

(41) ORIFICE - LP Gas (Not Shown) 233080

(41) ORIFICE - LP Gas (Not Shown) 233081

(41) ORIFICE - LP Gas (Not Shown) 233082

(41) ORIFICE - LP Gas (Not Shown) 233083

(44) IGNITOR - (Not Shown) 233092

(49) FUSE - (Not Shown) 233102

RG1D SERIES - REVOLV FURNACE

Home/Store/MH CATALOG/HEATING & COOLING/COLEMAN / REVOLV ILLUSTRATIONS

Product Details

#	DESCRIPTION	RG1D56*3	RG1D70*3	RG1D77*3	RG1D90*3	RG1D56*4	RG1D70*4	RG1D77*4	RG1D90*4	PART #	PRICE
1	Door - Louvered (White)	903407	903407	903407	903407	903407	903407	903407	903407	233050	$180.98
2	Door - Coil (White)	903094	903094	903094	903094	903094	903094	903094	903094	239844	$91.28
3	Pawl Latch	618107	618107	618107	618107	618107	618107	618107	618107	233052	$20.42
4	Fastener - Pawl Latch	606317	606317	606317	606317	606317	606317	606317	606317	-
5	Strike - Door	668905	668905	668905	668905	668905	668905	668905	668905	231281	$ 5.84
6	Latch - Door (Not Shown)	668420	668420	668420	668420	668420	668420	668420	668420	231280	$ 6.53
7	Filter - Air	669064	669064	669064	669064	669064	669064	669064	669064	P-2028	$ 8.33
8	Retainer Wire - Filter	669065	669065	669065	669065	669065	669065	669065	669065	233055	$21.92
9	Control Box	386720	386720	386720	386720	386720	386720	386720	386720	-
10	Cover - Control Box	264840	264840	264840	264840	264840	264840	264840	264840	-
11	Switch - On/Off	632337	632337	632337	632337	632337	632337	632337	632337	233056	$ 7.33
12	Burner Spud - (Not Shown)	663699	663699	663699	663699	663699	663699	663699	663699	-
13	Transformer	621807	621807	621807	621807	621807	621807	621807	621807	233058	$30.16
14	Air Pipe	387210	387210	387210	387210	387210	387210	387210	387210	-
15	Switch - Pressure	632676	632676	632676	632676	632676	632676	632676	632676	233048	$34.86
16	Blower Asm - Combustion	903404	903404	903404	903404	903404	903404	903404	903404	233047	$151.86
17	Shelf Divider	355050	355050	355050	355050	355050	355050	355050	355050	-
18	Flange - Air Orifice	263871	263872	263873	263875	263871	263872	263873	263875	-
19	Lower Air Box	D06120	D06123	D06125	D06127	D06129	D06131	D06133	D06135	-
20	Close-off Shelf	385280	385280	385280	385280	385280	385280	385280	385280	-
21	Burner - (less Orifice)	903406	903406	903406	903406	903406	903406	903406	903406	-
22	Plate - Entry-Gas	383610	383610	383610	383610	383610	383610	383610	383610	-
23	Gasket Kit - (Not Shown)	730534	730534	730534	730534	730534	730534	730534	730534	233049	$53.98
24	Limit Auxillary	626472	626472	626472	626472	626472	626472	626472	626472	233060	$12.38
25	Flow Probe - Replacement	669292R	669292R	669292R	669292R	669292R	669292R	669292R	669292R	233043	$11.68
26	Limit - Air Temperature	626469	626469	626469	626469	626469	626469	626469	626469	233065	$13.98
27	Control Board -	624640	624640	624640	624640	624640	624640	624640	624640	233089	$205.36
28	Integrated Control	903429	903429	903429	903429	903429	903429	903429	903429	233089	$205.36
29	Heat Exchanger Heat Exchanger Heat Exchanger	903418 - -	- 903419 -	- 903419 -	- - 903420	903418 - -	- 903419 -	- 903419 -	- - 903420	233090 233104 -	$986.93 $1091.65
30	Blower Deck	495380	495380	495380	495380	495380	495380	495380	495380	-
31	Air Casing	265010	265010	265010	265010	265010	265010	265010	265010	-
32	Upper Partition	387220	387220	387220	387220	387220	387220	387220	387220	-
33	Close-off Plate - Right	355490	355490	355490	355490	355490	355490	355490	355490	-
34	Close-off Plate - Left	387220	387220	387220	387220	387220	387220	387220	387220	-
35	Blower Asm Blower Asm	903773 -	903773 -	903773 -	903773 -	- 903413	- 903413	- 903413	- 903413	-
36	Capacitor-	622545	622545	622545	622545	622545	622545	622545	622545	-
37	Capacitor Strap	285934	285934	285934	285934	285934	285934	285934	285934	-
38	Blower Motor	903774	903774	903774	903774	-	-	-	-	233103	$278.75
38	Blower Motor	-	-	-	-	903433	903433	903433	903433	233071	$429.07
39	Blower Wheel	667037	667037	667037	667037	-	-	-	-	231026	$101.92
39	Blower Wheel	-	-	-	-	337258	337258	337258	337258	-
40	Gas Valve - (Honeywell)	624610	624610	624610	624610	624610	624610	624610	624610	233105	$244.37
41	Orifice - Natural Gas (Not Shown)	661029 -	-	-	-	661029	-	-	-	233076	$13.14
	Orifice - Natural Gas (Not Shown)	-	661024	-	-	-	661024	-	-	233077	$12.08
	Orifice - Natural Gas (Not Shown)	-	-	661021	-	-	-	661021	-	233078	$12.27
	Orifice - Natural Gas (Not Shown)	-	-	-	661017	-	-	-	661017	233079	$12.08
42	Orifice - LP Gas (Not Shown)	661045 -	-	-	-	661045	-	-	-	233080	$13.14
	Orifice - LP Gas (Not Shown)	-	661042	-	-	-	661042	-	-	233081	$12.08
	Orifice - LP Gas (Not Shown)	-	-	661040	-	-	-	661040	-	233082	$12.08
	Orifice - LP Gas (Not Shown)	-	-	-	661036	-	-	-	661036	233083	$12.19
43	Support - Valve (Honeywell)	386460	386460	386460	386460	386460	386460	386460	386460	-
44	Ignitor - (Not Shown)	632313	632313	632313	632313	632313	632313	632313	632313	233092	$64.43
45	Shield - Insulation Jacket (Not Shown)	264542	264542	264542	264542	264542	264542	264542	264542	-
46	Elbow Assy. - Honeywell (Not Shown)	624612	624612	624612	624612	624612	624612	624612	624612	-
47	Door - Observation	264080	264080	264080	264080	264080	264080	264080	264080	-
48	Motor Mount - Kit (4 Ton Unit)	---	---	---	---	903489	903489	903489	903489	-
49	Fuse - (Not Shown)	632261	632261	632261	632261	632261	632261	632261	632261	233102	$10.21
50	Inshot Burner -	660886R	660886R	660886R	660886R	660886R	660886R	660886R	660886R	-
