PRESIDENTIAL III - 7900 SERIES
SKU PRESIII
$0.00
7956, 7966, 7970, 7975, 7995
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
PRESIDENTIAL III - 7900 SERIES
Product Details
Brand: COLEMAN

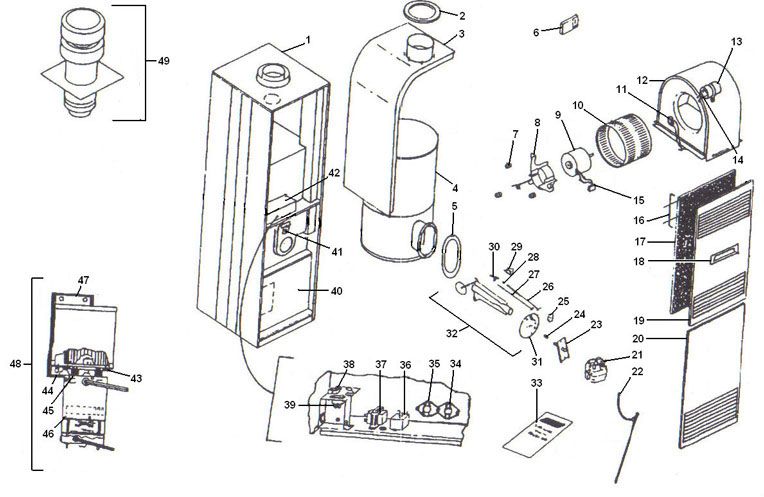

| # | DESCRIPTION | QTY | USED ON MODEL |
MFG# | PART# | PRICE |
| 1 | Casing Top | 1 | All | 7945-5721 | - | |
| 2 | Gasket Pkg. - Heat Exchanger | 1 | All | 7945-3011 | - | |
| 3 | See Heat Exchanger - (Item #4) | - | ||||
| 4 | Heat Exchanger - (w/Gaskets) Heat Exchanger - (w/Gaskets) Heat Exchanger - (w/Gaskets) Heat Exchanger - (w/Gaskets) |
1 1 1 1 |
7956 7966,7970 7975 7995 |
7956-5751 7966-5751 7975-5751 7995-5771 |
- - - - |
|
| 5 | Gasket Pkg. - Heat Exchanger | 1 | All | 7945-3011 | - | |
| 6 | Thermostat - (Adj. Ant.) | 1 | All | 7656-3951 | - | |
| 7* | Mount - Motor (3/Pkg.) | 1 | All | 7670-3551 | 232276 | $41.38 |
| 8* | Clamp - Motor Clamp - Motor (S.N. #02870000 & Below) Clamp - Motor (S.N. #03870000 & Above) |
1 1 1 |
7956,7966 7970,7975 7995 7995 |
7670-6391 7700-5391 7670-6391 |
- - - |
|
| 9* | Motor - This motor is a new "high efficiency" replacement. It is a permanent split capacitor (PCS) design for the previously produced shaded pole design. This motor will use less electricity (lower AMP draw) but produce enough torque for the fan to do the work that is required. To make installation similar, we have provided the capacitor with the motor so that you only have to work with similar leads to the original motor. |
1 | 7956,7966, 7970,7975 |
7966-311P | 232258 | $315.40 |
| Motor - (1/10 HP-880 RPM 4.0A.) (FASCO #7151-3328) (WEST. #E322P291)(McMILL. #MS1386) Replaced by 232258 |
1 | 7956 | 7945-3119 | - | ||
| Motor - (1/8 HP-1100 RPM-8.2A)(WEST. #322P289) Replaced by 232258 |
1 | 7966,7970 7975 |
7966-3119 | - | ||
| Motor - (S.N. #02870000 & Below) (1/4 HP-1050 RPM-10.0A.)(WEST. #321P636) |
1 | 7995 | 7710-3119 | - | ||
| Motor - (S.N. #03870000 & Above) (1/4 HP-1050 RPM-6.0A)(WEST. #322P890) |
1 | 7995 | 1468-2129 | - | ||
| 10* | Blower Wheel - (9-1/2 x 7-1/8 x 1/2) (TORIN #CM916-704-5)(LAU #027855-09) (MORR. #03-32013-0) |
1 | 7956 | 1472-2791 | - | |
| Blower Wheel - (10-5/8 x 7-1/8 x 1/2) (TORIN #CM1020-704-5)(LAU #027855-10) (MORR. #03-42001-0) |
1 | 7966,7970 7975 |
1472-2751 | - | ||
| Blower Wheel - (10-5/8 x 7-1/8 x 1/2) (S.N. #02870000 & Below) (TORIN #CM1020-704)(LAU #027855-13) (MORR. #03-42014-0) |
1 | 7995 | 1472-2801 | - | ||
| Blower Wheel - (10-5/8 x 7-1/8 x 1/2) (S.N. #03870000 & Above) (TORIN #CM1020-704-5)(LAU #027855-10) (MORR. #03-42001-0) |
1 | 7995 | 1472-2751 | - | ||
| 11* | Limit Switch - (Upper)(Open 180°- Manual Reset) (TI #20615L5-A29) (TOD #60T14) (EX #404-105) |
1 | All | 7624A3951 | 232111 | $25.06 |
| 12* | Scroll Scorll Scroll (S.N. #02870000 & Below) Scroll (S.N. #03870000 & Above) |
1 1 1 1 |
7956 7966,7970 7975 7995 7995 |
7945A530 7966A530 7995A530 7966A530 |
- - - - |
|
| 13* | Run Capacitor - (7.5 Mfd. - 370V.) | 1 | 7995 | 1499-4461 | 102114 | $ 3.34 |
| 14* | Cover - Capacitor | 1 | All | 2632-180 | - | |
| 15* | Plug - Connector | 1 | All | 7680-348 | - | |
| 16* | Retainer - Filter | 1 | All | 7670-3451 | R-20 | $ 4.39 |
| 17* | Filter - (19-3/8 x 35-3/4 x 1/4) | 1 | All | 7660-3401 | F-20 | $11.60 |
| Filter Kit - (Includes filter and two retainers) | 1 | All | K-20 | $22.24 | ||
| 18 | Decal - Coleman | 1 | All | 1539A0341 | - | |
| 19 | Panel - Upper | 1 | All | 7670A5231 | - | |
| 20 | Panel - Lower | 1 | All | 7670A5241 | - | |
| 21 | Gas Valve - (24V. .23 Amp.) | 1 | All | 7656-336P | 232243 | $557.60 |
| 22 | Lighter Rod - (with Chain) | 1 | All | 7660-190 | - | |
| 23 | Bracket - Valve (Less Orifice) | 1 | All | 7945B151 | - | |
| 24 | Orifice - Burner (See Chart) | 1 | All | - | ||
| 25 | Seal Plate | 1 | All | 7945-166 | - | |
| 26 | Pilot Tube - (1/4" Steel) | 1 | All | 7945-1671 | - | |
| 27 | Thermocouple - (24") | 1 | All | 2631-3481 | 231350 | $40.50 |
| 28 | - | |||||
| 29 | Shield - Pilot | 1 | All | 7945-1701 | - | |
| 30 | Pilot Burner - (w/Pilot Spud) | 1 | All | 9880-0161 | - | |
| 31 | Plate - Mounting (w/Gasket) | 1 | All | 7945-1631 | - | |
| 32 | Burner Assy. - (Less Gas Valve) | 1 | All | 7956-5851 | - | |
| 33 | Customer Envelope | 1 | All | 1972E461 | - | |
| 34 | Limit Switch - (Lower 0-140° C-110°) | 1 | 7956 | 7945-3281 | 232287 | $26.94 |
| Limit Switch - (Lower 0-145° C-115°) | 1 | 7966,7970 | 7970-3281 | - | ||
| Limit Switch - (Lower 0-150° C-120°) | 1 | 7995 | 7995-3281 | - | ||
| 35 | Fan Switch - (C-105° - 0-85°) | 1 | 7956 | 7956-3351 | - | |
| Fan Switch - (C-110° - 0-90°) | 1 | 7966,7070, 7975 |
7660-3281 | - | ||
| Fan Switch - (C-115° - 0-95°) | 1 | 7995 | 7995-3351 | - | ||
| 36 | Booster Relay - (24V. - SPST - 4 Terminal) | 1 | All | 8665-5701 | - | |
| 37 | Transformer - (115 - 24V. 115 VA) | 1 | All | 7945-3551 | - | |
| 38 | Connector Cap Assy. | 1 | All | 7945B555 | - | |
| 39 | Switch - Rocker On-Off | 1 | All | 7681-3301 | - | |
| 40 | Panel - (Coil Cavity 19-13/16") | 1 | All | 7656B1861 | - | |
| 41 | Plate - Observation (w/Gasket) Gasket - Observation Plate |
1 1 |
All All |
7706C5491 7706A3171 |
- - |
|
| 42 | Cover - Control Box | 1 | All | 7945-1351 | - | |
| 43 | Plate - Mount | 1 | 7995 | 8865A1471 | - | |
| 44 | Impellor - (3-13/16 x 1-7/8 x 3/8) | 1 | 7995 | 8865-3611 | - | |
| 45 | Mount - Motor (Rubber 4/Pkg.) | 1 | 7995 | 8865B1281 | - | |
| 46 | Booster Motor - (3000 RPM) | 1 | 7995 | 7995-3169 | 232257 | $311.38 |
| 47 | Gasket - Booster | 1 | 7995 | 7995A386 | - | |
| 48 | Booster Assy. - (Incl. Items 43-47) | 1 | 7995 | 7995-6451 | - | |
| 49 | Roof Jack | - |
