PRESIDENTIAL III - 7900B SERIES

Home/Store/MH CATALOG/HEATING & COOLING/COLEMAN / REVOLV ILLUSTRATIONS
SKU 7900B
$0.00
7956B, 7966B, 7970B, 7975B, 7995B
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
PRESIDENTIAL III - 7900B SERIES
Home/Store/MH CATALOG/HEATING & COOLING/COLEMAN / REVOLV ILLUSTRATIONS
Product Details

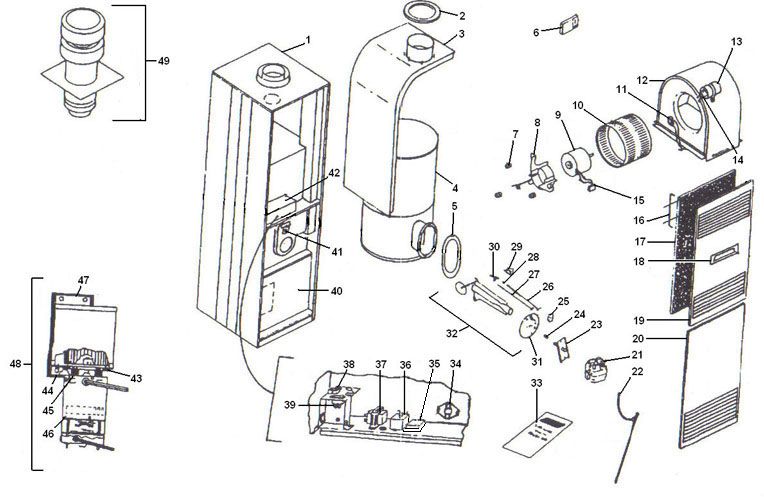

# DESCRIPTION QTY USED ON
MODEL
MFG# PART# PRICE
1 Casing Top 1 All 7945A5721 -
2 Gasket Pkg. - Heat Exchanger 1 All 7945-3011 -
3 See Heat Exchanger - (Item #4) -
4 Heat Exchanger - (w/Gaskets)
Heat Exchanger - (w/Gaskets)
Heat Exchanger - (w/Gaskets)
Heat Exchanger - (w/Gaskets)
1
1
1
1
7956B
7966B
7970B, 7975B
7995B
7956-5751
7966-5751
7966-5751
7995-5761
-
-
-
-
-
5 Gasket Pkg. - Heat Exchanger 1 All 7945-3011 -
6 Thermostat - (Adj. Ant.) 1 All 7656-3951 -
7* Mount - Motor (3/Pkg.) 1 All 7670-3551 232276 $41.38
8* Clamp - Motor
Clamp - Motor
Clamp - Motor
1
1
1
7956B
7966B,7970B,7975B
7995B
7670-5391
7670-3551
7700-5391
-
-
-
9* Motor - This motor is a new "high efficiency" replacement. It is a permanent split capacitor (PCS) design for the previously produced shaded pole design. This motor will use less electricity (lower AMP draw) but produce enough torque for the fan to do the work that is required. To make installation similar, we have provided the capacitor with the motor so that you only have to work with similar leads to the original motor. 1 7956B,7966B,
7970B,7975B
7966-311P 232258 $337.73
Motor - (1/10 HP-880 RPM 4.0A.)
(FASCO #7151-3328)(MCMILL #MS1386) Replaced by 232258
1 7956B 7945-3119 -
Motor - (1/8 HP-1100 RPM-8.2A)(WEST. #322P289) Replaced by 232258 1 7966B,7970B
7975B
7966-3119 -
Motor - (S.N. #02870000 & Below)
(1/4 HP-1050 RPM-10.0A.)(WEST. #321P636)
1 7995B 1468-2129 -
10* Blower Wheel - D/W/B (9-1/2 x 7-1/8 x 1/2)
(TOR. #CM916-704-5)(LAU #027855-09)
(MORR. #03-32013-0)
Blower Wheel - D/W/B (10-3/8 x 7-1/8 x 1/2)
(TOR. #CM1020-704-5)(LAU #027855-10)
(MORR. #03-42001-0)
Blower Wheel - D/W/B (10-3/8 x 7-1/8 x 1/2)
(TOR. #CM1020-704-5)(LAU #027855-10)
(MORR. #03-42001-0)
1


1



1
7956B


7966B,7970B,7975B


7995B
1472-2791


1472-2751


1472-2751
-


-


-
11* Limit Switch - (Upper)(Open 180°- Manual
Reset) (TI #20615L5-A29) (TOD #60T14)
(EX #404-105)
1 All 7624A3951 232111 $25.06
12* Scroll 1 All 7945A530 -
13* Run Capacitor - (7.5 Mfd. - 370V) 1 7995B 1499-4460 -
14* Cover - Capacitor 1 All 2632-180 -
15* Plug - Connector 1 All 7680-348 -
16* Retainer - Filter 1 All 7670-3451 R-20 $ 4.83
17* Filter - (19-3/8 x 35-3/4 x 1/4) 1 All 7660-3401 F-20 $11.60
Filter Kit - (Includes filter and two retainers) 1 All K-20 $22.24
18 Decal - Coleman 1 All 1539-127 -
19 Panel - Upper (7670B5231) 1 All 7956-5231 -
20 Panel - Lower (7670A1571) 1 All 7956-1571 -
21 Gas Valve - (24V .23 Amp) 1 All 7656-336P 232243 $557.60
22 Lighter Rod - (with Chain) 1 All 7660-190 -
23 Bracket - Valve (Less Orifice) 1 All 7945B151 -
24 Orifice - Burner (See Chart) 1 All -
25 Seal Plate 1 All 7945-166 -
26 Pilot Tube - (1/4" Steel) 1 All 7945-1671 -
27 Thermocouple - (24") 1 All 2631-3481 231350 $40.50
28 -
29 Shield - Pilot 1 All 7945-1701 -
30 Pilot Burner - (w/Pilot Spud) 1 All 9880-0161 -
31 Plate - Mounting (w/Gasket) 1 All 7945-1631 -
32 Burner Assy. - (Less Gas Valve) 1 All 7956A5851 -
33 Customer Envelope 1 All 1972F461 -
34 Limit Switch - (Lower 0-140° C-110°)
Limit Switch - (Lower 0-145° C-115°)
Limit Switch - (Lower 0-150° C-120°)
1
1
1
7956B
7966B,7970B,7975B
7995B
7945-3281
7970-3281
7970-3281
232287
-
-
$26.94
-
-
35 Blower Control - (On Delay 45 Sec.
replaces 7956-377)
1 All 7956-3781 -
36 Booster Relay - (24V. - SPST-4 Ter.) 1 7995B 8665-5781 -
37 Transformer - (115-24 V. 115 VA) 1 All 7945-3551 -
38 Connector Cap Assy. 1 All 7945B555 -
39 Switch - Rocker On-Off 1 All 7681-3301 -
40 Panel - (Coil Cavity 19-15/16") 1 All 7656B1861 -
41 Plate - Observation (w/Gasket)
Gasket - Observation Plate
1
1
All
All
7706C5491
7706A3171
-
-
42 Cover - Control Box 1 All 7945A1351 -
43 Plate - Mount 1 7995B 8865A1471 -
44 Impellor 1 7995B 8865-3611 -
45 Mount - Motor (Rubber 4/Pkg.) 1 7995B 8865B1281 -
46 Booster Motor - (3000 RPM) 1 7995B 7995-3169 232257 $311.38
47 Gasket - Booster 1 7995B 7995A386 -
48 Booster Assy. - (Incl. Items 43-47) 1 7995B 7995-6451 -
49 Roof Jack -
Show More
