PRESIDENTIAL II
SKU presii
$0.00
7656B, 7663B, 7670B, 7680B
PRESIDENTIAL II
Product Details

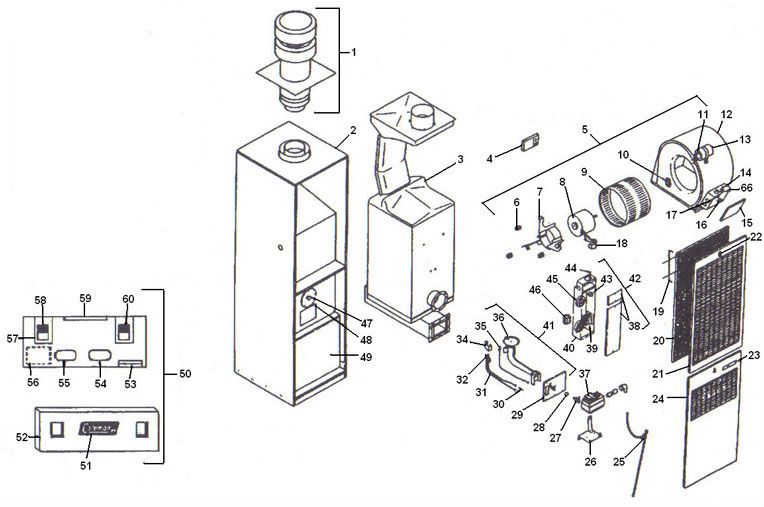

| # | DESCRIPTION | Qty | USED ON MODEL |
MFG# | PART # | PRICE |  |
| 1 | Roof Jack | - | |||||
| 2 | Casing Top | 1 | All | 7670-1041 | - | ||
| 3 | Heat Exchanger - (with Gaskets) Heat Exchanger - (with Gaskets) Heat Exchanger - (with Gaskets) Heat Exchanger - (with Gaskets) |
1 1 1 1 |
7656B 7663B 7670B 7680B |
7656-5751 7660-5751 7670-5751 7680-5751 |
- - - - |
||
| 4 | Thermostat - (Adj. - Set at .25 W-R#1030-370) Thermostat - (Adj. - Set at .40 W-R#1030-339) |
1 | All | 7656-3951 7670-3951 |
- - |
||
| 5 | Blower Blower Blower |
1 1 1 |
7656B,7663B 7670B 7680B |
7660B590 7670B590 7680B590 |
- - - |
||
| 6 | Mount - Motor (3/Pkg.) | 1 | All | 7670-3551 | 232276 | $41.38 | |
| 7 | Clamp - Motor | 1 | All | 7670-5391 | - | ||
| 8 | Motor - (1/10 HP 860 RPM)(FASCO #7151-2204) (Westinghouse #322P149 |
1 | 7656B,7663B | 7660A3119 | 232258 | $337.73 |
|
| Motor - (1/6 HP 860 RPM)(FASCO #7151-2301) (Westinghouse #322P150) Replaced by 232258 |
1 | 7670B,7680B | 7670A3119 | 232258 | $337.73 |
|
|
| Motor - This motor is a new "high efficiency" replacement. It is a permanent split capacitor (PCS) design for the previously produced shaded pole design. This motor will use less electricity (lower AMP draw) but produce enough torque for the fan to do the work that is required. To make installation similar, we have provided the capacitor with the motor so that you only have to work with similar leads to the original motor. |
1 | 7670B,7680B | 7966-311P | 232258 | $337.73 |
|
|
| 9 | Impeller - (7-1/8 x 9-15/16 x 1/2)(Lau. 0215S3-03) Impeller - (7-13/16 x 10-3/4 x 1/2)(Lau 021793CA) |
1 1 |
7656B,7663B 7670B,7680B |
7660-3871 1472-2751 |
- - |
||
| 10 | Limit Switch - (Upper) Close 130 deg., Open 150 deg. (Thermodisc 26T-11) Limit Switch - (Upper) Close 120 deg., Open 140 deg. (W-R 3A03-904) |
1 1 |
7656B,7663B 7670B 7680B |
7660-3591 7680-3791 |
- - |
||
| 11 | Term. Cover - Cap. | 1 | 2632-180 | - | |||
| 12 | Scroll Scroll |
1 1 |
7656B,7663B 7670B,7680B |
7660-537 7670-537 |
- - |
||
| 13 | Capacitor | None | - | ||||
| 14 | Switch | None | - | ||||
| 15 | Lid - Cont. Box | 1 | 7660-291 7670-542 |
- - |
|||
| 16 | Relay | None | - | ||||
| 17 | Switch - (Cont. - Auto)(Carling Electric 2FB54-62) Switch - (Cont. - Auto)(Carling TGAO 401-TB-B) |
1 1 |
710A5181 7670-3531 |
- - |
|||
| 18 | Plug & Wire Assy. - Motor | 1 | All | 7680-5771 | - | ||
| 19 | Retainer - Filter | 1 | All | 7670-3451 | R-20 | $ 4.83 |
|
| 20 | Filter - (19-3/8 x 35-3/4 x 1/4) | 1 | All | 7660-3401 | F-20 | $11.60 |
|
| Filter Kit - (Includes filter and two retainers) | 1 | All | K-20 | $22.24 |
|
||
| 21 | Panel - Upper | 1 | All | 7670-5231 | - | ||
| 22 | Latch Assy. - Front Panel | 1 | All | 7660-2301 | - | ||
| 23 | Emblem - Coleman | 1 | All | 7670-3801 | - | ||
| 24 | Panel - Lower | 1 | All | 7670A5241 | - | ||
| 25 | Cap & Rod - (w/Sight Glass) | 1 | All | 7660A3661 | - | ||
| 26 | Bracket - Valve (W-R Valve) Bracket - Valve (G-C Valve) |
1 | All | 7656-5111 7660-5111 |
- - |
||
| 27 | Spud Mount - (Less Orifice) | 1 | All | 7660-1851 | - | ||
| 28 | Note - See chart for orifice size | - | |||||
| 29 | Plate - Burner Mounting | 1 | All | 7660-5101 | - | ||
| 30 | Thermocouple - (G-C 2500G24) | 1 | All | 2631-3481 | 231350 | $40.50 |
|
| 31 | Pilot Tube - (1/4 OD Steel, W-R Valve) Pilot Tube - (1/4 OD Steel, G-C Valve) |
1 | All | 7656-1661 7660-1661 |
- - |
||
| 32 | Pilot Spud - (G-C 1010954E016) | 1 | All | 9966-0161 | - | ||
| 34 | Shield- Pilot | 1 | All | 7660A1461 | - | ||
| 35 | Bleed Line - (1/8 OD) | 1 | All | 2004-1561 | - | ||
| 36 | Flame Spreader | 1 | All | 7660-5141 | - | ||
| 37 | Gas Valve - (24V .23 Amp W-R #36C67-100) Mounting Bracket - Only Req'd. when replacing G-C Valve Gas Valve - (24V .45 Amp G-C#B57Z102) |
1 | All | 7656-336P - - |
232243 - - |
$557.60 |
|
| 38 | Covers - Control Box Upper & Lower | 1 | All | 7660-1831 | - | ||
| 39 | Transformer - (115 / 24V 40VA) Basler - BE1124600001 |
1 | All | 7660C3501 2940A3541 |
- - |
||
| 40 | Limit Switch - (Lower 0-155° C-135° TI#20601L9-718) Limit Switch - (Lower 0-155° C-130° TI#20601L9-77) |
1 | 7656B,7663B 7680B |
7680-3591 7680-3591 |
- - |
||
| 41 | Burner Assy. - (Less W-R Gas Valve)(Incl. Items 29-36) Burner Assy. - (Less G-C Gas Valve)(Incl. Items 29-36) |
1 | All | 7656-6681 7660A6681 |
- - |
||
| 42 | Control Box Assy. - Complete Control Box Assy. - Complete |
1 1 |
7656B,7663B 7670B,7680B |
7660D5401 7680B5401 |
- - |
||
| 43 | Cap & Wire Assy. - Control Box | 1 | All | 7680-5761 | - | ||
| 44 | Switch - On-Off (Carling MAAOA-BL) | 1 | All | 7660-3511 | - | ||
| 45 | Fan Switch - (C-110° 0-90° TI#20601F134-191) | 1 | 7656B,7663B | 7660-3281 | 232142 | $32.85 |
|
| Fan Switch - (C-120° 0-90° TI#20601C134-191) | 1 | 7670B,7680B | 7700-3281 | 232142 | $32.85 |
|
|
| 46 | - | ||||||
| 47 | Cap & Rod - (w/Sight Glass) | 1 | All | 7660A3661 | - | ||
| 48 | Plate - Door (w/Gasket) Gasket |
1 1 |
All All |
7660-5471 7660-317 |
- | ||
| 49 | Panel - (Coil Cavity 19-13/16" SN#179000 & Above) Panel - (Coil Cavity 19" SN#1278000 & Below) |
1 | All | 7656-5201 7680-5201 |
- - |
||
| 50 | Control Box - Complete | 1 | All | 7660A563 7670B545 7670B541 |
- - - |
||
| 51 | Decal - Blower | 1 | All | 1970-599 7670-3811 |
- - |
||
| 52 | Lid - Control Box | 1 | All | 7660-291 7670-542 |
- - |
||
| 53 | Resister Assy. | 1 | None | 7670-5331 | - | ||
| 54 | Relay - Reversing (T.I. #60704BO-22) | 1 | None | 7670-3081 | - | ||
| 55 | - | ||||||
| 56 | Transformer | None | - | ||||
| 57 | Bracket | 1 | None | 7670-109 | - | ||
| 58 | - | ||||||
| 59 | Terminal Board | 1 | All | 7660-3701 7670-350 |
- - |
||
| 60 | Knob | None | - | ||||
| 66 | Knob | None | - |
