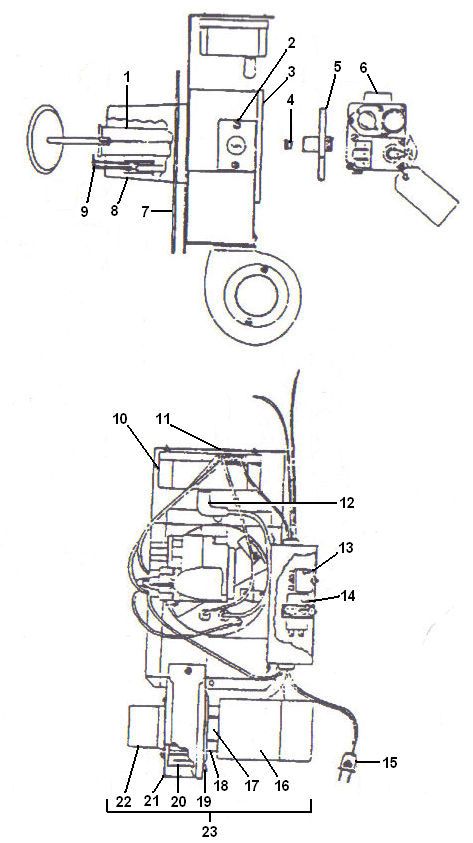

PRESIDENTIAL GAS GUN Diagram

PRESIDENTIAL GAS GUN

Home/Store/MH CATALOG/HEATING & COOLING/COLEMAN / REVOLV ILLUSTRATIONS
SKU GASGUN
$0.00
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
PRESIDENTIAL GAS GUN
Home/Store/MH CATALOG/HEATING & COOLING/COLEMAN / REVOLV ILLUSTRATIONS
Product Details

# DESCRIPTION MODEL REQ. NUMBER PART # PRICE
1 Burner Assy. - (Less Gas Valve) All 1 4066-5541 -
2 Cover - Observation All 1 4066-5531 -
3 Plate - Mounting (Burner) All 1 7945-1631 -
4 Orifice - Burner (.152 Dia. - Nat.)
Orifice - Burner (.093 Dia. - L.P.)
Orifice - Burner (.169 Dia. - Nat.)
Orifice - Burner (.101 Dia. - L.P.)
4066

4084
1

1
9951-1521
9951-0931
9951-1691
9951-1011
-
232123
-
-

$14.35

5 Bracket - Valve All 1 7945B5151 -
6 Gas Valve - (24V. .23 Amp. 1/2" x 3/8")
Alternate
All 1 7990-3261
7707-326P
-
232228

$293.74
7 Gasket - Burner Mounting All 1 4066-3721 -
8 Mount Bracket - Electrode All 1 7995A1151 -
9 Electrode All 1 7995-3061 232292 $70.83
10 Ignition Module - (24V. 100MA. 50/60 Hz.) All 1 S1-7995-3081 -
11 Connector - Edge All 1 4084-5711 -
12 Wire - High Tension All 1 7705-3071 -
13 Relay - (Booster - 8665-309) All 1 8665-5701 -
14 Transformer - (115/24 V. 15 VA.) All 1 7945-3551 -
15 Plug Assy. All 1 4066-3711 -
16 Motor - (115V. .48A. 3000 RPM) All 1 S1-7995-3169 232257 $311.38
17 Gasket - Motor All 1 7700-305 -
18 Mount - Motor (Rubber 4/Pkg.) All 4 8865B1281 -
19 Plate - Mount (Motor) All 1 8865A1471 -
20 Impellor - (3-13/16 x 1-7/8 x 5/16 Bore) All 1 8865-3611 -
21 Scroll
Scroll
4066
4084
1
1
4066-552
4084-563
-
-
22 Air Tube - Combustion All 1 4066-559 -
23 Booster Assy. - (Incl. 16 thru 22)
Booster Assy. - (incl. 16 thru 22)
4066
4084
1
1
4066-5511
4084-5621
-
-
