EB SERIES - STYLE C (Downflow Electric Furnace)
SKU EB17C
$0.00
EB17C, EB20C, EB23C
Available Components
EB SERIES - STYLE C (Downflow Electric Furnace)
Product Details

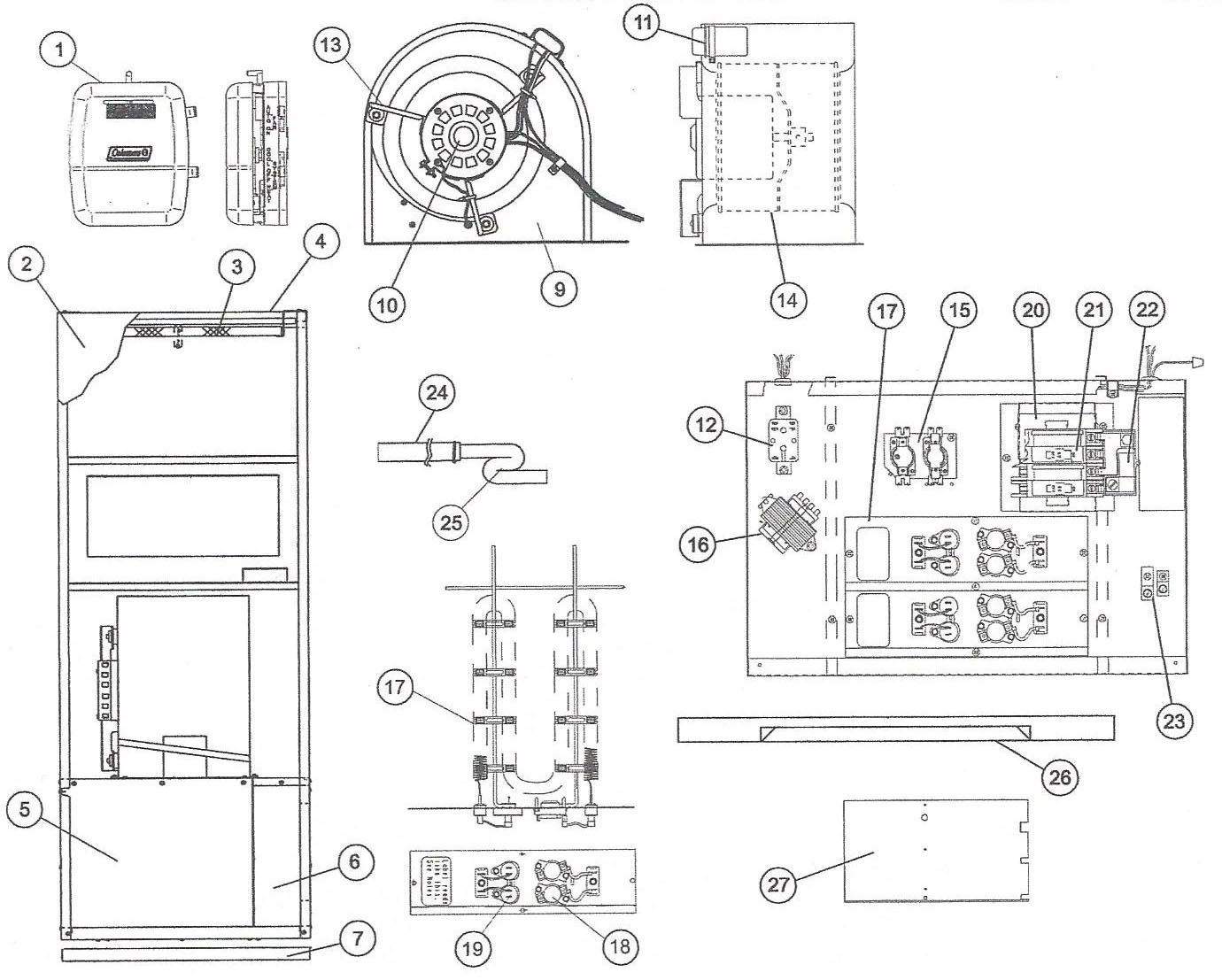

| # | DESCRIPTION | EB17C | EB20C | EB23C | PART # | PRICE |
| 1 | Thermostat - (Heat/Cool) | S1-02538746000 | S1-02538746000 | S1-02538746000 | - | |
| 2 | Front Panel - Insulated | 3500-9111 | 3500-9111 | 3500-9111 | - | |
| Front Panel - (Front Return 4-Ton) | 3500-9211 | 3500-9211 | 3500-9211 | - | ||
| Front Panel - (Front Return 5-Ton) | 3500-1591 | 3500-1591 | 3500-1591 | - | ||
| 3 | Filter - (16 x 20 x 1) | S1-1214-2511 | S1-1214-2511 | S1-1214-2511 | 2488626 | $ 2.99 |
| Filter - (20 x 20 x 1)(Front Return Panel) | S1-1214-2521 | S1-1214-2521 | S1-1214-2521 | - | ||
| 4 | Support Angle | S1-3500-1861 | S1-3500-1861 | S1-3500-1861 | - | |
| 5 | Cover - Electric Box | S1-3500-2361/A | S1-3500-2361/A | S1-3500-2361/A | - | |
| 6 | Cover - (Service Entrance) | S1-3500-1271 | S1-3500-1271 | S1-3500-1271 | - | |
| 7 | Sub-base - (Optional) | S1-3500-1071/B | S1-3500-1071/B | S1-3500-1071/B | - | |
| 8 | Sub-base - (M10) (Optional) | 3500-5221 | 3500-5221 | 3500-5221 | - | |
| 9 | Housing - Blower | S1-3500-6901/A | S1-3500-6901/A | S1-3500-6901/A | - | |
| 10 | Motor - Blower | S1-02427651000 | S1-02427651000 | S1-02427651000 | 232266 | $458.98 |
| 11 | Capacitor - (7.5MFD/370V) | S1-02420045000 | S1-02420045000 | S1-02420045000 | - | |
| 12 | Relay - Fan | S1-3110-3301 | S1-3110-3301 | S1-3110-3301 | 231348 | $26.19 |
| 13 | Motor Mount - Assembly (1PC) (kit) | S1-37319831002 | S1-37319831002 | S1-37319831002 | - | |
| 14 | Wheel - Blower | S1-1472-2831 | S1-1472-2831 | S1-1472-2831 | 232256 | $152.66 |
| 15 | Sequencer | S1-3115-3571 | S1-3115-3571 | S1-3115-3571 | - | |
| 16 | Transformer - (240/24V-40A) | S1-3300-3861 | S1-3300-3861 | S1-3300-3861 | - | |
| 17 | Heater Element - w/Limit and Jumper Wire | (5.6Kw) & (10.4Kw) S1-02541239000 S1-02541240000 |
(9.6Kw) S1-02541236000 |
(10.4Kw) & (11.2Kw) S1-02541240000 S1-02541238000 |
- | |
| 18 | Limit Switch (Open 200, Close 60) | S1-02541249000 | S1-02541249000 | S1-02541249000 | - | |
| 19 | Fusible Link | S1-02435663000 | S1-02435663000 | S1-02435663000 | - | |
| 20 | Bracket - (Circuit Breaker) | S1-3500-128 | S1-3500-128 | S1-3500-128 | - | |
| 21 | Circuit Breaker - (2 Req'd) | S1-3500-377P/A | S1-3500-377P/A | S1-3500-377P/A | 238099 | $70.03 |
| 22 | Buss Bar | S1-3500-378P | S1-3500-378P | S1-3500-378P | - | |
| 23 | Ground Lug - (Large) | S1-02521798000 | S1-02521798000 | S1-02521798000 | - | |
| Ground Lug - (Small) | S1-02521798000 | S1-02521798000 | S1-02521798000 | - | ||
| 24 | Tube - Drain | S1-02922184001 | S1-02922184001 | S1-02922184001 | - | |
| 25 | Trap - Condensate | S1-3240-3051 | S1-3240-3051 | S1-3240-3051 | - | |
| 26 | Coil Shelf | S1-3500-174 | S1-3500-174 | S1-3500-174 | - | |
| 27 | Panel - Coil Shelf | S1-3500-1711 | S1-3500-1711 | S1-3500-1711 | - | |
| 28 | - | |||||
| 29 | Fuse | S1-025327446026 | S1-025327446026 | S1-025327446026 | - | |
| 30 | Diagram - Wiring | 035-15277-001 | 035-15278-001 | 035-15279-001 | - |
