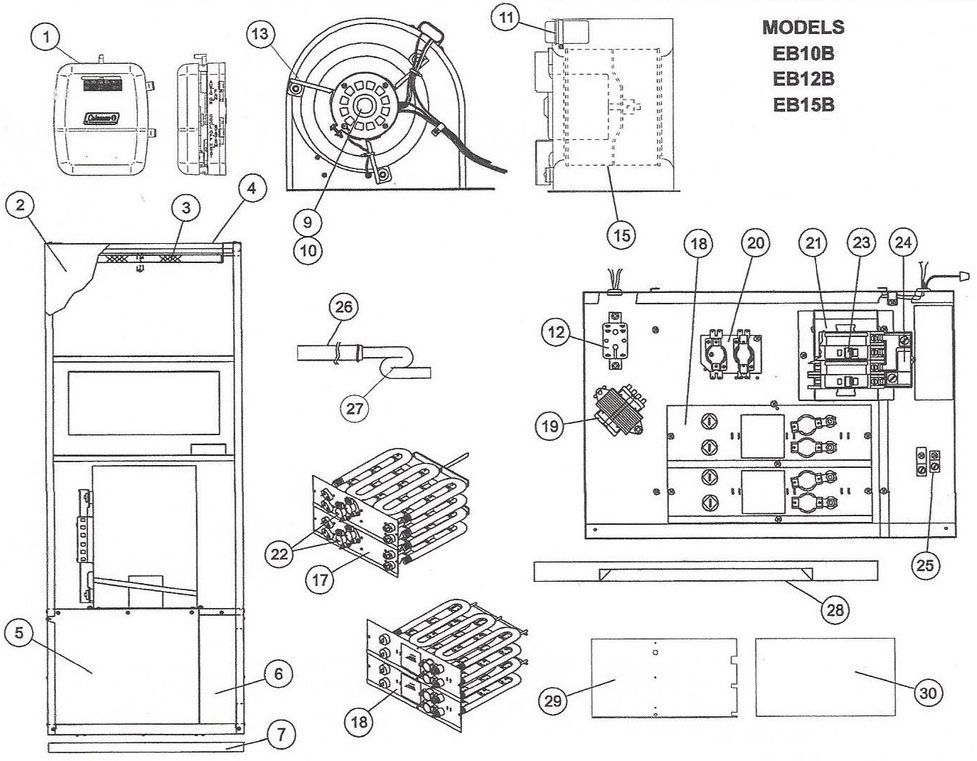

# | DESCRIPTION | EB10B | EB12B | EB15B | PART # | PRICE | |
1 | Thermostat - (Heat/Cool) | 025-38746-000 | 025-38746-000 | 025-38746-000 | - | ||
2 | Front Panel | 3500-1751/B | 3500-1751/B | 3500-1751/B | - | ||
Front Panel - (Front Return 4-Ton) | 3500-1581 | 3500-1581 | 3500-1581 | - | |||
Front Panel - (Front Return 5-Ton) | 3500-1591 | 3500-1591 | 3500-1591 | - | |||
3 | Filter - (16 x 20 x 1) | 1214-2511 | 1214-2511 | 1214-2511 | 2488626 | $ 2.99 | |
Filter - (20 x 20 x 1)(Front Return Panel) | 1214-2521 | 1214-2521 | 1214-2521 | - | |||
4 | Support Angle | 3500-1861 | 3500-1861 | 3500-1861 | - | ||
5 | Cover - Electric Box | 3500-2351/A | 3500-2351/A | 3500-2351/A | - | ||
6 | Cover - (Service Entrance) | 3500-1271 | 3500-1271 | 3500-1271 | - | ||
7 | Sub-base - (Optional) | 3500-1071/B | 3500-1071/B | 3500-1071/B | - | ||
8 | Sub-base - (M10) (Optional) | 3500-5221 | 3500-5221 | 3500-5221 | - | ||
9 | Blower Motor - (For furnaces produced before 2/99) | 1468-243P/A | 1468-243P/A | 1468-243P/A | 232266 | $458.98 | |
10 | Blower Motor - (For furnaces produced after 2/99) | 024-27651-000 | 024-27651-000 | 024-27651-000 | 232266 | $458.98 | |
11 | Capacitor - (7.5MFD/370V) | 024-20045-000 | 024-20045-000 | 024-20045-000 | - | ||
12 | Relay - Fan | 3110-3301 | 3110-3301 | 3110-3301 | 231348 | $26.19 | |
13 | Motor Mount - Assembly (1PC) (kit) | 373-19831-001 | 373-19831-001 | 373-19831-001 | - | ||
14 | - | ||||||
15 | Blower Wheel | 1472-2831 | 1472-2831 | 1472-2831 | 232256 | $152.66 | |
16 | Limit Baffle - (For furnaces produced before 3/98) | 3500-129 | 3500-101 | 3500-101 | - | ||
17 | Heater Element - (For furnaces produced before 3/98) Heater Element - (For furnaces produced before 3/98) |
(9.6Kw) 3500-4101 - |
- (11.2Kw) 3500-4121 |
(4.8Kw) & (9.6Kw) 3500-4051 & 3500-4101 - |
- - 232132 |
$320.24 |
|
18 | Heater Element Assembly - w/Limit and Jumper Wire Heater Element Assembly - w/Limit and Jumper Wire Heater Element Assembly - w/Limit and Jumper Wire |
(9.6Kw) 3500-410P/A - - |
- (11.2Kw) 3500-412P/A - |
- - (4.8Kw) & (9.6Kw) 3500-405P/A & 3500-410P/A |
232131 232132 232133 232131 |
$316.06 $320.24 $224.24 $316.06 |
|
19 | Transformer - (240/24V-40A) | 3300-3861 | 3300-3861 | 3300-3861 | - | ||
20 | Sequencer | 3110-3571 | 3110-3571 | 3110-3571 | - | ||
21 | Bracket - Circuit Breaker | 3500-128 | 3500-128 | 3500-128 | - | ||
22 | Limit Switch (For furnaces produced from 3/98 to 12/00) | 7142-3091 - |
- 3500-3121 |
- 3500-3151/A |
232113 - |
$32.72 - |
|
Limit Switch (For furnaces produced after 1/00) | 024-35596-000 | 024-35596-000 | 024-35596-000 | - | |||
23 | Circuit Breaker - (1 Req'd) | 3500-377P/A | --- | --- | 238099 | $70.03 | |
Circuit Breaker - (2 Req'd) | --- | 3500-377P/A | 3500-377P/A | 238099 | $70.03 | ||
24 | Buss Bar | 3500-378P | 3500-378P | 3500-378P | - | ||
25 | Ground Lug - (Large) | 1216-231 | 1216-231 | 1216-231 | - | ||
Ground Lug - (Small) | --- | --- | 025-21798-000 | - | |||
26 | Tube - Drain | 029-22184-001 | 029-22184-001 | 029-22184-001 | - | ||
27 | Trap - Condensate | 3240-3051 | 3240-3051 | 3240-3051 | - | ||
28 | Coil Shelf (7.5 Mfd. 370V.) | 3500-174 | 3500-174 | 3500-174 | - | ||
29 | Panel - Coil Shelf | 3500-171 | 3500-171 | 3500-171 | - | ||
30 | Insulation - Cover Panel | 010-69111-001 | 010-69111-001 | 010-69111-001 | - | ||
31 | See Field Fix Kits | ||||||
32 | |||||||
33 | |||||||
34 | |||||||
35 | Wiring Diagram | 035-15274-001 | 035-15275-001 | 035-15276-001 | - | ||
36 | Fuse | 025-32746-026 | 025-32746-026 | 025-32746-026 | - | ||
37 | Housing - Blower | 3500-6901/A | 3500-6901/A | 3500-6901/A | - |
Field Fix Kit For EB12 (A&B) Manufactured Prior to August 1995 | ||||
FIELD FIX KT 3500-7121 CONTAINS: | ||||
# | Description | MFG # | PART # | PRICE |
31 | 1 Each Limit Baffle | 3500-101 | - | |
32 | 2 Each Limit Switch | 3500-3121 | - |
Field Fix Kit For EB15 (A&B) Manufactured Prior to August 1995 | |||||
FIELD FIX KT 3500-7151 CONTAINS: | |||||
# | Description | MFG # | PART # | PRICE | |
33 | 1 Each Limit Baffle | 3500-101 | - | ||
34 | 2 Each Limit Switch | 3500-3151/A | - |
