EB SERIES - STYLE B (Downflow Electric Furnace)
SKU EB17B
$0.00
EB17B, EB20B, EB23B
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
EB SERIES - STYLE B (Downflow Electric Furnace)
Product Details

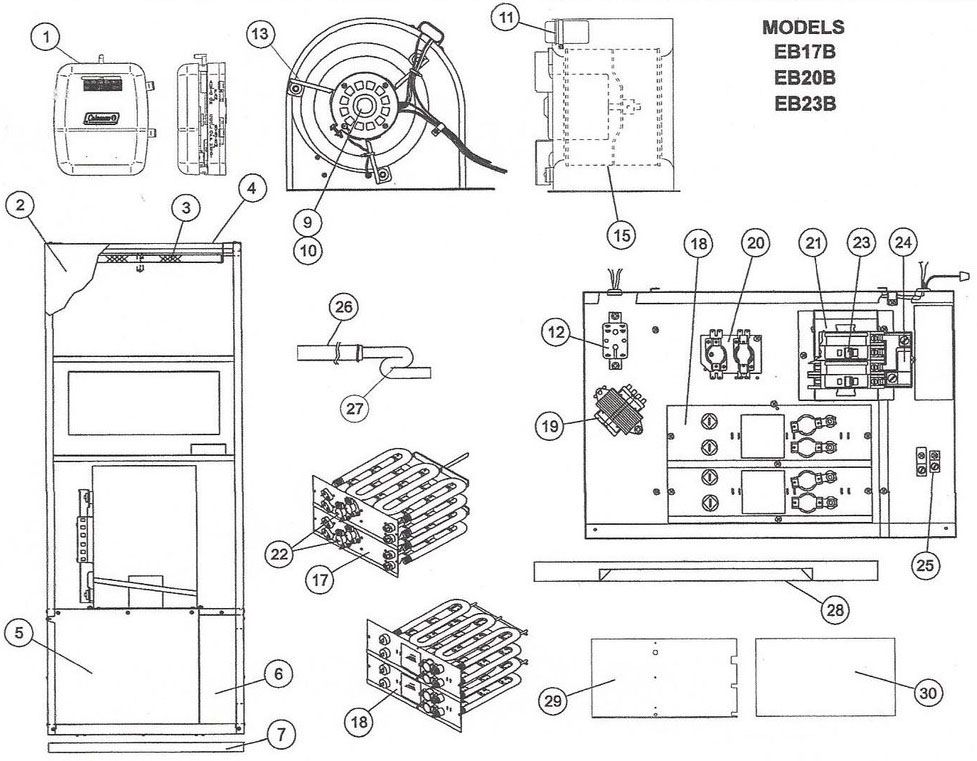

| # | DESCRIPTION | EB17B | EB20B | EB23B | PART # | PRICE |
| 1 | Thermostat - (Heat/Cool) | 025-38746-000 | 025-38746-000 | 025-38746-000 | - | |
| 2 | Front Panel | 3500-1751/B | 3500-1751/B | 3500-1751/B | - | |
| Front Panel - (Front Return 4-Ton) | 3500-1581 | 3500-1581 | 3500-1581 | - | ||
| Front Panel - (Front Return 5-Ton) | 3500-1591 | 3500-1591 | 3500-1591 | - | ||
| 3 | Filter - (16 x 20 x 1) | 1214-2511 | 1214-2511 | 1214-2511 | 2488626 | $ 2.99 |
| Filter - (20 x 20 x 1)(Front Return Panel) | 1214-2521 | 1214-2521 | 1214-2521 | - | ||
| 4 | Support Angle | 3500-1861 | 3500-1861 | 3500-1861 | - | |
| 5 | Cover - Electric Box | 3500-2361/A | 3500-2361/A | 3500-2361/A | - | |
| 6 | Cover - (Service Entrance) | 3500-1271 | 3500-1271 | 3500-1271 | - | |
| 7 | Sub-base - (Optional) | 3500-1071/B | 3500-1071/B | 3500-1071/B | - | |
| 8 | Sub-base - (M10) (Optional) | 3500-5221 | 3500-5221 | 3500-5221 | - | |
| 9 | Blower Motor - (For furnaces produced before 2/99) | 1468-243P/A | 1468-243P/A | 1468-243P/A | 232266 | $458.98 |
| 10 | Blower Motor - (For furnaces produced after 2/99) | 024-27651-000 | 024-27651-000 | 024-27651-000 | - | |
| 11 | Capacitor - (7.5MFD/370V) | 024-20045-000 | 024-20045-000 | 024-20045-000 | - | |
| 12 | Relay - Fan | 3110-3301 | 3110-3301 | 3110-3301 | 231348 | $26.19 |
| 13 | Motor Mount - Assembly (1PC) (kit) | 373-19831-001 | 373-19831-001 | 373-19831-001 | - | |
| 14 | - | |||||
| 15 | Blower Wheel | 1472-2831 | 1472-2831 | 1472-2831 | - | |
| 16 | Limit Baffle - (For furnaces produced before 3/98) | 3500-129 | 3500-129 | 3500-129 | - | |
| 17 | Heater Element - (For furnaces produced before 3/98) | (4.8Kw) & (11.2Kw) 3500-4051 & 3500-4121 |
(9.6Kw) 3500-4101 |
(10.4Kw) & (11.2Kw) 3500-4111 & 3500-4121 |
- 232132 |
$320.24 |
| 18 | Heater Element Assembly - w/Limit and Jumper Wire | (5.6Kw) & (10.4Kw) 3500-406P/A & 3500-4111P/A |
- - |
- - |
232130 - |
$252.34 - |
| Heater Element Assembly - w/Limit and Jumper Wire | - | (9.6Kw) 3500-410P/A |
- | 232131 | $314.06 | |
| Heater Element Assembly - w/Limit and Jumper Wire | - - |
- - |
(10.4Kw) & (11.2Kw) 3500-411P/A & 3500-412P/A |
- 232132 |
320.24 |
|
| 19 | Transformer - (240/24V-40A) | 3300-3861 | 3300-3861 | 3300-3861 | - | |
| 20 | Sequencer | 3110-3571 | 3110-3571 | 3110-3571 | - | |
| 21 | Bracket - Circuit Breaker | 3500-128 | 3500-128 | 3500-128 | - | |
| 22 | Limit Switch (For furnaces produced from 3/98 to 12/00) | 7142-3091 - |
- 3500-3091 |
- 3500-3091 |
232113 - |
$32.72 - |
| Limit Switch (For furnaces produced after 1/00) | 024-35596-000 | 024-35596-000 | 024-35596-000 | - | ||
| 23 | Circuit Breaker - (2 Req'd) | 3500-377P/A | 3500-377P/A | 3500-377P/A | 238099 | $70.03 |
| 24 | Buss Bar | 3500-378P | 3500-378P | 3500-378P | - | |
| 25 | Gound Lug - (Large) | 1216-231 | 1216-231 | 1216-231 | - | |
| Gound Lug - (Small) | 025-21798-000 | 025-21798-000 | 025-21798-000 | - | ||
| 26 | Tube - Drain | 029-22184-001 | 029-22184-001 | 029-22184-001 | - | |
| 27 | Trap - Condensate | 3240-3051 | 3240-3051 | 3240-3051 | - | |
| 28 | Coil Shelf (7.5 Mfd. 370V.) | 3500-174 | 3500-174 | 3500-174 | - | |
| 29 | Panel - Coil Shelf | 3500-1711 | 3500-1711 | 3500-1711 | - | |
| 30 | Insulation - Cover Panel | 010-69111-001 | 010-69111-001 | 010-69111-001 | - | |
| 31 | See Field Fix Kits | |||||
| 32 | ||||||
| 33 | ||||||
| 34 | ||||||
| 35 | Wiring Diagram | 035-15277-001 | 035-15278-001 | 035-15279-001 | - | |
| 36 | Fuse | 025-32746-026 | 025-32746-026 | 025-32746-026 | - | |
| 37 | Housing - Blower | 3500-6901/A | 3500-6901/A | 3500-6901/A | - | |
| Field Fix Kit For EB12 (A&B) Manufactured Prior to August 1995 | |||||
| FIELD FIX KT 3500-7121 CONTAINS: | |||||
| # | Description | MFG # | PART # | PRICE | |
| 31 | 1 Each Limit Baffle | 3500-101 | - | ||
| 32 | 2 Each Limit Switch | 3500-3121 | - | ||
| Field Fix Kit For EB15 (A&B) Manufactured Prior to August 1995 | ||||
| FIELD FIX KT 3500-7151 CONTAINS: | ||||
| # | Description | MFG # | PART # | PRICE |
| 33 | 1 Each Limit Baffle | 3500-101 | - | |
| 34 | 2 Each Limit Switch | 3500-3151/A | - | |
