DGRT SERIES - COLEMAN FURNACE
SKU DGRT
$0.00
DGRT056AAA, DGRT070AAA, DGRT075AAA
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
DGRT SERIES - COLEMAN FURNACE
Product Details

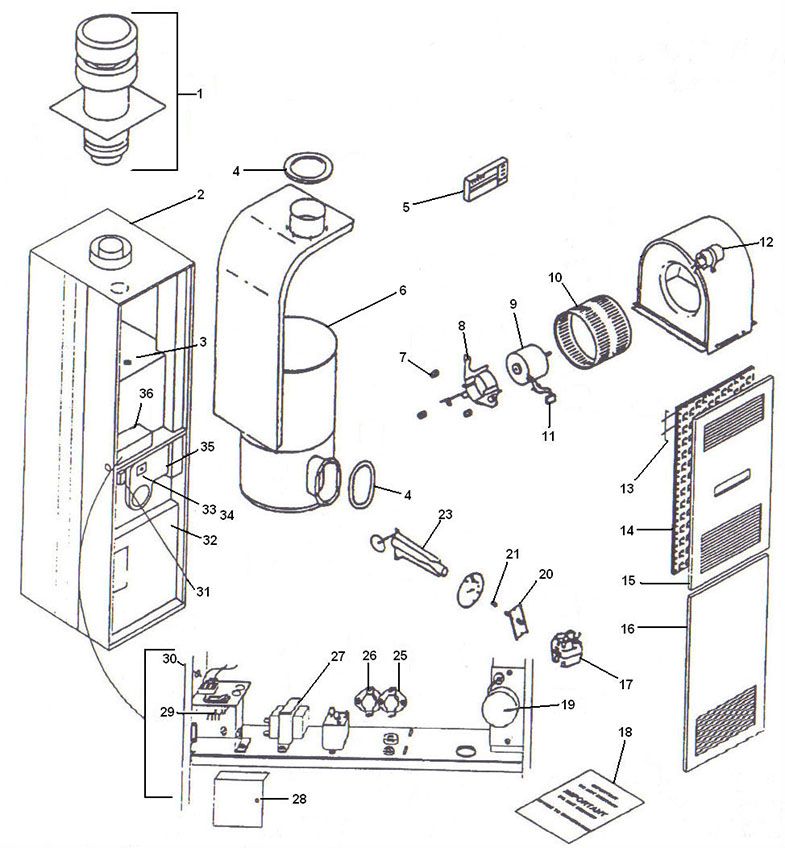

| # | DESCRIPTION | NO. REQ. |
USED ON MODEL |
MFG # | PART# | PRICE |
| 1 | Roof Jack | - | ||||
| 2 | Casing Top | All | - | |||
| 3 | Limit Switch - Upper (0-180 deg. Manual Reset) | 1 | All | 7624A3591 | 232111 | $25.06 |
| 4 | Gasket Pkg. - Heat Exchanger | 1 | All | 7945-3011 | - | |
| 5 | Thermostat - (Adj. Ant.) | 1 | All | 7700-3571 | - | |
| 6 | Heat Exchanger - w/Gaskets Heat Exchanger - w/Gaskets |
1 | 056 070, 075 |
7956-5751 7966-5751 |
- | |
| 7 | Mount - Motor (3/pk) | All | 7670-3551 | 232276 | $41.38 | |
| 8 | Clamp - Motor | All | 7670-5391 | - | ||
| 9 | Motor - This motor is a new "high efficiency" replacement. It is a permanent split capacitor (PCS) design for the previously produced shaded pole design. This motor will use less electricity (lower AMP draw) but produce enough torque for the fan to do the work that is required. To make installation similar, we have provided the capacitor with the motor so that you only have to work with similar leads to the original motor. | All | 7966-311P | 232258 | $315.40 | |
| 10 | Blower Wheel - (10-5/8 dia. x 7-1/8 x 1/2) | All | 1472-2751 | |||
| 11 | Connector Plug | All | 7680-348 | - | ||
| 12 | Run Capacitor | None | - | |||
| 13 | Retainer - Filter | 2 | All | 7970-3451 | R-20 | $ 4.83 |
| 14 | Filter - (19-3/8 x 35-3/4 x 1/4) | 1 | All | 7660-3401 | F-20 | $11.60 |
| Filter Kit - (Includes filter and two retainers) | 1 | All | K-20 | $22.24 | ||
| 15 | Panel - Upper | 1 | All | 7956-5231 | - | |
| 16 | Panel - Lower | 1 | All | 7956-1571 | - | |
| 17 | Gas Valve - 24V .23 Amp Gas Valve - 24V .50 Amp |
1 - |
All | 7956-336P - |
232243 - |
$557.60 - |
| 18 | Customer Envelope | 1 | All | 1973-029 | - | |
| 19 | Air Damper - Combustion | 1 | 070 & 075 | 7956-5771 | - | |
| 20 | Bracket - Valve (Less Orifice) | 1 | All | 7945B5151 | - | |
| 21 | Orifice - Burner (See Chart) | 1 | All | - | ||
| 23 | Burner Assy. - Automatic Relight | 1 | All | 7970-5771 | - | |
| 25 | Limit Switch - (0 - 140 deg. C - 110 deg.) Limit Switch - (0 - 145 deg. C - 115 deg.) |
1 | 056 070-075 |
7945-3281 7970-3281 |
232287 - |
$26.94 - |
| 26 | Fan Switch - (C - 110 deg. 0-90 deg.) | 1 | 7975-3281 | 232142 | $32.85 | |
| 27 | Transformer - (115 - 24V 15VA) | All | 7945-3551 | - | ||
| 28 | Cover - Junction Box | 1 | All | 7956-112 | - | |
| 29 | Switch - Rocker On-Off | 1 | All | 7681-3301 | - | |
| 30 | Connector Cap Assy. - w/Wires | 1 | All | 7945-5551 | - | |
| 31 | Module - Re-ignitor | 1 | All | 7970-378P | - | |
| 32 | Panel - (Coil Cavity 19-13/16") | 1 | All | 7656A5201 | - | |
| 33 | Plate - Observation w/Gasket | 1 | All | 7706-5251 | - | |
| 34 | Gasket - Observation Plate | 1 | All | 7706-3251 | - | |
| 35 | Air Box - Lower | 1 | All | 7945-114 | - | |
| 36 | Cover - Control Box | 1 | All | 7945A1351 | - |
