DGPA & DGPH SERIES - COLEMAN FURNACE
SKU DGPA
$0.00
DGPA056ABTA, DGPA070ABTA, DGPA077ABTA, DGPA090ABTA, DGPH056ABTA, DGPH070ABTA, DGPH077ABTA, DGPH090ABTA
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

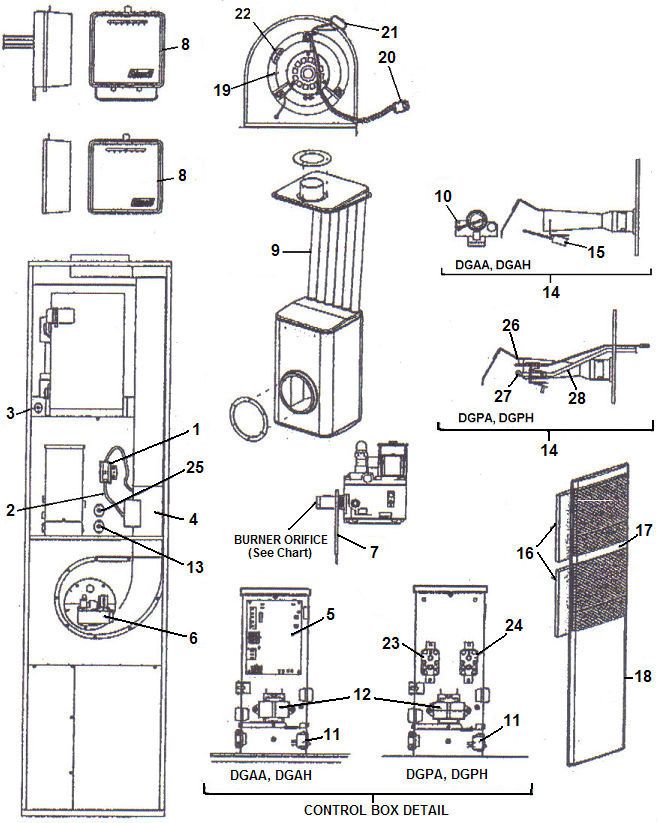

DGPA & DGPH SERIES - COLEMAN FURNACE
Product Details
| # | DESCRIPTION | DGP056ABTA | DGP070ABTA | DGP077ABTA | DGP090ABTA | PART# | PRICE |
| 1 | Switch - Pressure | S1-02541003000 | S1-02541003000 | S1-02541003000 | S1-02541003000 | 232272 | $108.74 |
| Switch - Pressure | S1-32435972000 | S1-32435972000 | S1-32435972000 | S1-32435972000 | 232272M | $108.74 | |
| 2 | Tubing - Silicone (2' Reg'd) | S1-02812499000 | S1-02812499000 | S1-02812499000 | S1-02812499000 | - | |
| 3 | Limit Switch - Manual (Upper) | S1-02535358000 | S1-02535358000 | S1-02535358000 | S1-02535358000 | - | |
| 4 | Assembly - Booster (w/Motor) WSL |
S1-37319801820 | S1-37319801820 | S1-37319801820 | S1-37319801820 | 232325 | $286.70 |
| 5 | Control Board - Integrated | S1-03101932002 | S1-03101932002 | S1-03101932002 | S1-03101932002 | 232271 | $385.66 |
| 6 | Valve - Gas | S1-7990-328P | S1-7990-328P | S1-7990-328P | 7990-328P | 232228 | $293.74 |
| 7 | Bracket - Valve | S1-07319801064 | S1-07319801064 | S1-07319801064 | S1-07319801064 | - | |
| 8 | Thermostat - Heat/Cool | Accessory | - | ||||
| 9 | Exchanger - Heat (w/Gaskets) | S1-37319804651 | S1-37323792001 | S1-37323792002 | S1-37323792003 | - | |
| 10 | Sensor - Flame | S1-02535354000 | S1-02535354000 | S1-02535354000 | S1-02535354000 | - | $36.85 |
| 11 | Switch - System | S1-7681-3301 | S1-7681-3301 | S1-7681-3301 | S1-7681-3301 | - | |
| 12 | Transformer - (115-24V, 40 VA) | S1-2940A3541 | S1-2940A3541 | S1-2940A3541 | S1-2940A3541 | - | |
| 13 | Switch - Limit | S1-02535380000 | S1-02535380000 | S1-02535381000 | S1-02535381000 | - | |
| 14 | Burner Assembly - Auto Ignition (Includes items 10 & 15) |
S1-37319801403 | S1-37319801403 | S1-37319801403 | S1-37319801403 | - | |
| 15 | Ignitor - Hot Surface | S1-02541021000 | S1-02541021000 | S1-02541021000 | S1-02541021000 | 232280 | $82.32 |
| 16 | Filter - (2 Req'd)(16x20x1) FB-1620 |
S1-1214-2511 | S1-1214-2511 | S1-1214-2511 | S1-1214-2511 | 2488626 | $ 2.99 |
| 17 | Panel - Door (Upper) | Accessory | - | ||||
| 18 | Panel - Door (Lower, Tall) | 7900-7611 | 7900-7611 | 7900-7611 | 7900-7611 | - | |
| 19 | Motor - (old) | S1-1468-220P | S1-1468-220P | S1-1468-220P | S1-1468-220P | - | |
| Motor - (new) | S1-02435603000 | S1-02435603000 | S1-02435603000 | S1-02435603000 | - | ||
| 20 | Assembly - Motor Mount | S1-37319806100 | S1-37319806100 | S1-37319806100 | S1-37319806100 | - | |
| 21 | Plug - Connector | S1-02521192000 | S1-02521192000 | S1-02521192000 | S1-02521192000 | - | |
| 22 | Capacitor - Run (old) | S1-02420063000 | S1-02420063000 | S1-02420063000 | S1-02420063000 | - | |
| Capacitor - Run (new) | S1-02435602000 | S1-02435602000 | S1-02435602000 | S1-02435602000 | - | ||
| 23 | Wheel - Blower | S1-02619654003 | S1-02619654003 | S1-02619654003 | S1-02619654003 | - | |
| 24* | Top - Casing | S1-07319801342 | S1-07319801342 | S1-07319801342 | S1-07319801342 | - | |
| 25* | Wiring - Wiring | 155887 | 155887 | 155887 | 155887 | - | |
| 26* | Strike - Door | S1-02118364000 | S1-02118364000 | S1-02118364000 | S1-02118364000 | - | |
| 27* | Latch - Door | S1-02118365000 | S1-02118365000 | S1-02118365000 | S1-02118365000 | - | |
| 28* | Housing - Blower | S1-37323864001 | S1-37323864001 | S1-37323864001 | S1-37323864001 | - | |
| 29* | Gasket - Combustion Air Box | S1-01006900005 | S1-01006900005 | S1-01006900005 | S1-01006900005 | - | |
| 30* | Gasket - Burner | S1-01006742000 | S1-01006742000 | S1-01006742000 | S1-01006742000 | - | |
| 31* | Gasket - Booster Assembly | S1-01006900015 | S1-01006900015 | S1-01006900015 | S1-01006900015 | - | |
| 32* | Gasket - Heat Exchanger | S1-01006900001 | S1-01006900001 | S1-01006900001 | S1-01006900001 | - | |
* Not Shown
