DGAM, DGAT, DLAS DE & DF SERIES - Coleman Furnace
Product Details

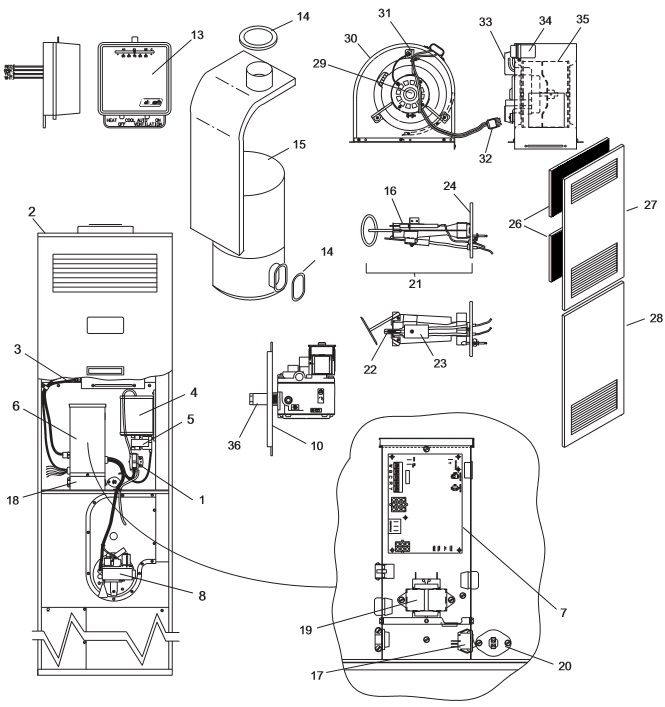

| # | DESCRIPTION | NO. REQ. |
USED ON MODEL |
NUMBER | PART # | PRICE |
| 1 | Switch - Pressure | 1 | All | --- | 232272M | $108.74 |
| 2 | Casing Top | 1 | All | S1-7945-116/C | - | |
| 3 | Limit Switch - Manual (Upper) | 1 | All | S1-7990-3591 | 232111 | $25.06 |
| 4 | Assembly - Booster (w/Motor)(Style E) Assembly - Booster (w/Motor)(Style F) |
1 1 |
All All |
S1-7990-6451 S17990-6501 |
232270 - |
$698.46 - |
| 5 | Booster Motor - (Style E) Booster Motor - (Style F) |
1 1 |
All All |
S1-7990-317P S1-7990-314P |
- - - |
|
| 6 | Cover - Control Box | 1 | All | S1-7990-401 | - | |
| 7 | Integrated Control - (Style E) Integrated Control - (Style F) |
1 1 |
All All |
S1-7990-319P S1-03101910000 |
232269 232271 |
$385.66 $385.66 |
| 8 | Gas Valve | 1 | All | S1-7990-328P | 232228 | $293.74 |
| 9 | - | - | - | - | - | |
| 10 | Bracket - Valve | 1 | All | S1-7945-5151/C | - | |
| 11* | Panel - Coil Cavity (E Style) | 1 | All | S1-7956A5201 | - | |
| 12 | - | - | - | - | - | |
| 13 | Thermostat | 1 | All | S1-7990-386P | - | |
| 14 | Gasket Package - Heat Exchanger | 1 | All | S1-7945-3011 | - | |
| 15 | Heat Exchanger - w/Gaskets | 1 | All | S1-37323736001 | - | |
| 16 | Remote Sensor | 1 | All | S1-7975-3881 | 232310 | $129.60 |
| 17 | Switch - System | 1 | All | S1-7970-3331 | - | |
| 18 | Cover - Field Wiring | 1 | All | S1-7990-402 | - | |
| 19 | Transformer | 1 | All | S1-2940S3541 | - | |
| 20 | Limit Switch - (Open-140, Close-110) Limit Switch - (Open-145, Close-115) Limit Switch - (Open-150, Close-120) |
1 | 056 070, 075 090 |
S1-7945-3281/A S1-7970-3281/A S1-7995-3281/A |
232287 - - |
$26.94 - - |
| 21 | Burner Assy - (less gas valve) | S1-7970-5851/A | - | |||
| 22 | Ignitor - Hot Surface | S1-1474-0521 | 232280 | $82.32 | ||
| 23 | Sheild - Ignitor | 1 | All | S1-7970-179 | - | |
| 24 | Plate - Mounting (Burner) | 1 | All | S1-7945-1631/A | - | |
| 25 | - | - | - | |||
| 26 | Filter - (16x20x1, 2 Req'd) FB-1620 | 2 | All | S1-1214-2511 | 2488626 | $ 2.99 |
| 27 | Panel - Upper Panel - Upper |
1 1 |
DGAM DLAS, DGAT |
S1-7975-1561/B S1-7990-1561/A |
- - |
|
| 28 | Panel - Lower Panel - Lower |
1 1 |
DGAM, DGAT DLAS |
S1-7956-1571/A S1-7956-1631/A |
- - |
|
| 29 | Blower Motor - (DGAM) Blower Motor - This motor is a new "high efficiency" replacement. It is a permanent split capacitor (PCS) design for the previously produced shaded pole design. This motor will use less electricity (lower AMP draw) but produce enough torque for the fan to do the work that is required. To make installation similar, we have provided the capacitor with the motor so that you only have to work with similar leads to the original motor. Blower Motor - (DGAT, DLAS) |
1 1 1 |
056, 075 056, 070, 075 090 |
S1-1468-220P S1-7966-311P S1-1468-212P |
- 232258 - |
- $315.40 - |
| 30 | Housing - Blower | 1 | All | S1-7966S530 | - | |
| 31 | Mount - Motor (Pkg of 3) | 1 | All | S1-2702-4091 | 232276 | $41.38 |
| 32 | Connector Plug | 1 | All | S1-7680-348 | - | |
| 33 | Clamp - Motor | 1 | All | S1-7670-6391 | - | |
| 34 | Run Capacitor - (DGAM) Run Capacitor - (DGAT) Run Capacitor - (DLAS) |
1 1 1 |
056, 075 090 - |
S1-1499-4471 S1-1499-4461 - |
- 102114 - |
- $ 3.34 - |
| 35 | Blower Wheel | 1 | All | S1-1472-2751 | - | |
| 36 | Orifice - Burner (Nat) Orifice - Burner (Nat) Orifice - Burner (Nat) Orifice - Burner (Nat) Orifice - Burner (LP) Orifice - Burner (LP) Orifice - Burner (LP) Orifice - Burner (LP) |
1 1 1 1 1 1 1 1 |
056 070 075 090 056 070 075 090 |
S1-9951-1361 S1-9951-1541 S1-9951-1611 S1-9951-1801 S1-9951-0821 S1-9951-0931 S1-9951-0981 S1-9951-1061 |
232125 - - - - 232123 - - |
$20.11 - - - - $14.35 - - |
| 37* | Tubing - Silicone | 1 | All | S1-02811957000 | - | |
| 38* | Diagram - Wiring | 1 | All | 1973-107/B | - |
