DGAH SERIES - COLEMAN FURNACE

Home/Store/MH CATALOG/HEATING & COOLING/COLEMAN / REVOLV ILLUSTRATIONS
SKU DGAH
$0.00
DGAH056BBSB, DGAH077BBSB
Available Compnents
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
DGAH SERIES - COLEMAN FURNACE
Home/Store/MH CATALOG/HEATING & COOLING/COLEMAN / REVOLV ILLUSTRATIONS

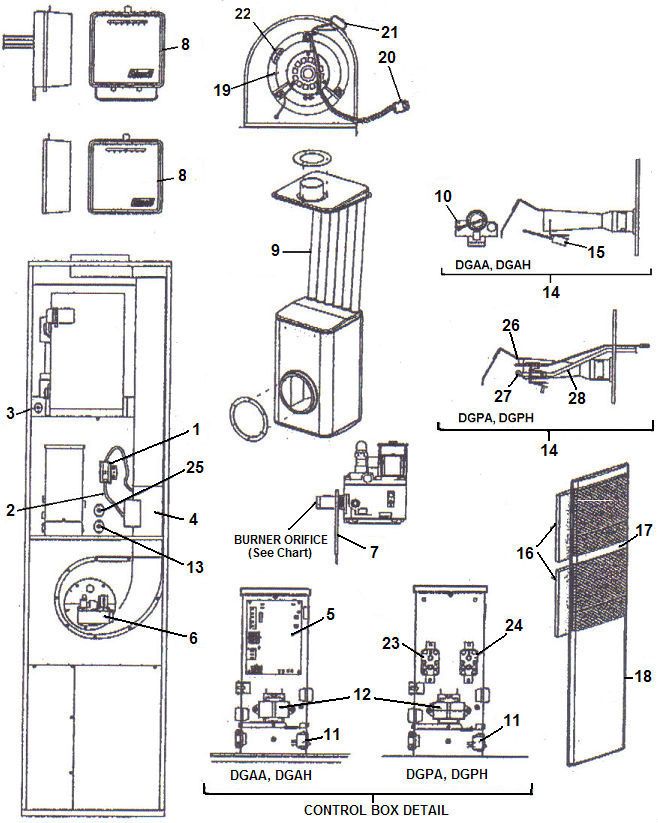

Product Details

# DESCRIPTION DGAH056BBSB DGAH077BBSB PART# PRICE
1 Switch - Pressure S1-02541003000 S1-02541003000 -
2 Tubing - Silicone (2' req'd) S1-02812499000 S1-02812499000 -
3 Limit Switch - Manual (upper) S1-02535358000 S1-02535358000 - $32.05
4 Assembly - Booster (w/motor)
WSL
S1-37319801820 S1-37319801820 232325 $286.70
5 Control Board - Intergrated S1-03101932002 S1-03101932002 232271 $385.66
6 Valve - Gas S1-02543267000 S1-02543267000 232228 $293.74
7 Bracket - Valve S1-07319801064 S1-07319801064 -
8 Thermostat - Heat/Cool Accessory -
9 Exchanger - Heat (w/Gaskets) S1-37319804651 S1-37323792002 -
10 Sensor - Flame S1-02535354000 S1-02535354000 - $36.85
11 Switch - System S1-7681-3301 S1-7681-3301 -
12 Transformer - (115-24V, 40 VA) S1-2940A3541 S1-2940A3541 -
13 Switch - Limit S1-02535380000 S1-02535381000 -
14 Burner Assembly - Auto Ignition
(Includes items 10 & 15)
S1-37319801403 S1-37319801403 -
15 Ignitor - Hot Surface S1-02541021000 S1-02541021000 232280 $82.32
16 Filter - (2 Req'd)(16 x 20 x 1)
FB-1620
S1-1214-2511 S1-1214-2511 2488626 $ 2.99
17 Panel - Door (Upper) Accessory -
18 Panel - Door (Lower, short) 7900-7671 7900-7671 -
19 Motor S1-02431948000 S1-02431948000 -
20 Assembly - Motor Mount - - - - - - -
21 Plug - Connector S1-02521192000 S1-02521192000 -
22 Capacitor - Run - - - - - - -
23 Wheel - Blower S1-02619654003 S1-02619654003 -
24* Top - Casing S1-07319801342 S1-07319801342 -
25* Diagram - Wiring 157953 157953 -
26* Strike - Door S1-02118364000 S1-02118364000 -
27* Latch - Door S1-02118365000 S1-02118365000 -
28* Housing - Blower S1-37323864001 S1-37323864001 -
29* Gasket - Combustion Air Box S1-01006900005 S1-01006900005 -
30* Gasket - Burner S1-01006742000 S1-01006742000 -
31* Gasket - Booster Assembly S1-01006900015 S1-01006900015 -
32* Gasket - Heat Exchanger S1-01006900001 S1-01006900001 -

NOTE:

*Not Shown
3. DGAH with 5-Ton Blowers are provided as an accessory item and are not standard equipment from the factory.
