DGAA SERIES - COLEMAN FURNACE
SKU DGAA
$0.00
DGAA056BDTA, DGAA070BDTA, DGAA077BDTA, DGAA090BDTA
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
DGAA SERIES - COLEMAN FURNACE
Product Details

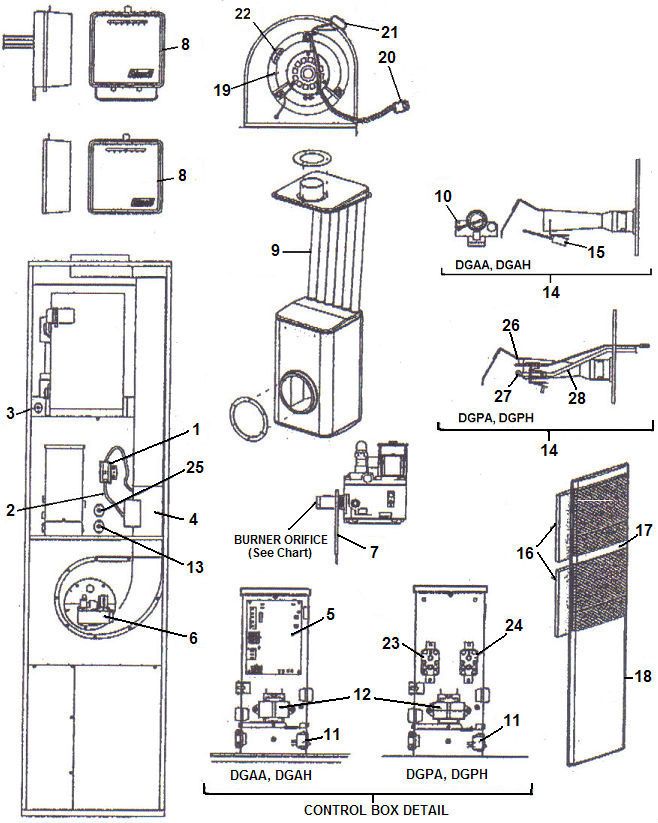

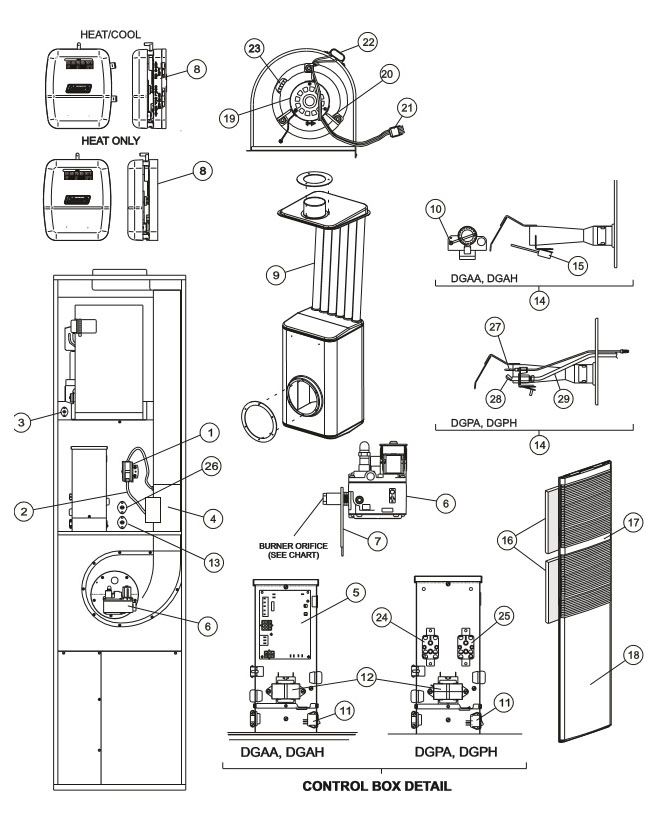

| # | DESCRIPTION | DGAA056BDTB | DGAA070BDTB | DGAA077BDTB | DGAA090BDTB | PART# | PRICE |
| 1 | Switch - Pressure | S1-02541003000 | S1-02541003000 | S1-02541003000 | S1-02541003000 | - | |
| Switch - Pressure | S1-32435972000 | S1-32435972000 | S1-32435972000 | S1-32435972000 | 232272M | $108.74 | |
| 2 | Tubing - Silicone (2' Req'd) | S1-02812499000 | S1-02812499000 | S1-02812499000 | S1-02812499000 | - | |
| 3 | Limit Switch - Manual (Upper) | S1-02535358000 | S1-02535358000 | S1-02535358000 | S1-02535358000 | - | $32.05 |
| 4 | Assembly - Booster (w/Motor) WSL | S1-37319801820 | S1-37319801820 | S1-37319801820 | S1-37319801820 | 232325 | $286.70 |
| 5 | Control Board - Integrated | S1-03101932002 | S1-03101932002 | S1-03101932002 | S1-03101932002 | - | |
| 6 | Valve - Gas | S1-02543267000 | S1-02543267000 | S1-02543267000 | S1-02543267000 | 232228 | $293.74 |
| 7 | Bracket - Valve | S1-07319801064 | S1-07319801064 | S1-07319801064 | S1-07319801064 | - | |
| 8 | Thermostat - Heat/Cool | Accessory | - | ||||
| 9 | Exchanger - Heat (w/Gaskets) | S1-37319804651 | S1-37323792001 | S1-37323792002 | S1-37323792003 | - | |
| 10 | Sensor - Flame | S1-02535354000 | S1-02535354000 | S1-02535354000 | S1-02535354000 | - | $36.85 |
| 11 | Switch - System | S1-7681-3301 | S1-7681-3301 | S1-7681-3301 | S1-7681-3301 | - | |
| 12 | Transformer - (115-24V, 40 VA) | S1-2940A3541 | S1-2940A3541 | S1-2940A3541 | S1-2940A3541 | - | |
| 13 | Switch - Limit | S1-02535380000 | S1-02535380000 | S1-02535381000 | S1-02535381000 | - | |
| 14 | Burner Assembly - Auto Ignition (Includes items 10 & 15) |
S1-37319801403 | S1-37319801403 | S1-37319801403 | S1-37319801403 | - | |
| 15 | Ignitor - Hot Surface | S1-02541021000 | S1-02541021000 | S1-02541021000 | S1-02541021000 | 232280 | $82.32 |
| 16 | Filter - (2 Req'd)(16x20x1) | S1-1214-2511 | S1-1214-2511 | S1-1214-2511 | S1-1214-2511 | 2488626 | $ 2.99 |
| 17 | Panel - Door (Upper) | Accessory | - | ||||
| 18 | Panel - Door (Lower, Tall) | 7900-7611 | 7900-7611 | 7900-7611 | 7900-7611 | - | |
| 19 | Motor - (See Note 2) (old-see note 4) | S1-1468-220P | S1-1468-220P | S1-1468-220P | S1-1468-220P | - | |
| Motor - (new-see note 4) | S1-02435603000 | S1-02435603000 | S1-02435603000 | S1-02435603000 | - | ||
| 20 | Assembly - Motor Mount (See Note 2) | S1-37319806100 | S1-37319806100 | S1-37319806100 | S1-37319806100 | - | |
| 21 | Plug - Connector | S1-02521192000 | S1-02521192000 | S1-02521192000 | S1-02521192000 | - | |
| 22 | Capacitor - Run (See Note 3) (old-see note 4) |
S1-02420063000 | S1-02420063000 | S1-02420063000 | S1-02420063000 | - | |
| Capacitor - Run (new-see note 4) | S1-02435602000 | S1-02435602000 | S1-02435602000 | S1-02435602000 | - | ||
| 23 | Wheel - Blower | S1-02619654003 | S1-02619654003 | S1-02619654003 | S1-02619654003 | - | |
| 24* | Top - Casing | S1-07319801342 | S1-07319801342 | S1-07319801342 | S1-07319801342 | - | |
| 25* | Diagram - Wiring | 155887 | 155887 | 155887 | 155887 | - | |
| 26* | Strike - Door | S1-02118364000 | S1-02118364000 | S1-02118364000 | S1-02118364000 | - | |
| 27* | Latch - Door | S1-02118365000 | S1-02118365000 | S1-02118365000 | S1-02118365000 | - | |
| 28* | Housing - Blower | S1-37323864001 | S1-37323864001 | S1-37323864001 | S1-37323864001 | - | |
| 29* | Gasket - Combustion Air Box | S1-01006900005 | S1-01006900005 | S1-01006900005 | S1-01006900005 | - | |
| 30* | Gasket - Burner | S1-01006742000 | S1-01006742000 | S1-01006742000 | S1-01006742000 | - | |
| 31* | Gasket - Booster Assembly | S1-01006900015 | S1-01006900015 | S1-01006900015 | S1-01006900015 | - | |
| 32* | Gasket - Heat Exchanger | S1-01006900001 | S1-01006900001 | S1-01006900001 | S1-01006900001 | - | |
NOTE:
*Not Shown2. For Serial Numbers lower then 001207164 Replacement DGAA motors also require Motor Mount Assembly 373-19806-100 if replaced motor has integral, flex-arm motor mount.
3. DGAA with 5-Ton Blowers are provided as an accessory item and are not standard equipment from the factory.
4. The "old" motor must use the "old" run capcitor. The "new" motor can use either capacitor. Serial No. W0F6528688 and above were built with the new motor.
