Name: ATWOOD GCHA10E
Brand: Atwood
SKU: GC10A4E
Availability: InStock

A BURNER MAIN 6 GALLON PILOT

92615

SKU 140105

$35.24

PILOT ASSEMBLY COMPLETE JADE

91603

SKU 140020

$43.02

DOOR HARDWARE KIT

91858

SKU 140101

$18.52

PLUG KIT - PLASTIC DRAIN

91857

SKU 140102

$8.88

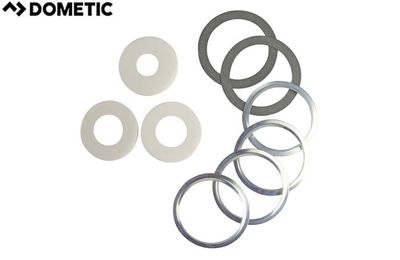

GASKET AND RING SEAL

96010

SKU 140041

$35.09

RELIEF VALVE (1/2")

91604

SKU 140012

$32.29

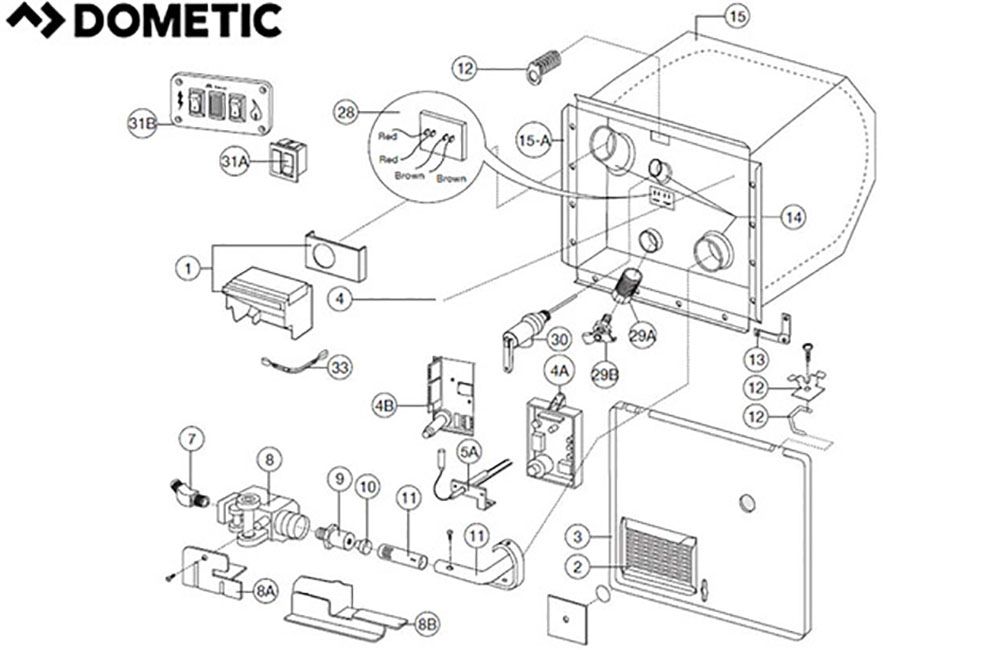

#	Description	Mfg #	Part #	Price
1	Flue Box - Assembly	90960	-
2	Grille - Extended (NLA) Grille Only - New Style Door	90002 92640	- -
3	Door w/Grill - Pol. White 10 Gal Door w/Grill - Col. White 10 Gal Door w/Grill - Col. Wht 10 Gal, Flush-Mnt	93986 93993 94231	140063 - -	$58.02
4B	PC Board Potted - Combo Use 91365 Potted Circuit Board - Kit w/Fuse	93851 91365	140004 140004	$258.19 $258.19
5A	Electrode - (Local Sense)	93868	140152	$42.86
6	Harness - Wiring Combo Use Dometic 93315	93191	-
7	Elbow - 45 Degree (3/8 x 3/8)	91044	-
8A	Bracket - Gas Valve Use 94787	93862	-
8B	Bracket - Gas Valve - One Piece	94787	-
8	T-Stat - Gas Use 93870 Valve - White Rodgers Use 93844 Solenoid Valve - White Rodgers See Notes for use#s Gas Valve Assembly - w/Orifice 10Gal	93869 93870 93844 92089	- - - 140189	$208.22
9	Holder - Orifice	91563	-
10	Orifice - Main Burner Use 93915 Orifice - Main Burner	93914 93915	- -
11	Burner - Main	96206	140027	$24.71
12	Hardware Kit - Door	91858	140101	$18.52
13	Brackets - Corner	91928	-
14	Kit - Ring & Gasket	96010	140041	$35.09
15	Tank Cover - Bottom 10 Gal Use 93610 Tank Cover - Upper 10 Gal Use 93610 Shroud Kit - 10 Gal	91238 91239 93610	- - -
15A	Pan - Drawn	93871	-
26	Valve - Pressure Relief, 1/2 NPT 150 PSI	91604	140012	$32.29
28	Eco / T-Stat - Assy	91447	140046	$19.45
29A	Plug - Drain 1/2 Use 91857 Plug - Drain 1/2 (2 Pk)	91561 91857	- 140102	$ 8.88
30	Valve - Pressure Relief (3/4 NPT 150 PSI) Valve - Pressure Relief (1/2 NPT 150 PSI)	90028 91604	- 140012	$32.29
31	Switch Kit - 12 VDC - Combo	91230	140371	$15.03
33	Thermal Cut-Off - 190 Degree	93866	140150	$28.22
NS	Kit - Inner Tank	91060	-
NS	T-Stat - 130 Degree - Front Mount	91470	140011	$16.51
NS	Rubber Grommet - Gas Line	92610	-
NS	Thermostat - Electronic Adj	91305	140016	$51.34
