GC6A6 Diagram
+2

ATWOOD GC6A6

Home/Store/RV CATALOG/APPLIANCES/Water Heater Diagrams
SKU GC6A6
$0.00
GHC6A6
Component
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
ATWOOD GC6A6
Home/Store/RV CATALOG/APPLIANCES/Water Heater Diagrams
Product Details
Brand: Atwood
# Description Mfg # Part # Price

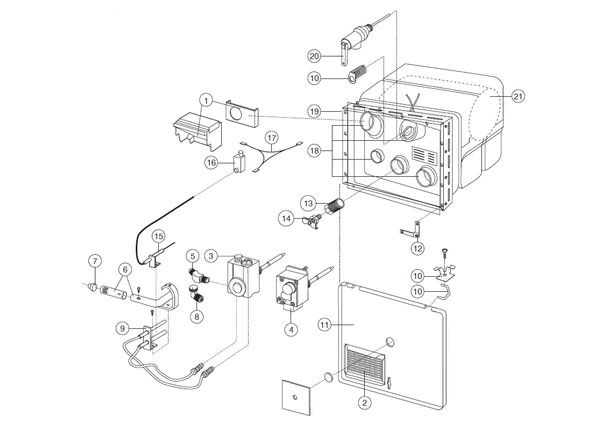

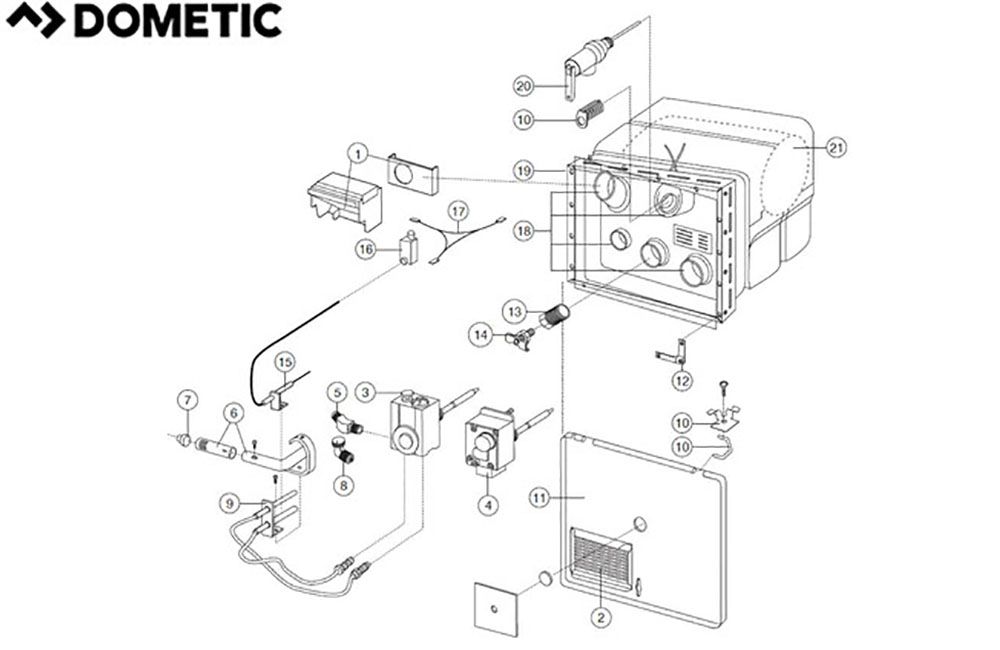

1 Flue Box - Assembly 90960 -
2 Grille - Only - New Style 92640 -
3 T-Stat - Robertshaw, 3/8 NPT x 3/8 NPT 91602 -
4 T-Stat - White Rodgers Use 91602 91601 -
5 Elbow - 1/4 NPT x 3/8 Flair 91347 -
6 Burner Assy - Main 92615 140105 $40.65
7 Orifice - Main Burner Use Dometic Part# 92743 92742 -
8 Elbow - Main Burner Orifice 92741 -
9 Pilot Assembly - Use 91603

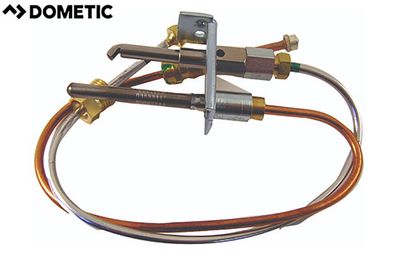

Pilot Assembly - Jade
92616
91603
-
140020

$43.89
10 Hardware Kit - Door 91858 140101 $18.90
11 Door - White - 6 Gal. Use 91386
Door - Access 6 Gal. PW
Door - Col. White - 6 Gal.
91502
91386
91514
-
140058
-

$59.81
12 Brackets - Corner (Set of 4) 91928 -
13 Plug - Drain 1/2 Use 91857
Plug - Drain 1/2 In. (2 Pk)
91561
91857
-
140102

$ 9.07
14 Valve - Petcock Drain 1/8 In 92698 -
18 Ring & Gasket 96010 140041 $35.82
19 Pan - Drawn 91796 -
20 Valve - Pressure Relief, 1/2 NPT 150 PSI 91604 140012 $32.94
21 Cover - Styrofoam Tank - Top Use 92220
Cover - Tank - Bottom Use 93100
Cover - Styrofoam Tank - Bottom Use 92221
Cover - Tank - Top Use 93100
Cover Kit - Tank
91240
92220
91241
92221
93100
-
-
-
-
-





NS Jade Orifice - Fits #91603 Pilot 91285 -
NS Inner Tank 91591 -
NS Grommet - Rubber, Gas Line 92610 -
NS Adapter - Inverted Flare 92973 -
