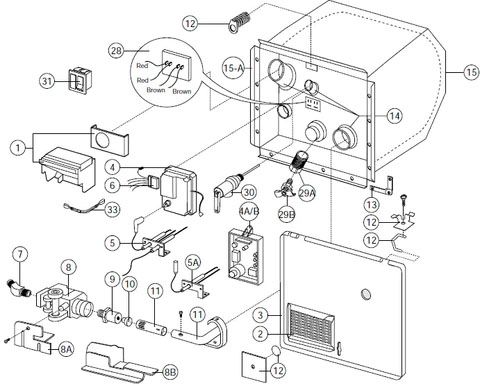

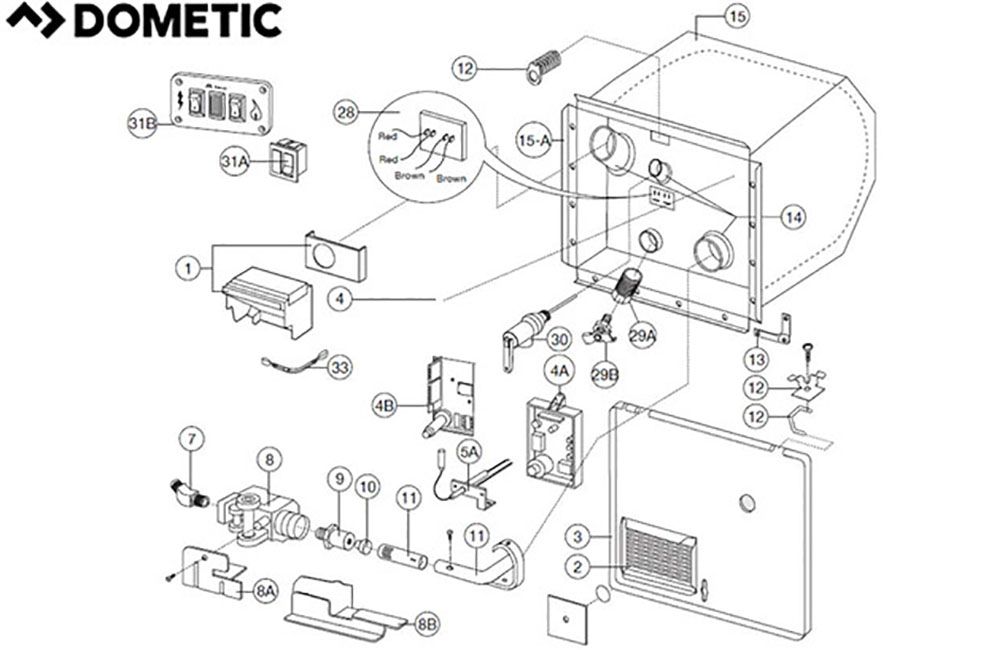

GC10A4E Diagram

ATWOOD GC10A4E

Home/Store/RV CATALOG/APPLIANCES/Water Heater Diagrams
SKU GC10A4E
$0.00
GC10A4E
Component
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
ATWOOD GC10A4E
Home/Store/RV CATALOG/APPLIANCES/Water Heater Diagrams
Product Details
Brand: Atwood
# Description Mfg # Part # Price
1 Flue Box - Assembly 90960 -
2 Grille - Extended (NLA)
Grille Only - New Style Door
90002
92640
-
-
3 Door w/Grill - Pol. White 10 Gal
Door w/Grill - Col. White 10 Gal
Door w/Grill - Col. Wht 10 Gal, Flush-Mnt
93986
93993
94231
140063
-
-
$59.20
4B PC Board Potted - Combo Use 91365
Potted Circuit Board - Kit w/Fuse
93851
91365
140004
140004
$263.44
$263.44
5A Electrode - (Local Sense) 93868 140152 $43.73
6 Harness - Wiring Combo Use Dometic 93315 93191 -
7 Elbow - 45 Degree (3/8 x 3/8) 91044 -
8A Bracket - Gas Valve Use 94787 93862 -
8B Bracket - Gas Valve - One Piece
94787

-

8 T-Stat - Gas Use 93870
Valve - White Rodgers Use 93844
Solenoid Valve - White Rodgers See Notes for use#s
Gas Valve Assembly - w/Orifice 10Gal
93869
93870
93844
92089
-
-
-
140189



$190.57
9 Holder - Orifice 91563 -

10 Orifice - Main Burner Use 93915
Orifice - Main Burner
93914
93915
-
-
11 Burner - Main 96206 -
12 Hardware Kit - Door 91858 140101 $18.90
13 Brackets - Corner 91928 -
14 Kit - Ring & Gasket 96010 140041 $35.82
15 Tank Cover - Bottom 10 Gal Use 93610
Tank Cover - Upper 10 Gal Use 93610
Shroud Kit - 10 Gal
91238
91239
93610
-
-
-

15A Pan - Drawn 93871 -
26 Valve - Pressure Relief, 1/2 NPT 150 PSI 91604 140012 $32.94
28 Eco / T-Stat - Assy 91447 140046 $19.85
29A Plug - Drain 1/2 Use 91857
Plug - Drain 1/2 (2 Pk)
91561
91857
-
140102

$ 9.07
30 Valve - Pressure Relief (3/4 NPT 150 PSI)
Valve - Pressure Relief (1/2 NPT 150 PSI)
90028
91604
-
140012

$32.94
31 Switch Kit - 12 VDC - Combo 91230 140371 $15.34
33 Thermal Cut-Off - 190 Degree 93866 140150 $28.80
NS Kit - Inner Tank 91060 -
NS T-Stat - 130 Degree - Front Mount
91470 140011 $16.85
NS Rubber Grommet - Gas Line 92610 -
NS Thermostat - Electronic Adj 91305 140016 $56.59
Show More
You May Also Like
92615

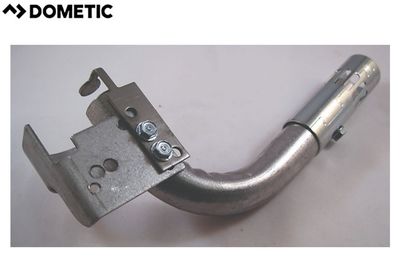

A BURNER MAIN 6 GALLON PILOT
A BURNER MAIN 6 GALLON PILOT
Atwood Main Burner 6-Gallon. Fits Pilot Models: GC6A, GC6A-3, GC6A-6, GC6A-7, G6A, G6A-2, G6A-3, G6A-6, G6A-6P, G6A-7, G6A-7P, GH6-3, GH6-6, GH6-7, GC6AA-7, GC6AA-7P, GC6AA-8, GC6AA-8P, G10B, G10C, & Electronic Models. GC10-1E, GC10-2E, GH10-2E, GH10-3E.
SKU 140105
$40.65
91603

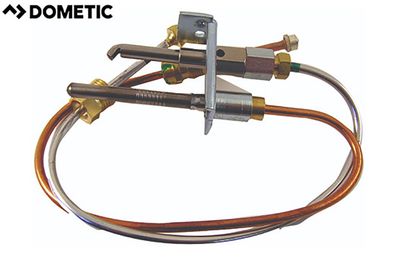

PILOT ASSEMBLY
PILOT ASSEMBLY
Fits all Atwood water heaters w/pilot ignition.
SKU 140020
$43.89

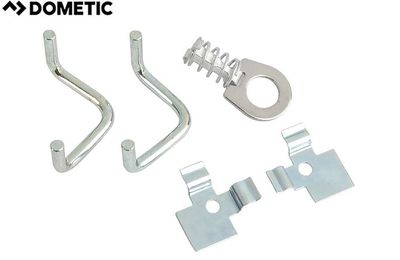

91858

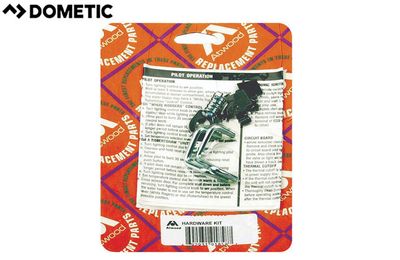

DOOR HARDWARE KIT
DOOR HARDWARE KIT
For all Atwood water heater doors.
SKU 140101
$18.90

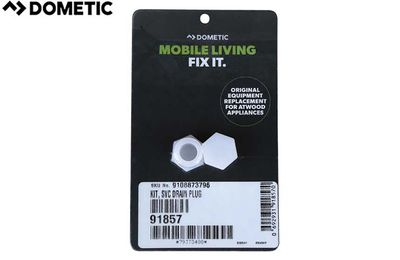

91857 Plug

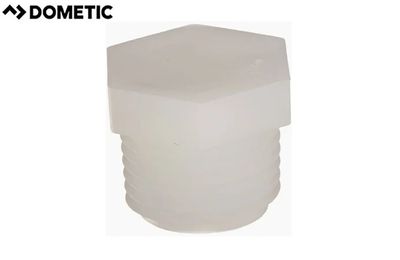

PLUG KIT - PLASTIC DRAIN
PLUG KIT - PLASTIC DRAIN
Fits all Atwood water heaters. 1/2" (2 Pack)
SKU 140102
$9.07
96010 Gasket, Seal

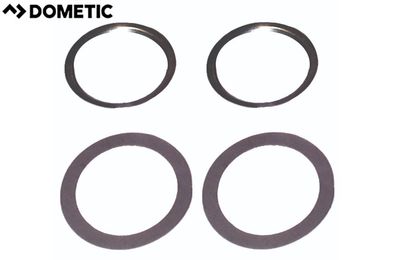

GASKET AND RING SEAL
GASKET AND RING SEAL
Ring & Gasket Kit to suit all Atwood Water Heaters EXCEPT G610-3E and GH610-3E.
SKU 140041
$35.82

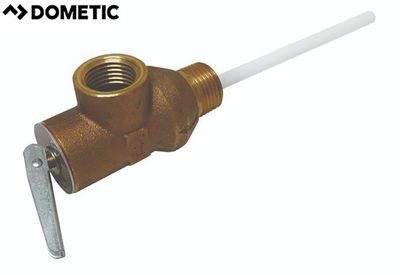

RELIEF VALVE (1/2")
