AC BLOWER - COLEMAN 7900 SERIES FURNACE
Product Details

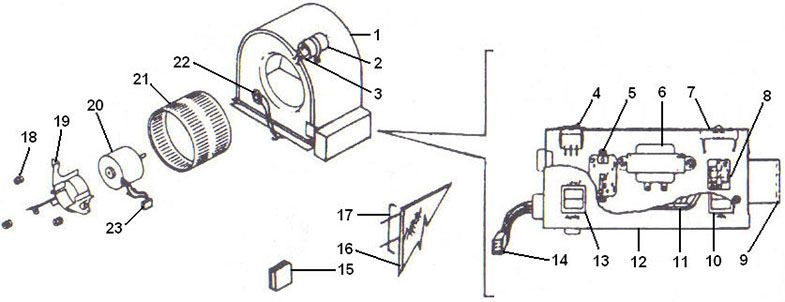

| # | BLOWER MODEL | 7900-6821 2-3 Tons A/C |
7900-6831 2-3 Tons A/C |
7900-6841 2-4 Tons A/C |
PART # | PRICE |
| 1 | Scroll | 7900-580 | 7900-551 | - | ||
| 2 | Run Capacitor | 1499-4461 * 7.5 Mfd. - 370V. | 102114 | $ 3.34 | ||
| 3 | Cover - Capacitor | 2632-180 | - | |||
| 4 | Switch - Speed Selector (Rocker Type) | 3110-3331 | 232143 | $21.12 | ||
| 5 | Blower Relay * (24V. - SPDT) | 6313-2281 * RBM #84-10103-301 | - | |||
| 6 | Transformer (120V./24V. -40VA.) |
2940-3541 *BASLER #BE17140-EEK * ESSEX #591-406800 | - | |||
| 7 | Resister (150 OHMS - 10 WATT) | 7900-5091 | None | - | ||
| 8 | Sequencer | S-7670-3071 * TOD #12510-304982 | None | - | ||
| 9 | Mount Bracket | 7900-165 | 7900-170 | 7900-159 | - | |
| 10 | Switch - Heat/Cool | 7670-3521 * CARLING #TGD0411-7B-B | None | - | ||
| 11 | Decal | 1539-019 | None | - | ||
| 12 | Cover - Control Box | 7900-161 | 7900-169 | - | ||
| 13 | Switch - Cont./Auto. | 7670-3531 *CARLING #TGA0 401-TB-B | None | - | ||
| 14 | Connector Plug - (9-Wire) | 7680-348 (x2) | - | |||
| 15 | Thermostat | None | None | 7670-3681 RS #65A-143-239 | - | |
| 16 | Filter - (19-3/8 x 35-3/4 x 1/4) | 1 | All | 7660-3401 | F-20 | $11.60 |
| Filter Kit - (Includes filter and two retainers) | 1 | All | K-20 | $22.24 | ||
| 17 | Retainer - Filter | 7670A3451 | R-20 | $ 4.83 | ||
| 18 | Mount - Motor (Rubber 3/Pkg.) | 7670-3551 | 232276 | $41.38 | ||
| 19 | Clamp - Motor | 8680-5391 | 8680-6391 | - | ||
| 20 | Motor | 7670-3239 *1/2 HP - 1075 RPM - 7.0 AMPS * RMR #C640CW48C | 232261 | $461.76 | ||
| 21 | Blower Wheel (Dia. - Width - Bore) | 1472-2751 10-5/8 x 7-1/8 x 1/2 LAU #027855-10 TORIN #CM1020-704-5 | 1472-2781 12-5/8 x 7-1/8 x 1/2 LAU #027855-12 TORRIN #CM1220-700-5 | - | ||
| 22 | Limit Switch - Upper | See Furnace Parts List | - | |||
| 23 | Connector Plug - 9-Wire | 7680-348 (x2) | - | |||
