4066 & 4084 SERIES

Home/Store/MH CATALOG/HEATING & COOLING/COLEMAN / REVOLV ILLUSTRATIONS
SKU 232276a
$41.38
4066, 4084
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
4066 & 4084 SERIES
Home/Store/MH CATALOG/HEATING & COOLING/COLEMAN / REVOLV ILLUSTRATIONS
Product Details

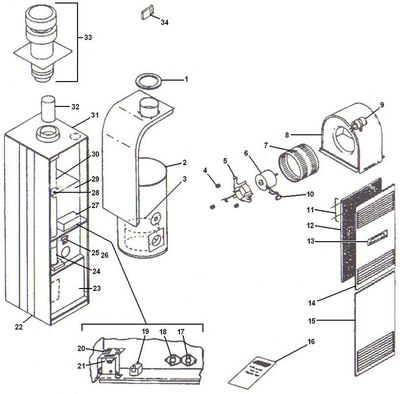

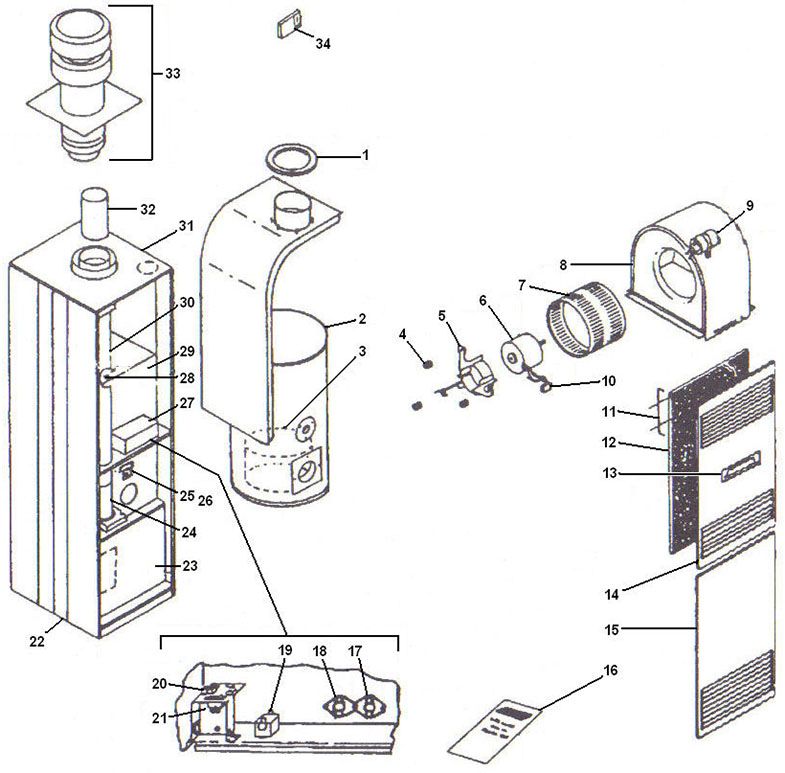

# DESCRIPTION MODELS REQ. MFG PART # PRICE
1 Gasket - Heat Exchanger All 1 7945-3011 -
2 Heat Exchanger - (with Gaskets) All 1 4084-5751 -
3 Fire Box All 1 4084-5141 -
4 Mount - Motor (3/Pkg.) All 1 7670-3551 232276 $41.38
5 Clamp - Motor All 1 7670-6391 -
6 Motor - This motor is a new "high efficiency"
replacement. It is a permanent split capacitor
(PCS) design for the previously produced shaded
pole design. This motor will use less electricity
(lower AMP draw) but produce enough torque
for the fan to do the work that is required. To
make installation similar, we have provided the
capacitor with the motor so that you only have to
work with similar leads to the original motor.
4066 1 7966-311P 232258 $315.40
Motor - (1/6 HP-1100 RPM-8.2 A.) Replaced by 232258 4066 1 7966-3119 -
Motor - (1/6 HP-1050 RPM-10.0 A.) 4084 1 1468-2129 -
7 Blower Wheel - (10-5/8 x 7-1/8 x 1/2)
All
1
1472-2751
-
8 Scroll All 1 7966A530 -
9 Capacitor - (7.5 Mfd. 370V.) 4084 1 1499-4461 102114 $ 3.34
10 Connector - Plug All 1 7680-348 -
11 Retainer - Filter All 1 7670-3451 R-20 $ 4.83
12 Filter - (19-3/8 x 35-3/4 x 1/4) 1 All 7660-3401 F-20 $11.60
Filter Kit - (Includes filter and two retainers) 1 All K-20 $22.24
13 Decal - Coleman All 1 1539-1261 -
14 Panel - Upper All 1 7670A5231 -
15 Panel - Lower All 1 7670A5241 -
16 Envelope - Customer All 1 1972-794 -
17 Switch - Limit (0-150° C-120°) All 1 7995-3281 -
18 Switch - Fan (C-105° 0-85°) All 1 7956-3351 232142 $32.85
19 Receptacle All 1 4084-3101 -
20 Cap - Connector (with Wires-Control Box) All 1 4084-507 -
21 Switch - On-Off All 1 7681-3301 -
22 Casing - Assembly All 1 4084-585 -
23 Panel - (Coil Cavity 19-13/16") All 1 7656A5201 -
24 Tube - Combustion Air (Lower) All 1 4084A504 -
25 Plate - Observation (with Gasket) All 1 7706B5491 -
26 Gasket - Observation Plate All 1 7706A3171 -
27 Cover - Control Box All 1 7945-1351 -
28 Switch - Limit (Upper - Open 180° Manual Reset) All 1 7624A3591 232111 $25.06
29 Vestibule All 1 4084-501 -
30 Tube - Combustion Air (Upper) All 1 4084A100 -
31 Casing - Top All 1 4084-5051 -
32 Shield - Flue All 1 4084-160 -
33 Roof Jack All 1 --- -
34 Thermostat - (Adj. Ant.) All 1 7700-3751 -
