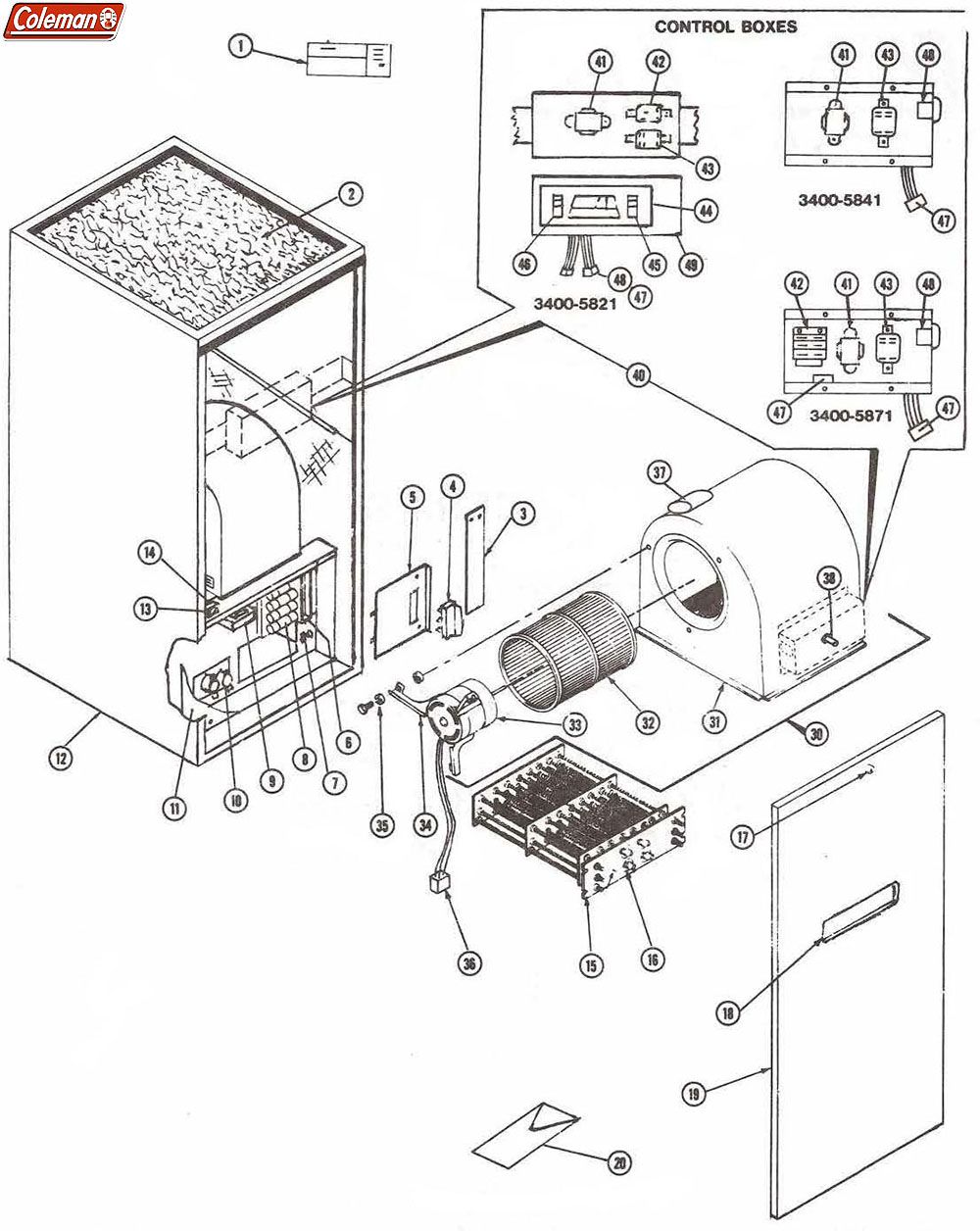

3400 SERIES - ELECTRIC FURNACE (Coleman)
SKU 3400
$0.00
3400-811, 3400-812, 3400-815, 3400-818, 3400-820, 3400-823
Item
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
3400 SERIES - ELECTRIC FURNACE (Coleman)
Product Details
Brand: COLEMAN
| # | DESCRIPTION | No. REQ. |
MODEL(S) USED ON |
MFG # | PART # | PRICE |
| 1 | Thermostat - (Htg. 24 V.) | 1 | All | 3110-3771 | - | |
| 2 | Filter - (20 x 20 x 1) | 1 | All | 1214-2521 | - | |
| 3 | Cover - (Service Entrance) | 1 | All (Except 3400-811) |
3400-1311 | - | |
| Cover - (Service Entrance) | 3400-1301 | - | ||||
| 4 | Disconnect Plug | 1 | All (Except 3400-811) |
3400-3291 | - | |
| Disconnect Plug | 1 | 3400A3281 | - | |||
| 5 | Fuse Door | 1 | All (Except 3400-811) |
3400-1141 | - | |
| Fuse Door | 1 | All (Except 3400-811) |
3400-1161 | - | ||
| 6 | Disconnect Assy. - (Less Fuses - Incl. Item 4) | 1 | 3400-811 | 3400-3281 | - | |
| Disconnect Assy. - (Less Fuses - Incl. Item 4) | 1 | 3400-812, 815 | 3400-3261 | - | ||
| Disconnect Assy. - (Less Fuses - Incl. Item 4) | 1 | 3400-818, 820, 823 | 3400-3271 | - | ||
| 7 | Ground Lug - (Small) | 1 | All | 1216-229 | - | |
| Ground Lug - (Large) | 1 | 1216-231 | - | |||
| 8 | Fuse - (30 AMP BUSS) | 2 | 3400-812, 815 | 6804-3131 | - | |
| Fuse - (40 AMP BUSS) | 2 | 3400-812, 818 | 3112-3131 | - | ||
| Fuse - (60 AMP BUSS) | 2 | 3400-811, 8715, 818 | 6804-3161 | - | ||
| Fuse - (60 AMP BUSS) | 4 | 3400-820, 823 | 6804-3161 | - | ||
| 9 | Transformer - (240V / 24V BE#13736001) | 1 | All | 3400-3841 | 232197 | $52.85 |
| 10 | Sequencer | 1 | 3400-811, 812 | 3400-3561 | 232187 | $68.45 |
| Sequencer | 1 | 3400-815, 818 | 3400-3571 | 232188 | $89.41 | |
| Sequencer | 1 | 3400-3581 | 3400-3581 | 232185 | $147.76 | |
| 11 | Cover - (Electrical Box) | 1 | 3400-811 | 3400-503 | - | |
| Cover - (Electrical Box) | 1 | 3400-812 | 3400-442 | - | ||
| Cover - (Electrical Box) | 1 | 3400-815 | 3400-506 | - | ||
| Cover - (Electrical Box) | 1 | 3400-818 | 3400-512 | - | ||
| Cover - (Electrical Box) | 1 | 3400-820, 823 | 3400-513 | - | ||
| 12 | Casing Assembly | 1 | All | 3400-585 | - | |
| 13 | Fan Switch - (Rocker - SPDT) | 1 | All (Exc. 3400-811, 812) |
3110-3331 | 232143 | $21.12 |
| 14 | Wire Bundle | 1 | 3400-811, 812 | 3400-530 | - | |
| Wire Bundle | 1 | 3400-815, 818 | 3400-531 | - | ||
| Wire Bundle | 1 | 3400-820, 823 | 3400-532 | - | ||
| 15 | Heat Element - 10 KW - use 3300A4111 | 1 | 3400-811 NLA | 3400-3321 | - | |
| Heat Element - 12 KW - use 3300A4131 | 1 | 3400-812 NLA | 3400-3341 | - | ||
| Heat Element - 15 KW | 1 | 3400-815 NLA | 3400-3351 | - | ||
| Heat Element - 18 KW | 1 | 3400-818 NLA | 3400-3361 | - | ||
| Heat Element - 20 KW | 1 | 3400-820 NLA | 3400-3371 | - | ||
| Heat Element - 23 KW | 1 | 3400-823 NLA | 3400-3381 | - | ||
| 16 | Limit Switch - (Open 175º Close 125º) | 2 | 3400-811, 812 | 3400-3151 | - | |
| Limit Switch - (Open 175º Close 125º) | 3 | 3400-815, 818 | 3400-3151 | - | ||
| Limit Switch - (Open 175º Close 125º) | 4 | 3400-620, 623 | 3400-3151 | - | ||
| 17 | Latch | All | 3110-3171 | - | ||
| 18 | Coleman Emblem | 1 | All | 1539-035 | - | |
| 19 | Front Panel - (with Latch) | 1 | All | NLA | - | |
| 20 | Customer Envelope | 1 | All | 1971-615 | - |
| BLOWER CHART | ||||||||
| # | DESCRIPTION | 3400-811 3400-812 3400-815 |
3400-818 3400-820 3400-823 |
BLOWERS FOR AIR CONDITIONING AND HEAT PUMP APPLICATIONS |
PART # | PRICE | ||
| 30 | Blower | 3400-590 | 3400-591 | 3400-6901 | 3400-7901 | - | ||
| 31 | Scroll | 3400-536 | 3300-537 | 3300-538 | - | |||
| 32 | Blower Wheel
(Dia.-Width) |
3400-3601 (9-1/2 x 8) | 3400-3611 (10-5/8 x 8) | 3300-3611 (12-5/8 x 8) | - | |||
| 33 | Motor | 1468-1209
230 V. 60Hz. 2.2 Amps |
1468-1209
230 V. 60Hz. 2.5 Amps |
3400-3219
230 V. 60Hz. |
3400-3229
230 V. 60Hz. |
- | ||
| 34 | Motor Clamp | 7670-5391 | 8680-5391 | - | ||||
| 35 | Motor Mount
(Pk'd 3) |
7670-3551 | - | |||||
| 36 | Blower Plug | 3400-629 (with Wires) 3400-629 (without Wires) | - | |||||
| 37 | Capacitor
(Mid. - Volts) |
None | 1499-4461 or 1499-5071
1499-346 (7.5-370) |
1499-4601 or 1499-5111
1499-361 (10-440) |
- | |||
| 38 | Selector
Switch |
None | 3110-3051
3 Position - 4 Terminals - No Knob |
- | ||||
| CONTROL BOXES | PART # | PRICE | ||||
| 40 | Control Box | 3400-5821
2 Wire 2 - 5 Ton AC |
3400-5841
4 Wire 2 - 5 Ton AC |
3400-5871
7 Wire Heat Pump |
- | |
| 41 | Transformer | 3300-3861 Basler #BE-13736-002 (240/24 V. 50/60 Hz. Coil) | - | |||
| 42 | Thermostat
Reversing Relay |
3110-3311
(4 Terminals) |
None | 3110-3861
24 V. 50/60 Hz. Coil |
- | |
| 43 | Blower Relay | 3110-3301 24 V. 50/60 Coil | 231348 | $26.19 | ||
| 44 | Decal | 1539-022 | None | - | ||
| 45 | System Switch - (Heat/Cool) | 3110-3321 | None | - | ||
| 46 | Fan Switch (On/Auto) | 3110-3331 | None | 232143 | $21.12 | |
| 47 | Wire Bundle | 3400-533 | 3400-517 | 3400-519 (Male)
3400-522 (Female) |
- | |
| 48 | Connector Cap | 3200-348 | - | |||
| 49 | Control Box Cover | 3400-177 | None | None | - | |
