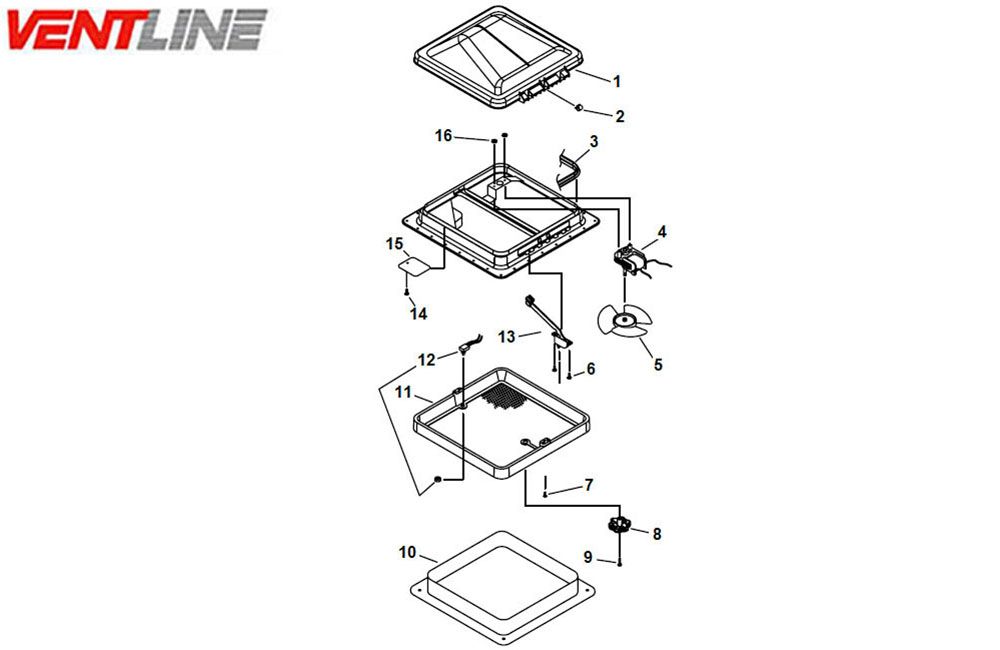

V2128 Diagram

VENTLINE V2128 VENT FAN

Home/Store/RV CATALOG/VENTS/Vent Fan Illustrations
SKU V2128
$0.00
V2128
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
VENTLINE V2128 VENT FAN
Home/Store/RV CATALOG/VENTS/Vent Fan Illustrations
Product Details
Brand: VENTLINE

# Description Mfg # Part # Price
1 Dome Assembly - White BVD0449-A01 520162 $22.71
Dome Assembly - Smoke BVD0449-A03 520173 $25.73
2 Clip - Spring VD0453-00 -
3 Seal - Dome BVD0455-01 520302 $ 9.91
4 Motor - UL/CSA listed (Replaced by BCD0391-01) BCD0190-00 BCD0190-00
Motor BCD0390-01 BCD0390-01 $37.55
5 Blade - Fan BVA0311-02 BVA0311-02 $10.25
6 Screw - Machine #10 - 32 VD0452-00 -
7 Screw - Sheet metal #8 VA0262-00 VA0262-00 $ .18
8 Knob - Operator w/screw (Plastic) BVD0421-00 520151 $ 6.82
9 Screw - Machine #8 - 32 V0423-01 -
10 Garnish - Ceiling (See Chart Below) VA0445TAB VA0445TAB Chart
11 Screen Frame - Birch White BVA0444-32 BVA0444-32 $11.97
Screen Frame - Polar White BVA0444-42 BVA0444-42 $11.97
12 Switch - Push button w/Knurled nut BV0199-03 BV0199-03 $10.77
13 Operator - Knob, Screw (Items 8,9,13) BVD0462-00 520248 $13.88
14 Screw - Sheet metal #8 C0119-00 -
15 Cover - Wiring compartment V0494-02 -
16 Nut - Hex #8 - 32 C0159-00 C0159-00 $ .11

CEILING GARNISH VENTLINE
For radius corner 14-1/4" x 14-1/4" Roof Ventadomes.
Part
#
Birch
White
Polar
White
Roof
Thickness
Leg
Length
Price
VA0445 -25 -33 7/8" - 2" 1-7/8" $ 5.10
VA0445 -26 -34 1-7/8" - 3" 2-1/8" $ 5.10
VA0445 -27 -35 2-7/8" - 4" 3-1/8" $ 5.63
VA0445 -28 -36 3-7/8" - 5" 4-1/8" $ 6.35
VA0246 -29 -37 4-7/8" - 6" 5-1/8" $10.17
