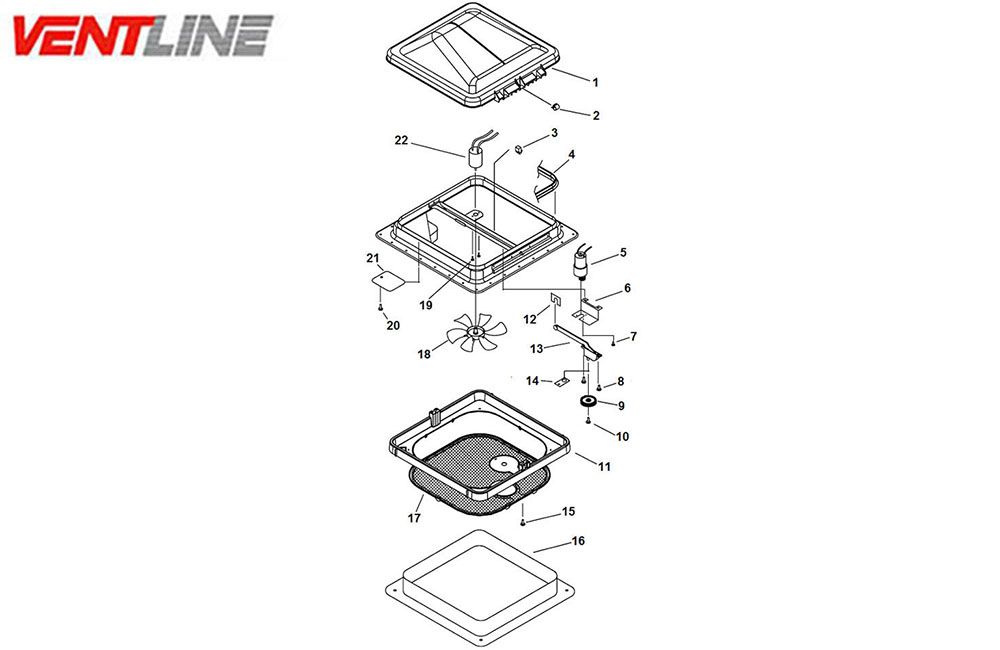

V2119 Diagram

VENTLINE V2119 VENT FAN

Home/Store/RV CATALOG/VENTS/Vent Fan Illustrations
SKU V2119
$0.00
V2119
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
VENTLINE V2119 VENT FAN
Home/Store/RV CATALOG/VENTS/Vent Fan Illustrations
Product Details

# Description Mfg # Part # Price
1 Dome Assembly - White BVD0449-A01 520162 $22.71
Dome Assembly - Smoke BVD0449-A03 520173 $25.33
2 Clip - Spring VD0453-00 -
3 Retainer - Wire VD0117-00 -
4 Seal - Dome BVD0455-01 520302 $ 9.81
5 Gear Motor - w/Pinion gear VB0204-00 -
6 Bracket - Gear motor (White) BVA0495-46 BVA0495-46 $ 8.93
Bracket - Gear motor (Almond) BVA0495-21 -
Bracket - Gear motor (Mill)(Replaced by BVA0495-00) BVA0495-03 -
Bracket - Gear motor (Mill) BVA0495-00 -
7 Screw - Metric M3 x 6 VC0270-00 VC0270-00 $ .44
8 Screw - Sheet metal 310 - 32 VD0452-00 -
9 Gear - Plastic VD0121-00 -
10 Screw - #8-32 V0385-00 -
11 Screen Base - w/Screen (Polar White) BVC0573-42 BVC0573-42 $15.44
Screen Base - w/Screen (Birch White) BVC0573-32 BVC0573-32 $15.44
12 Clip - Spring VD0453-00 -
13 Operator - Knob, Screw (Items 4,7,9) BVD0462-00 520248 $13.88
14 Keeper - Gear VB0384-00 -
15 Screw - Sheet metal #8 VA0262-00 VA0262-00 $ .18
16 Garnish - Ceiling (See Chart Below) VA0445 TAB VA0445 TAB Chart
17 Screen - Birch White BVD0434-31 -
Screen - Polar White BVD0434-41 -
18 Blade - Fan BVD0215-00 500686 $11.85
19 Screw - Machine M2.6 -
20 Screw - Sheet metal C0119-00 -
21 Cover - Wiring compartment V0494-03 -
22 Motor - 12 volt DC BVD0218-00 520256 $35.38
Part
#
Birch
White
Polar
White
Roof
Thickness
Leg
Length
Price
VA0445 -25 -33 7/8" - 2" 1-7/8" $ 5.10
VA0445 -26 -34 1-7/8" - 3" 2-1/8" $ 5.10
VA0445 -27 -35 2-7/8" - 4" 3-1/8" $ 5.63
VA0445 -28 -36 3-7/8" - 5" 4-1/8" $ 6.35
VA0246 -29 -37 4-7/8" - 6" 5-1/8" $10.17
