VENTLINE - NON-POWERED FAN
SKU V2092
$0.00
V2092, V2110
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
VENTLINE - NON-POWERED FAN

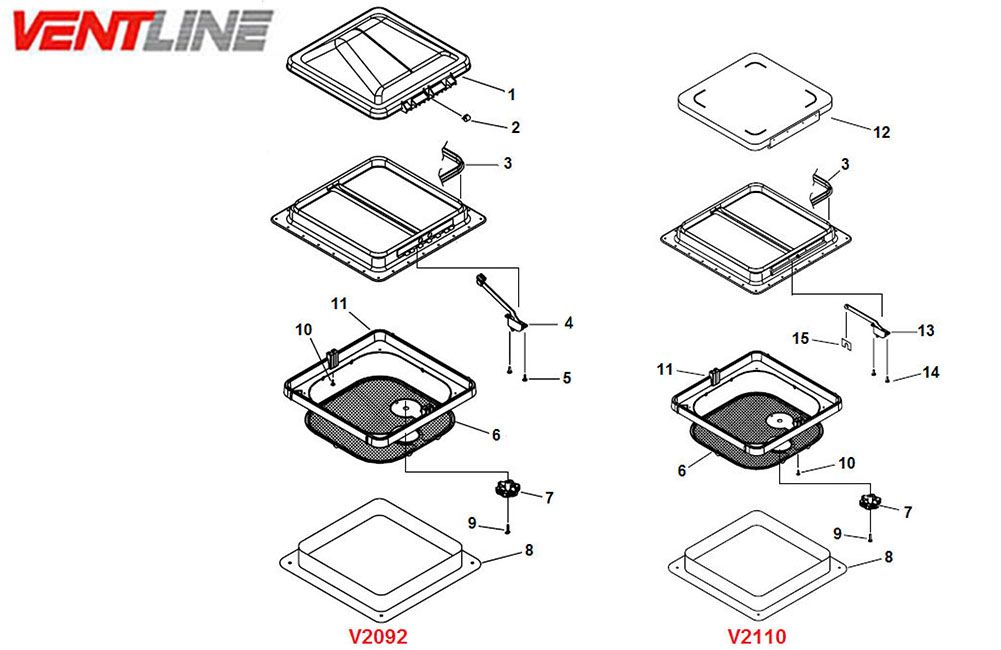

Product Details
| # | Description | Mfg # | Part # | Price |
| 1 | Dome Assembly - White | BVD0449-A01 | 520162 | $22.71 |
| Dome Assembly - Smoke | BVD0449-A03 | 520173 | $25.33 | |
| 2 | Clip - Spring | VD0453-00 | - | |
| 3 | Seal - Dome | BVD0455-01 | 520302 | $ 9.81 |
| 4 | Operator - Knob, Screw (Items 4,7,9) | BVD0462-00 | 520248 | $13.88 |
| 5 | Screw - Machine #10-32 | VD0452-00 | - | |
| 6 | Screen - Birch White | BVD0434-31 | - | |
| Screen - Polar White | BVD0434-41 | - | ||
| 7 | Knob - Operator w/screw (Plastic) | BVD0421-00 | 520151 | $ 6.82 |
| 8 | Garnish - Ceiling (See Chart Below) | VA0445TAB | VA0445TAB | Chart |
| 9 | Screw - Machine #8-32 | V0423-01 | - | |
| 10 | Screw - Sheet metal #8 | VA0262-00 | VA0262-00 | $ .18 |
| 11 | Screen Base - w/Screen (Birch White) | BVC0573-31 | 520367 | $18.05 |
| Screen Base - w/Screen (Polar White) | BVC0573-41 | 520207 | $18.18 | |

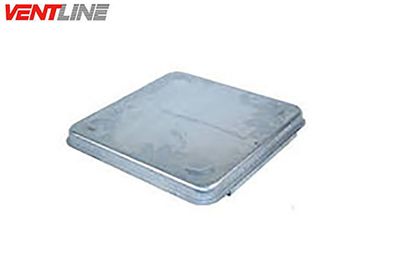

| 12 | Dome Assembly - Mill | BV0534-00 | 520185 | $22.23 |
| 13 | Operator - Knob, Screw (Items 4,7,9) | BV0115-04 | 520250 | $13.85 |
| 14 | Screw - Machine #10-32 | C0159-00 | - | |
| 15 | Clip - Friction | BVA0280-00 | - |
| CEILING GARNISH VENTLINE | ||
|---|---|---|
| For radius corner 14-1/4" x 14-1/4" Roof Ventadomes. | ||
| Part # |
Birch White |
Polar White |
Roof Thickness |
Leg Length |
Price |
| VA0445 | -25 | -33 | 7/8" - 2" | 1-7/8" | $ 5.10 |
| VA0445 | -26 | -34 | 1-7/8" - 3" | 2-1/8" | $ 5.10 |
| VA0445 | -27 | -35 | 2-7/8" - 4" | 3-1/8" | $ 5.63 |
| VA0445 | -28 | -36 | 3-7/8" - 5" | 4-1/8" | $ 6.35 |
| VA0246 | -29 | -37 | 4-7/8" - 6" | 5-1/8" | $10.17 |
