V2280 & V2281 - SIDE EXHAUST FANS
SKU V2280
$0.00
Available Components

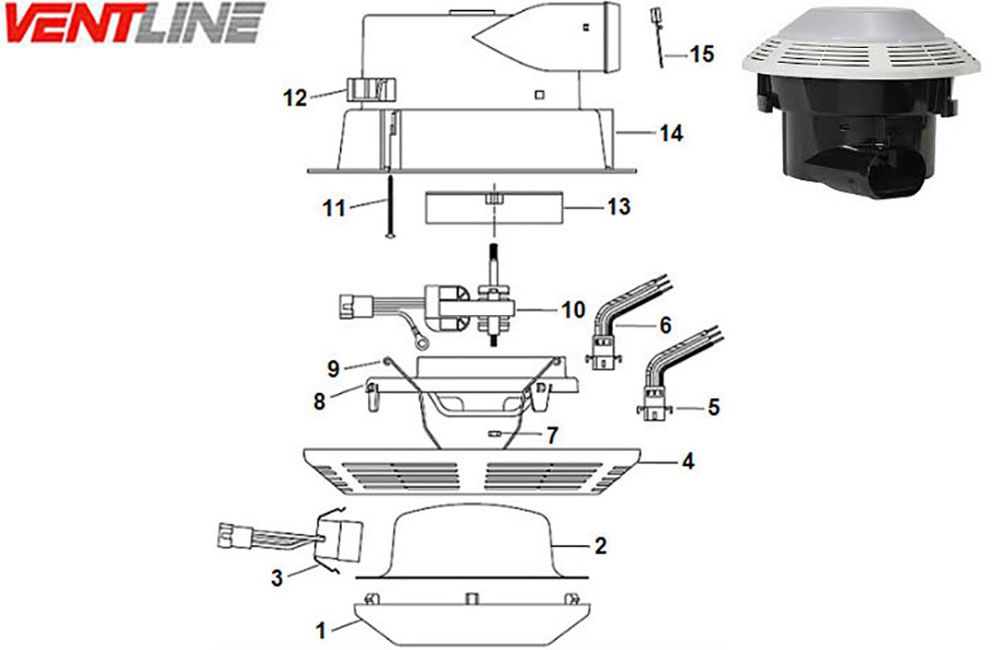

V2280 & V2281 - SIDE EXHAUST FANS
Product Details
| # | Description | Part # | Price |
| 1 | Lens - Light | VC0392-00 | $ 8.75 |
| 2 | Reflector - Light (White) | VC0393-46 | |
| Service Kit - 360 LED (V2281) | 990002-00 | $23.92 | |
| 3 | Socket Asm. - Lamp | VB0587-00 | |
| 4 | Grille - Air Intake | VC0391-00 | |
| Grille Asm - (Incl: lens, and springs) | VB0589-00 | $13.48 | |
| 5 | Pigtail - Lamp Wire | VC0321-00 | $ 3.15 |
| 6 | Pigtail - Fan Wire | VC0321-00 | $ 3.15 |
| 7 | Nut - #8-32 Hex | C0159-00 | $ .11 |
| 8 | Plate - Motor (V2280, 50 CFM) | VC0314-07 | NLA |
| Plate - Motor (V2280, 75 CFM) | VC0314-09 | NLA | |
| Plate - Motor (V2281, 50 CFM) | VC0314-17 | NLA | |
| Plate - Motor (V2281, 75 CFM) | VC0314-19 | NLA | |
| 9 | Spring - Grille Retainer | VC0395-00 | $ .61 |
| 10 | Motor - Fan (50 CFM) | BVC0367-00 | $36.94 |
| Motor - Fan (75 CFM) | BVC0369-00 | $36.94 | |
| 11 | Screw - #6-20x2" sheet metal | VC0324-02 | NLA |
| 12 | Clamp - Mounting | VC0316-00 | NLA |
| 13 | Impeller - White (50 CFM) | VC0323-01 | NLA |
| Impeller - Black (75 CFM) | VC0359-00 | NLA | |
| 14 | Housing | VC0390-00 | |
| 15 | Damper | VC0453-00 | $ 1.19 |
