T SERIES - RV RANGE HOOD
SKU T SERIES
$0.00
T SERIES
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
T SERIES - RV RANGE HOOD
Product Details
Brand: VENTLINE

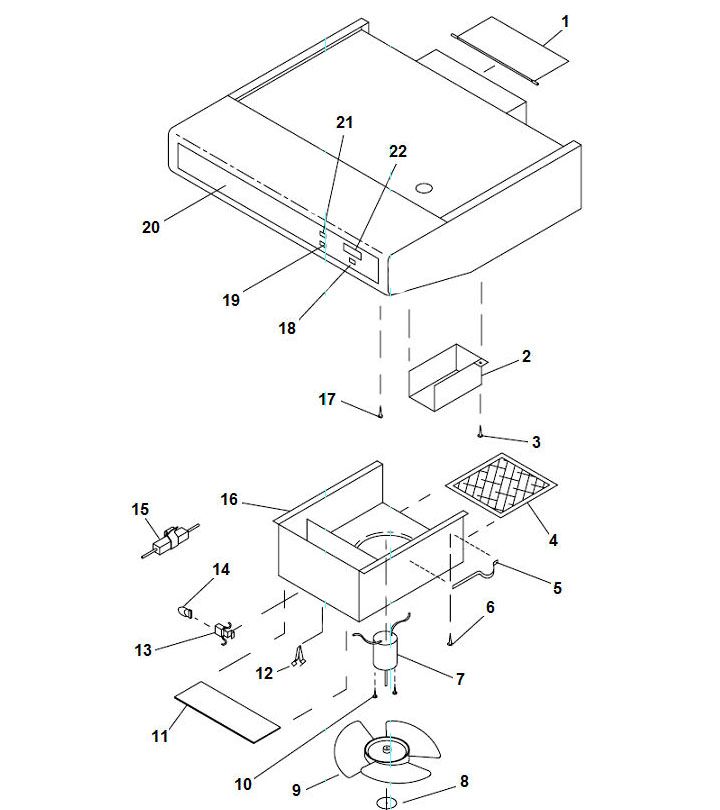

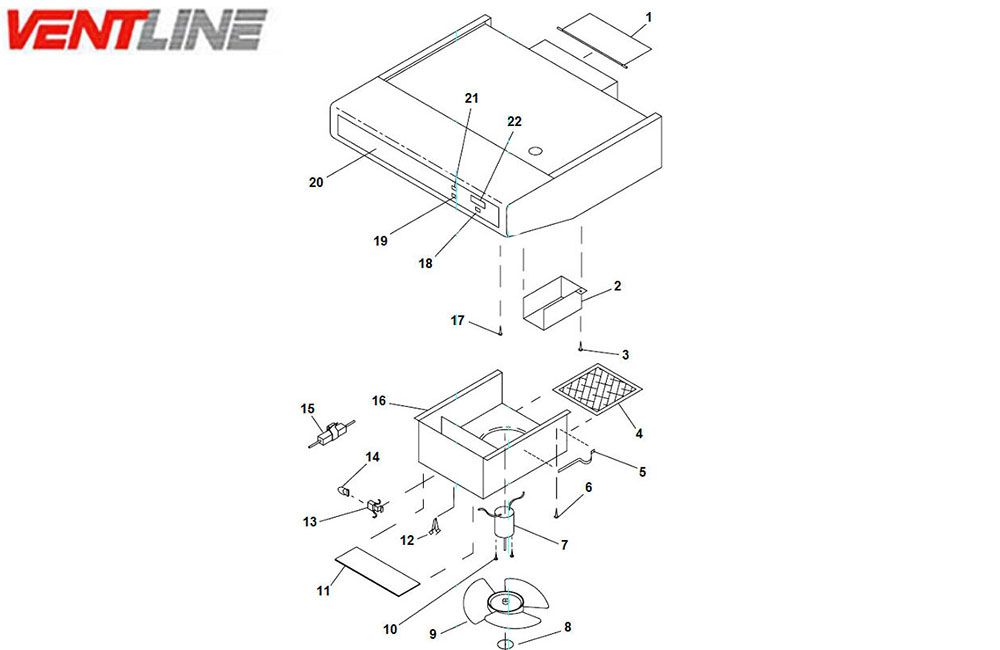

| # | Description | Mfg # | Part # | Price |
| 1 | Damper - Plastic (N/A for dustless models) | BCA0472-00 | BCA0472-00 | $10.79 |
| 2 | Cover - Junction box (for hood w/18" cabinet depth) | CB0314-02 | - | |
| Cover - Junction box (for hood w/20" cabinet depth) | CC0155-01 | - | ||
| 3 | Screw - #8 Sheet Metal | C0119-00 | - | |
| 4 | Filter - Aluminum Grease | BCC0246-00 | BCC0246-00 | $10.79 |
| Filter - Charcoal Grease (for Ductless Range Hoods) | BCC0248-00 | BCC0248-00 | $12.59 | |
| 5 | Spring - Damper lock (N/A for dustless models) | C0488-00 | - | |
| 6 | Screw - #8 Sheet Metal | C0119-00 | - | |
| 7 | Motor - 12 Volt DC | BVD0218-00 | 520256 | $35.38 |
| 8 | ||||
| 9 | Blade - Fan (7" dia, fots .091 dia shaft, CCW rotation) | BVD0216-00 | BVD0216-00 | $10.79 |
| 10 | Screw - Machine | M2.6 | - | |
| 11 | Lens - Lamp | BCC0179-00 | BCC0179-00 | $10.79 |
| 12 | Retainer - Filter/Lens | BCC0245-00 | - | |
| 13 | Socket - Lamp | BCB0267-02 | BCB0267-02 | $10.79 |
| 14 | Bulb - #921 Lamp | VA0415-00 | VA0415-00 | $ 3.93 |
| 15 | Resister - (2-speed fan only) | L7318-00 | L7318-00 | $12.08 |
| 16 | Housing - Blower | |||
| 17 | Screw - Green Ground | C0120-00 | C0120-00 | $ .11 |
| 18 | Switch - Generator (if used) | BL0112-00 | BL0112-00 | $10.79 |
| 19 | Switch - Lamp (Black) | BL0108-00 | BL0108-00 | $10.79 |
| Switch - Lamp (White) | BL0816-00 | - | ||
| 20 | Label - Hood nose | CC0248-00 | - | |
| 21 | Switch - Fan (Rocker) | |||
| 22 | Hourmeter - (if used) | L0155-00 | - |
