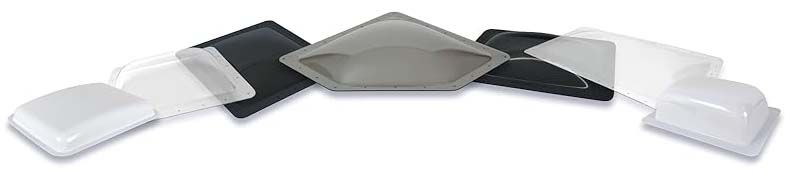

Skylites

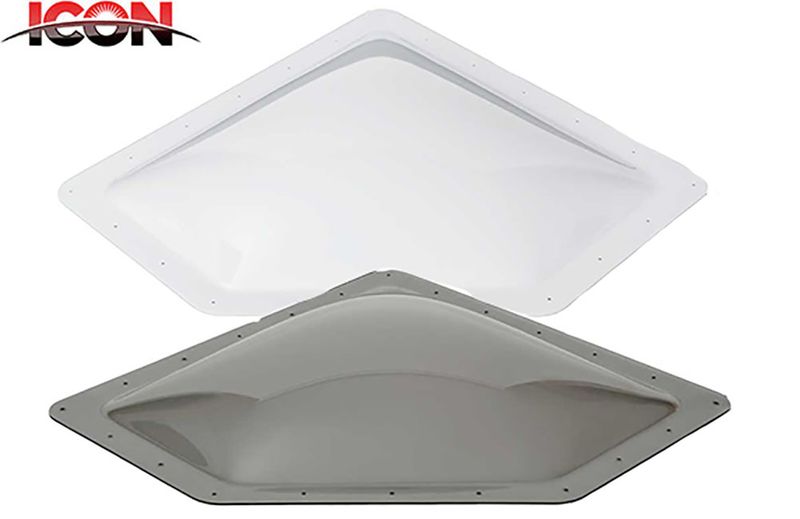

Dome dimensions: 24" x 12" x 4" Flange dimension: 28" x 15"

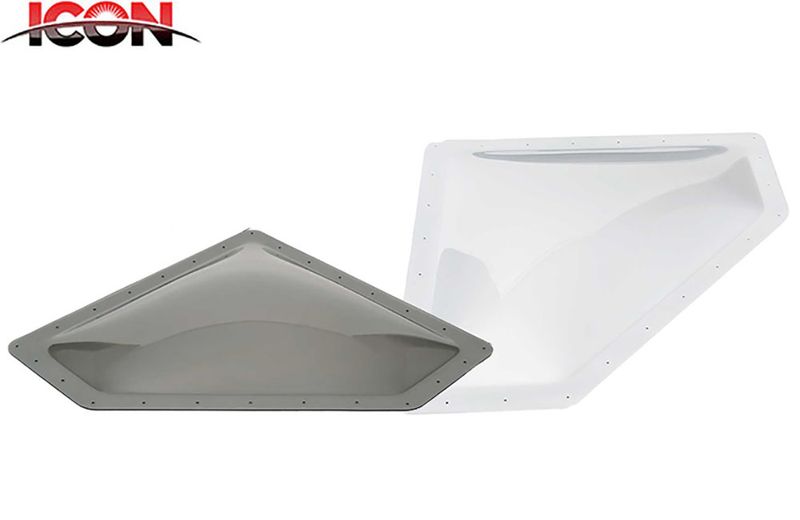

Dome dimensions: 28" x 10" x 4" Flange dimension: 32" x 13"

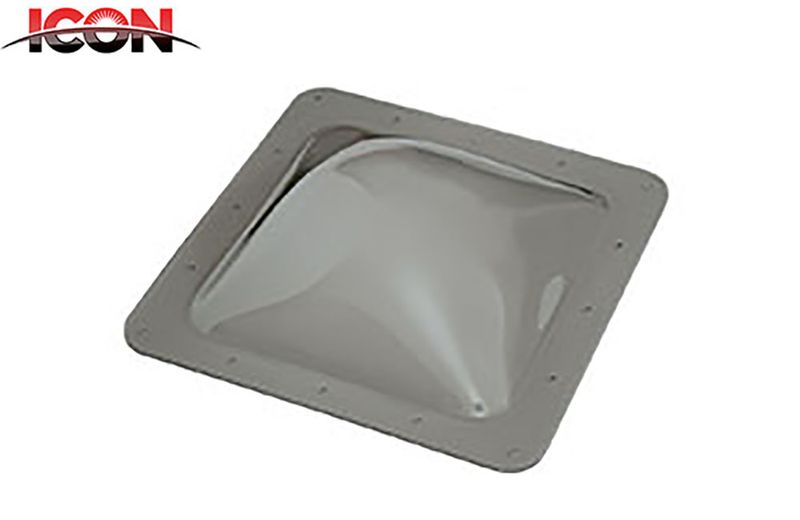

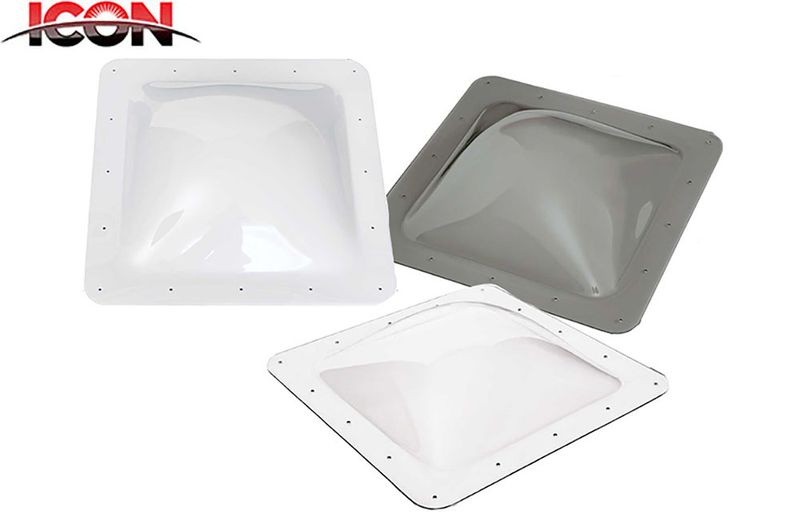

Dome dimensions: 14" x 14" x 4" Flange dimension: 18" x 18"

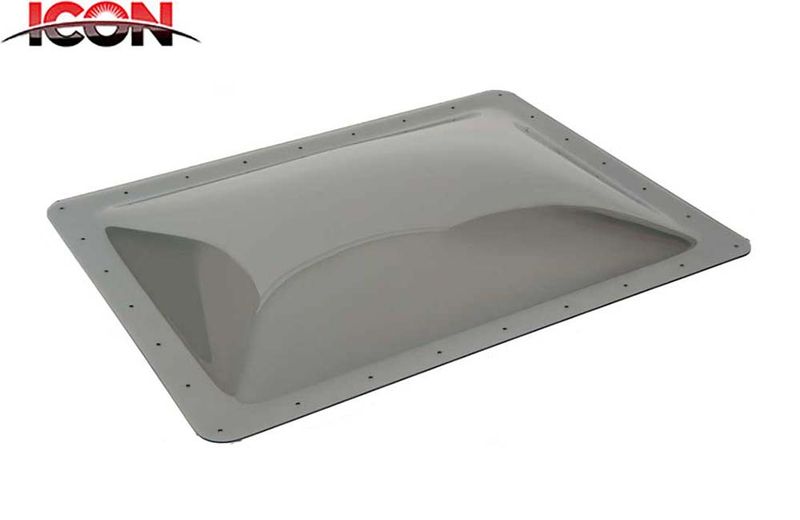

Dome dimensions: 30" x 22" x 4" Flange dimension: 34" x 26". Smoke

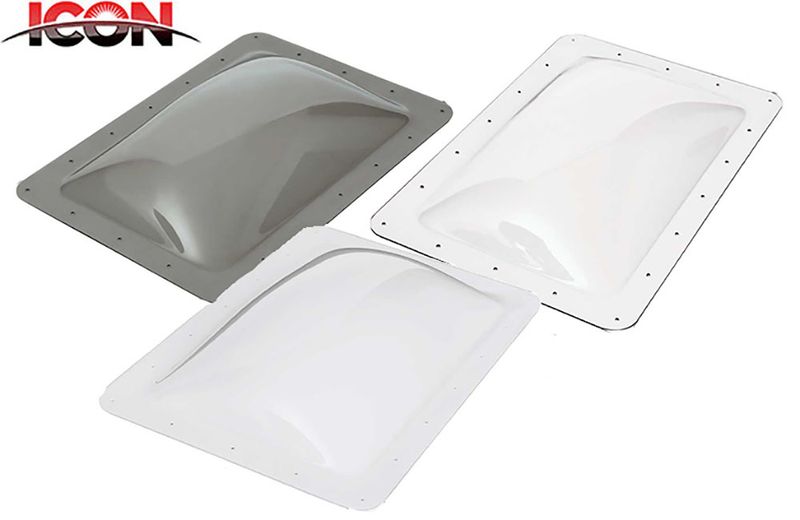

Dome dimensions: 22" x 14" x 4" Flange dimension: 26" x 18"

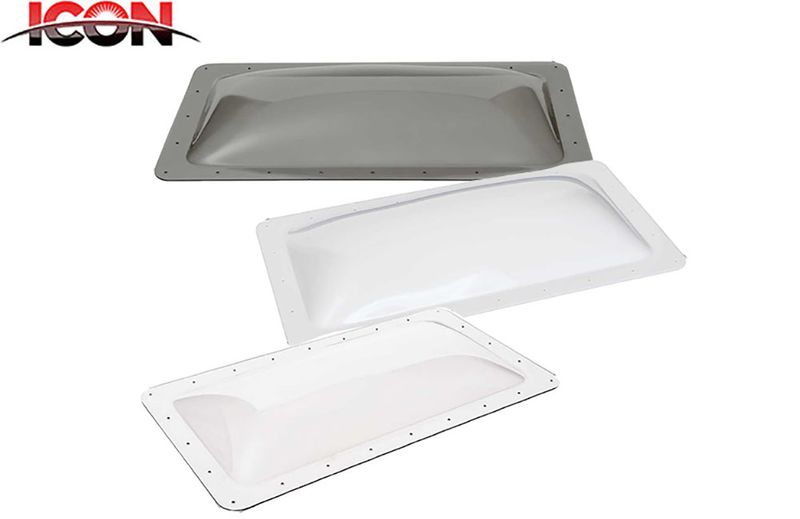

Dome dimensions: 30" x 14" x 4" Flange dimension: 34" x 18"

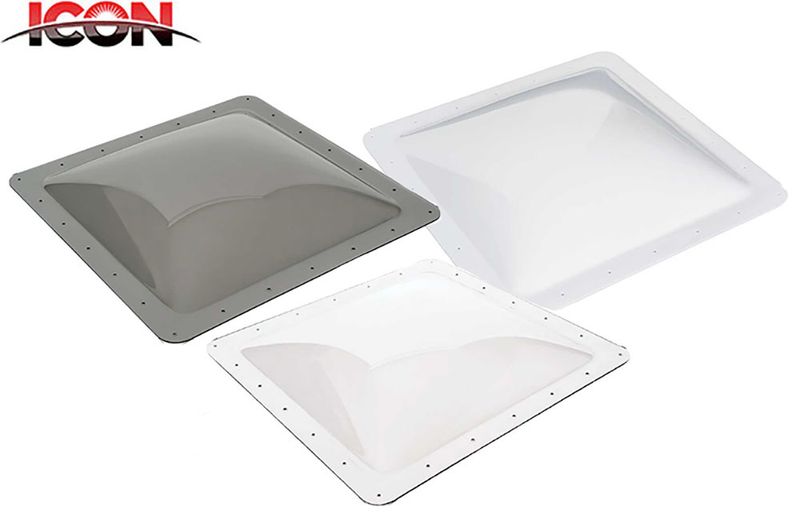

Dome dimensions: 22" x 22" x 4" Flange dimension: 26" x 26"

Dome dimensions: 22" x 14" x 2 or 5" Flange dimension: 24" x 16"

Dome dimensions: 22" x 14" x 4-3/4" Flange dimension: 24" x 16"

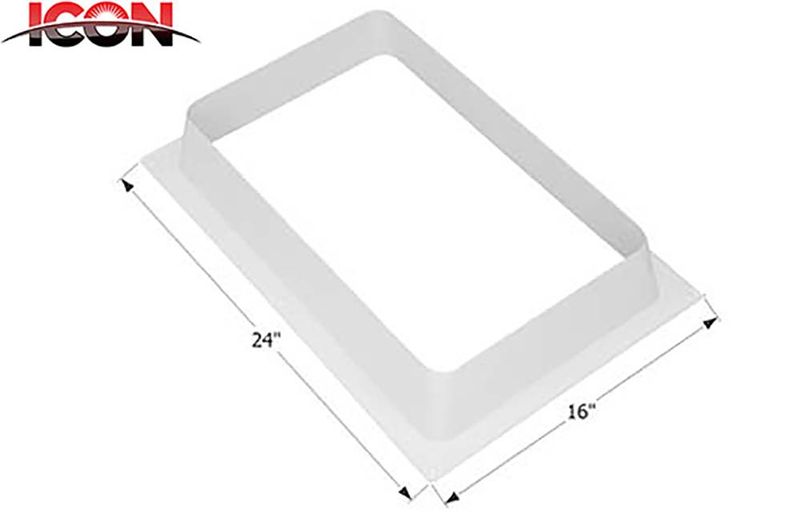

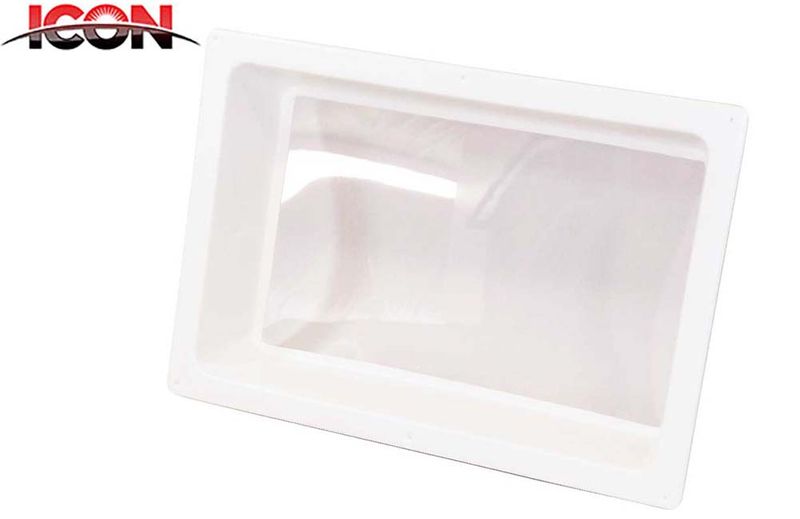

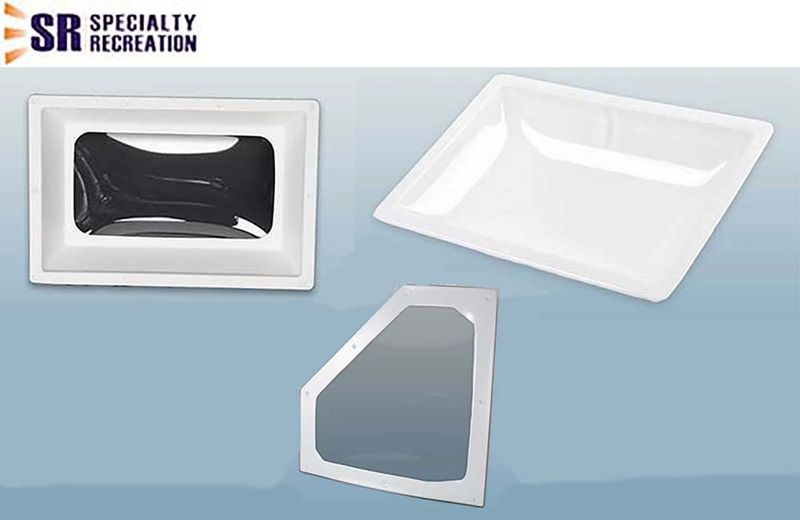

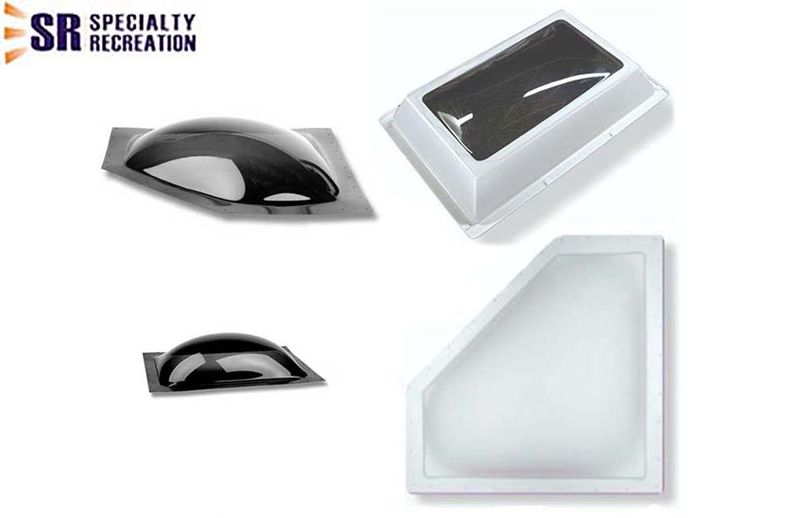

SEE CHART - Thermoformed Polycarbonate Skylights. This is the outside portion of the skylight to be used as a replacement for an existing skylight. For new installations, the inner garnish MUST be ordered separately.

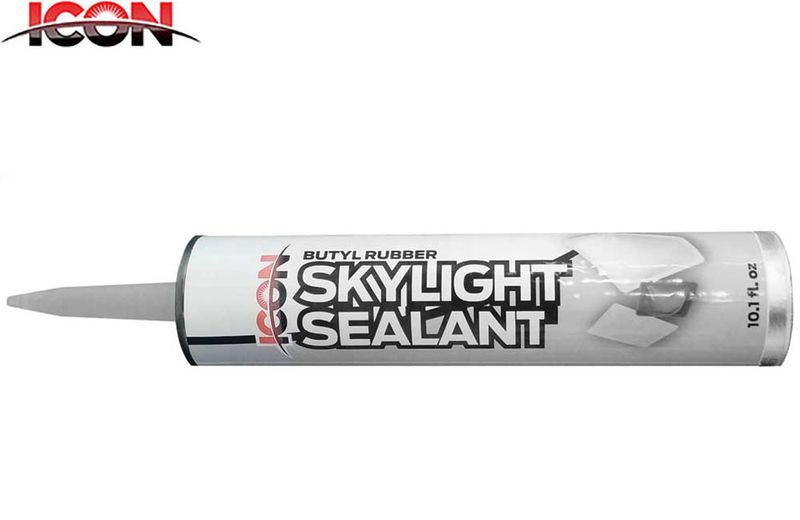

White Butyl Rubber Sealant. Use this sealant to install all ICON external Skylight domes. Standard 10 oz. caulk tube.

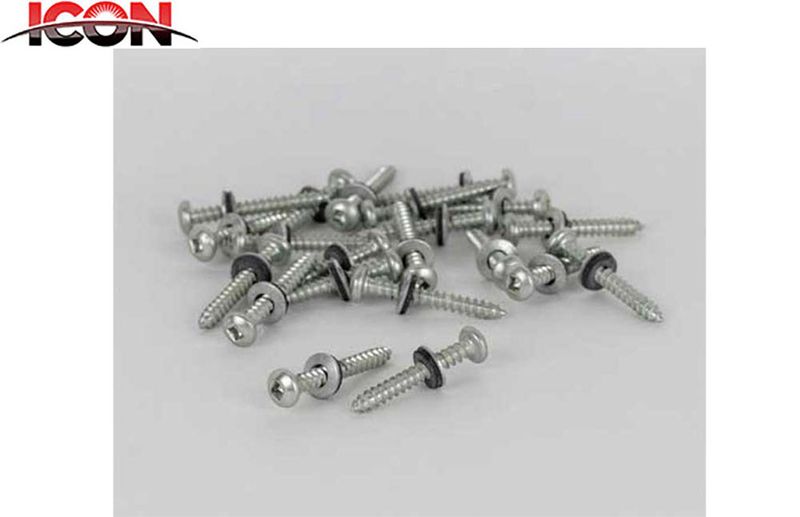

Includes 20 stainless steel screws (18/8 steel No. 8, 1-1/4" long) with neoprene gasket washer. Seals to the skylight to help prevent leaks as well as act as an expansion buffer.
