SUBURBAN SW6D
Home/Store/RV CATALOG/APPLIANCES/Water Heater Diagrams
Product Details
Brand: SUBURBAN

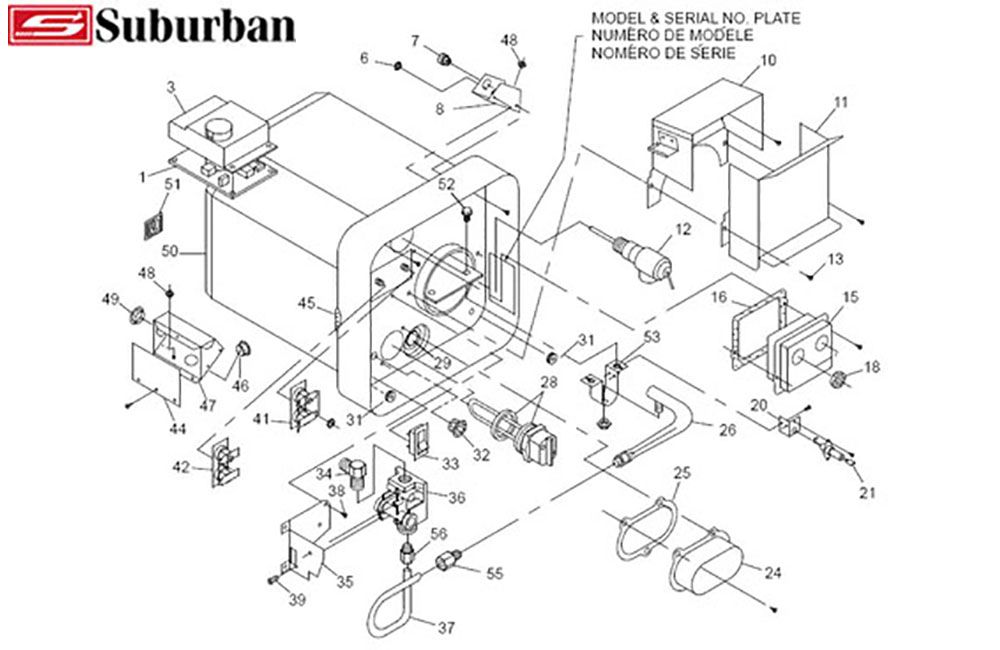

# Description MFG # Part # Price
1 Board - Module 520814 140153 $106.19
3 Cover - Module Board 90487 -
6 Bushing - Snap 1/2 In. 70270 -
7 Bushing - Strain Relief 5/8 230216 -
8 Box Assy - Junction DC 90517 -
10 Back - Flue Collector 101682 -
11 Front - Flue Collector 101776 -
12 Valve - Pressure Relief 3/4 In Use 161230 161157 150150 $16.36
Valve - Pressure Relief 3/4 In NPT 161230 140081 $50.77
13 Screw - 10 x 1/4 In 121577 -
15 Cover - T-Stat / Hi Limit 90562 -
Service Kit - Thermostat Cover 525022 140526 $9.10
16 Gasket - T-Stat Cover 70987 -
18 Grommet 70874 -
Service Kit - Grommet, Thermostat Cover 525027 140515 $ 1.80
20 Bracket - Electrode Mounting 63187 -
21 Electrode Assy - 2 Prong 232258 140485 $15.78
Service Kit - Electrode 525005 140485 $15.78
26 Burner - w/Orifice 10843 -
Service Kit - Burner w/Orifice 525023 140453 $23.98
NS Orifice - Burner #61 - Used w/Valve #161255 180323 -
NS Clip - Orifice - For Gas Valve 161255 63827 -
28 Element - Heat (1500W Screw-in For SW & V Models) 520900 140428 $12.02
29 Anode Rod - Magnesium 232767 140212 $14.62
Anode Rod - Aluminum (Optional) 232768 140213 $15.63
Anode Rod - Magnesium - Ext. Life 233514 140212 $14.62
31 Grommet 71246 -
34 Elbow - Gas Fitting, 90 Deg 170374 -
Service Kit - Fitting Brass 3/8 90 Deg Elbow 525025 -
35 Bracket - Valve Mounting 63243 -
NS Bracket - Valve Mounting - For Gas Valve 161255 63779 -
36 Gas Valve - 3/8 NPT x 1/4 LOXIT 161109 140458 $47.68
Gas Valve - 3/8 NPT Inlet 1/8-27 NPT Outlet (Serial# Above 164513432) 161255 350382 $46.13
NS Solenoid Kit - For White Rogers Valves 521072 -
NS Solenoid Kit - For Seven Universe Valves 521073 -
37 Manifold - Outlet 171420 140462 $ 7.47
38 Screw - 10 x 1/4 In 121577 -
39 Screw - 8-32 x 3/8 Hex Hd 121958 -
41 T-Stat - Hi Limit Switch, 12 VDC 130 Dgr Use 233534 232282 140463 $ 5.37
T-Stat - Hi Limit Switch, 135 Degree 233534 140463 $ 5.37
T-Stat - Hi Limit 12VDC 1400 232319 140455 $22.84
45 Grommet - Gas Inlet 70989 -
48 Nut - 10-24 Keps 121576 -
50 Foam Jacket Assy - Complete 520868 -
NS Banding Kit - For Foam Jacket 520772 -
51 Switch & Lite - w/Plate (White) Use 234589 232589 140482 $11.60
Switch - Remote On/Off - White 234589 140185 $11.62
Switch & Lite - w/Plate (Cream) Use 234795 232795 140486 $10.96
Switch - Remote On/Off - Cream 234795 -
Switch & Lite - w/Plate (Black) Use 234229 232229 140483 $10.79
Switch - On/Off - Black 234229 140186 $11.62
52 Screw - 8MM-4.0 x 1/2 Hex Washer Head 121943 -
53 Bracket - Burner 63444 -
55 Nut - LOXIT 1/4 In (Manifold to Burner) 171463 140459 $ 9.40
Service Kit - LOXIT Nut 1/4" In" (Manifold to Burner) 525030 140459 $ 9.40
56 Nut - LOXIT 1/4 In (Manifold to Valve) 171463 140459 $ 9.40
Service Kit - LOXIT Nut 1/4" In" (Manifold to Valve) 525030 140459 $ 9.40
NS Wire - Electrode 232456 140466 $14.28

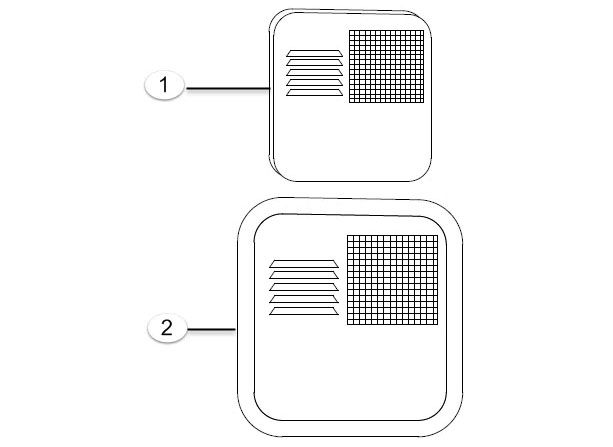

# Description MFG # Part # Price
1 Door - 3,4,6 Gal Radius C/White 6261ACW -
Door - 3,4,6 Gal Radius P/White 6261APW 140193 $48.37
2 Door - 3,4,6 Gal Flush C/W w/Frame 6255ACW 140191 $59.54
Door - 3,4,6 Gal Flush P/W w/Frame 6255APW 140194 $62.87
Door - 3,4,6 Gal Flush Artic Wht w/Frame 6255AAW -
