SUBURBAN NT-20SE
SKU NT20SE
$0.00
NT-20SE
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
SUBURBAN NT-20SE
Product Details

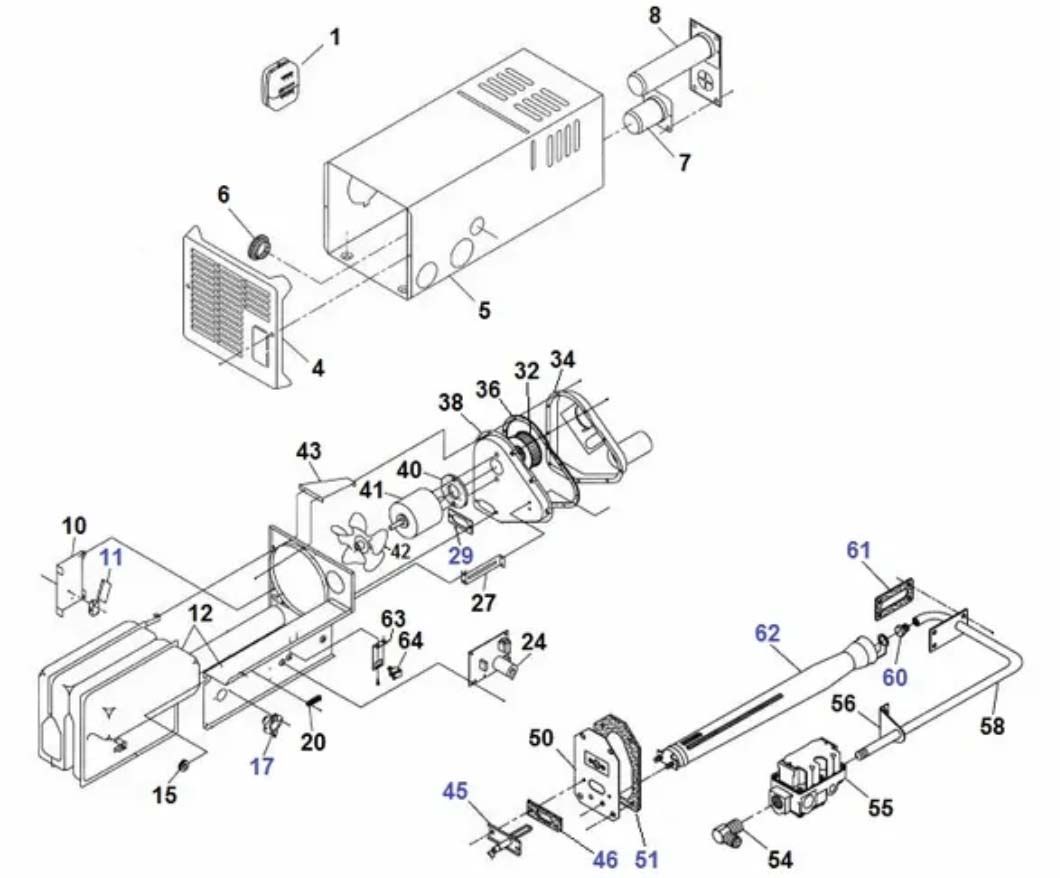

| # | Description | MFG # | Part # | Price |

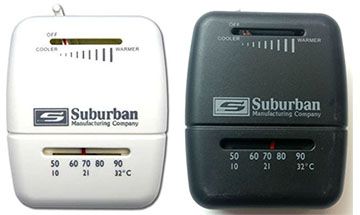

| 1 | Thermostat - White | 161154 | 161154 | $28.63 |
| Thermostat - Black | 161210 | 161210 | $53.54 | |
| 7 | Tube - Intake (2-3/4") | 050711 | - | |
| Tube - Intake (5") | 050712 | - | ||
| Tube - Intake (7-1/2") | 050708 | - | ||
| 8 | Vent Cap & Exhauxt Tube - Assembly | 260098 | - | |
| 11 | Switch - Sail (New #525028) | 233100 | 351821 | $ 7.02 |
| 17 | Switch - Limit | 230849 | - | |

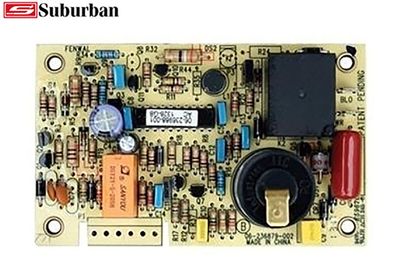

| 24 | Board - Ignition | 521099 | 521099 | $134.76 |
| 29 | Gasket - Burner Tunnel | 071240 | - | |
| 32 | Wheel - Combustion Air | 350082 | - | |
| 34 | Housing - Rear Combustion Air (NLA) | 390876 | - | |
| 36 | Gasket - Combustion Air Box | 070446 | - | |
| 38 | Housing - Front Combustion Air | 390874 | - | |
| 40 | Gasket - Motor | 071085 | - | |
| 41 | Motor Kit - Blower (12VDC | 520950 | - | |
| 42 | Impeller - Room Air | 350083 | - | |

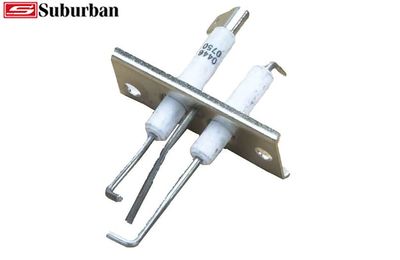

| 45 | Electrode - Single Sense (New #525029) | 231931 | 525033 | $13.02 |
| Electrode - Dual Sense (New #525019) | 230956 | 351139 | $15.44 | |

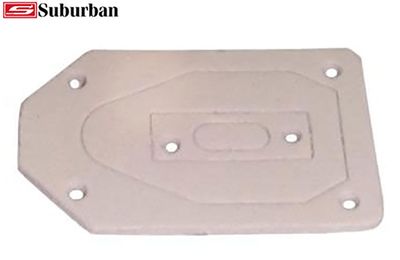

| 46 | Gasket Kit - Electrode / Burner Door (New #525011) | 071076 | - | |
| 50 | Door - Burner Access | 030621 | - | |
| 51 | Gasket Kit - Electrode / Burner Door(New #525011) | 071076 | 351088 | $ 4.71 |

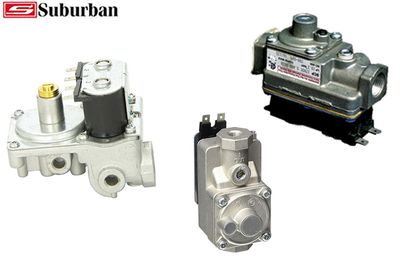

| 55 | Valve - Gas | 161123 | 350842 | $149.04 |
| 58 | Manifold - Assembly | 170744 | - | |
| 60 | Orifice - | 180231 | - | |
| 61 | Gasket - Manifold | 070449 | - | |
| 62 | Burner Assembly - w/Access Door | 010978 | - | |

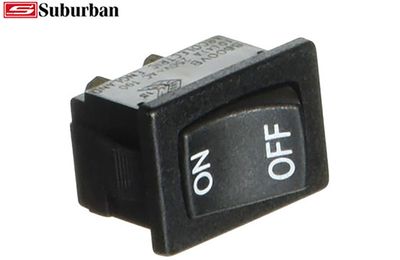

| 64 | Switch - On / Off | 232351 | 232351 | $ 7.45 |
You May Also Like

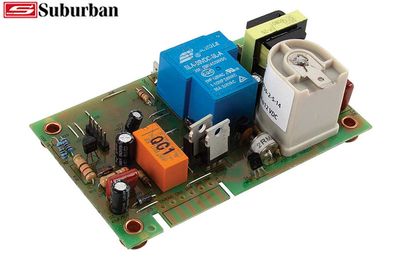

SUBURBAN 12V DC 3G FAN CONTROL BOARD
SUBURBAN 12V DC 3G FAN CONTROL BOARD
For NT-24SP, NT-30SP, NT-34SP, NT-40 you will need 520839 Module Board Wiring Harness. 12 VDC. Local Flame. Works with all SF and NT Furnace models. Replaces Suburban 520820 & 232613. Cover is not included.
SKU 521099
$134.76
3-PRONG ELECTRODE NT MODELS
3-PRONG ELECTRODE NT MODELS
Fits Models NT24/30/34 Serial #934701426
SKU 351139
$15.44
WATER HEATER ON/OFF SWITCH
WATER HEATER ON/OFF SWITCH
Switch for models NT-12, 16 & 20.
SKU 232351
$7.45
GAS VALVES
GAS VALVES
12VDC Furnace Gas Valve. Works on Models: SF-20/25/30/35/42, SF-20F/25F/30F/35F/42F (Below Serial Number 921403846); 351901; This works on Model#: 24 VAC-P-40
SKU 351072
$49.94

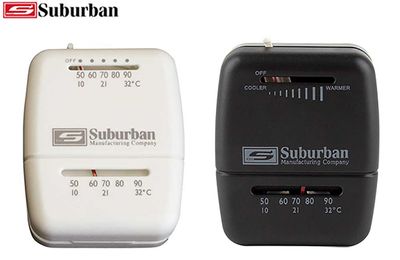

RV FURNACE THERMOSTAT
