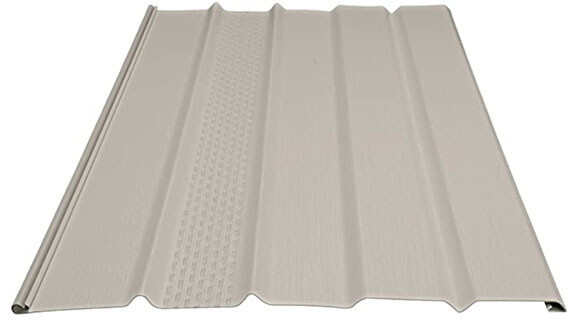

Name: SKIRTING PANEL - VENTED (Lifestyle)
SKU: 83555
Price: 19.67 USD
Availability: InStock
Rating: 5.0 (2 reviews)

SKU 200620C2

$12.86

SKU 200614C2

$12.91

SKU 200605C2

$19.67

SKU 200609C2

$13.45

For vinyl and aluminum; 3/8" throat depth.

SKU 380104

$47.82

Stops vinyl to vinyl expansion and contraction problems. Pre-drilled and slotted for easy adjustment. Easily attaches to rim joist.

SKU 120516

$1.31

Calculation Chart
Typical Home Size (Ft.)	8 x 32	8 x 35	12 x 65	12 x 70	14 x 60	14 x 65	14 x 70	14 x 76	14 x 80	16 x 70	16 x 80	24 x 50	24 x 60	24 x 65	24 x 70	28 x 65	28 x 70	28 x 80	32 x 70	32 x 80
Lin. Ft.*	80	86	146	156	140	150	160	172	180	164	184	140	160	170	180	178	188	208	196	216
Avg. Ht.	Number of 11 Foot - 8 Inch Panels Required
18"	9	10	16	17	15	16	17	19	19	18	20	15	17	18	19	19	20	23	21	24
23"	10	11	19	20	18	19	20	22	23	21	23	18	20	22	23	23	24	26	25	27
28"	12	13	22	24	21	23	24	26	27	25	28	21	24	26	27	27	28	32	30	33
35"	15	17	28	30	27	29	30	33	34	31	35	27	30	32	34	34	36	39	37	41
42"	20	22	37	39	35	38	40	43	45	41	46	35	40	43	45	45	47	52	49	54
Number of 11 Foot - 7-1/4 Inch Trim Components Required
Ground Channel	7	8	13	14	12	13	14	15	16	15	16	13	14	15	16	16	17	18	17	19
Top Trim Mounting	7	8	13	14	12	13	14	15	16	15	16	13	14	15	16	16	17	18	17	19
Top Trim Front	7	8	13	14	12	13	14	15	16	15	16	13	14	15	16	16	17	18	17	19
Spikes	49	56	91	98	84	91	98	105	112	98	112	91	98	105	112	112	119	130	123	135
