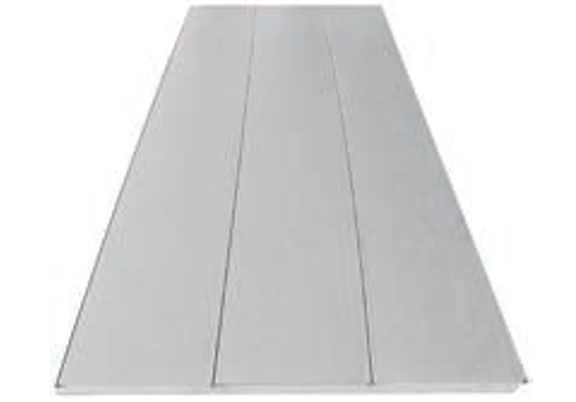

RAPID WALL PANELS (4' x 12')
SKU 200700
$169.50
FREIGHT ONLY
Color
RAPID WALL PANELS (4' x 12')
Product Details
• Full 2" thick EPS foam backed panel
• 20-year insect warranty
• Adaptable for use in Frost Protected Shallow Foundation Systems
• Easy installation without additional framework
• Available in white, gray and almond
• 9R+ Insulation factor
• Engineered to comply with HUD
• Wind Loading Zones I, II, III
• No warranty restrictions for ground contact
• Automatic vents available in White, Gray, Brown and Black
| Skirting Panels Required | ||||||||||
| Typical Home Size | 14 x 70 | 14 x 80 | 16 x 70 | 16 x 80 | 24 x 60 | 24 x 65 | 24 x 70 | 28 x 65 | 28 x 70 | 32 x 70 |
| Linear Feet Less Hitch | 160 | 180 | 164 | 184 | 160 | 170 | 180 | 178 | 188 | 196 |
| To 24 inches | 7 | 8 | 7 | 8 | 7 | 8 | 8 | 8 | 8 | 9 |
| To 28 inches | 8 | 9 | 9 | 10 | 8 | 9 | 9 | 9 | 10 | 10 |
| To 36 inches | 12 | 12 | 11 | 12 | 10 | 11 | 12 | 12 | 12 | 13 |
| Trim Parts | ||||||||||
| Top Front Rail | 14 | 15 | 14 | 16 | 14 | 15 | 15 | 15 | 16 | 17 |
| Top Back Rail | 14 | 15 | 14 | 16 | 14 | 15 | 15 | 15 | 16 | 17 |
| Ground Channel | 14 | 15 | 14 | 16 | 14 | 15 | 15 | 15 | 16 | 17 |
| Min. # of Vents Required | 10 | 10 | 10 | 10 | 12 | 12 | 14 | 14 | 16 | 18 |
