POWER CENTER MAIN BOARD ASSEMBLY
+2

POWER CENTER MAIN BOARD ASSEMBLY

Home/Store/RV CATALOG/ELECTRICAL/ELECTRICAL/Converters/Chargers
SKU WF-8955-AD-MBA
$324.11
Replacements for the lower power converter sections of all WF-8900 Series converters, also can replace other brands of converters. Installs easily with only four screws and five wires.
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
POWER CENTER MAIN BOARD ASSEMBLY
Home/Store/RV CATALOG/ELECTRICAL/ELECTRICAL/Converters/Chargers
Product Details
Mfg#: WF-8945-AD-MBA

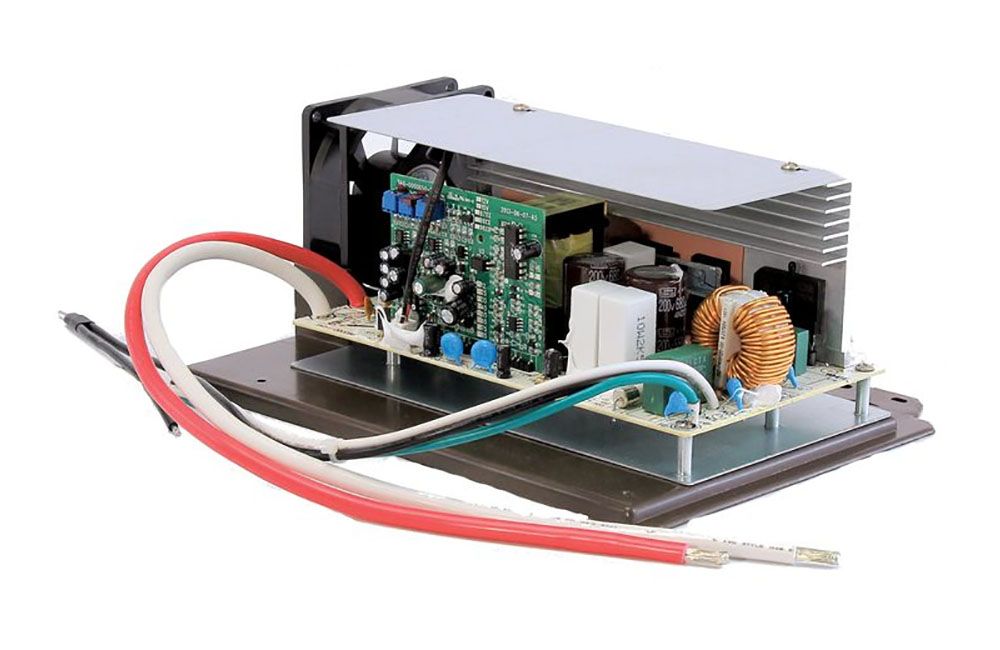

  • WFCO Replacement Main Board Assembly.
  • Replaces the Lower Power Converter Section on WF-8955-AD Series Power Center.
  • Auto-Detect Intelligent Battery Detection.
  • Power Input: 950W.
  • Input Voltage: 105-130 VAC / 60 Hz.
  • Output Current (LA/L2): 55A / 50A.
  • Converter Type: 3 Stage Converter Charger / 2 Stage Converter Charger.
  • Voltage Output: 13.2 - 14.4 VDC / 13.6 - 14.6 VDC.
  • Normal Mode: 13.6 VDC.
  • Trickle Charge Mode (LA Only): 13.2 VDC.
  • Bulk Charge Mode: 14.4 VDC / 14.6 VDC.
  • Dimensions: 7-1/16"W x 3-7/8"H x 9-1/2"D.
  • Weight: 5 lbs.
  • Certifications: UL and cUL listed and FCC Class B Compliant.
  • Safety Features/Protections: Over Current, Over Temperature, Over Voltage, Reverse Polarity.
Show More
