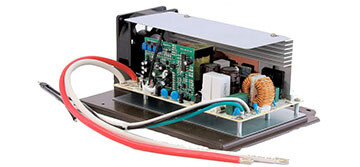

POWER CENTER MAIN BOARD ASSEMBLY
SKU WF-8945-AD-MBA
$252.91
This WFCO Main Board Assembly replaces the lower power converter section in a WFCO WF-8945-AD Series Power Center that includes industry first, patent pending, Auto-Detect technology.
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

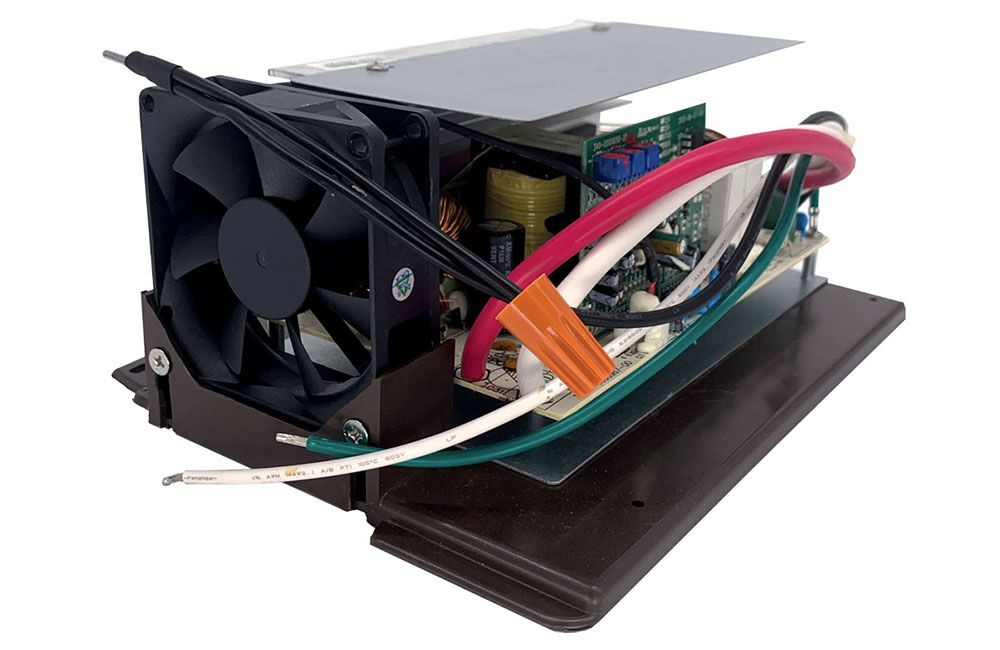

POWER CENTER MAIN BOARD ASSEMBLY
Product Details
UPC: 816227012883
Mfg#: WF-8945-AD-MBA
This WFCO Main Board Assembly replaces the lower power converter section in a WFCO WF-8945-AD Series Power Center that includes industry first, patent pending, Auto-Detect technology. It installs easily with only two screws, three AC wires, and two DC wires.
- WFCO Replacement Main Board Assembly
- Replaces the Lower Power Converter Section on WF-8945-AD Series Power Center
- Auto-Detect Intelligent Battery Detection
- Power Input: 780W
- Input Voltage: 105-130 VAC / 60 Hz
- Output Current (LA/L2): 45A / 41.5A
- Converter Type: 3 Stage Converter Charger / 2 Stage Converter Charger
- Voltage Output: 13.2 - 14.4 VDC / 13.6 - 14.6 VDC
- Normal Mode: 13.6 VDC
- Trickle Charge Mode (LA Only): 13.2 VDC
- Bulk Charge Mode: 14.4 VDC / 14.6 VDC
- Dimensions: 7-1/16"W x 3-7/8"H x 9-1/2"D
- Weight: 5 lbs.
- Certifications: UL and cUL listed and FCC Class B Compliant
- Safety Features/Protections: Over Current, Over Temperature, Over Voltage, Reverse Polarity
