PINNACLE RANGE HOOD (DH Model)
Home/Store/RV CATALOG/APPLIANCES/Range Hood Diagrams
Product Details
Brand: VENTLINE
Mfg#: DH20BS-1

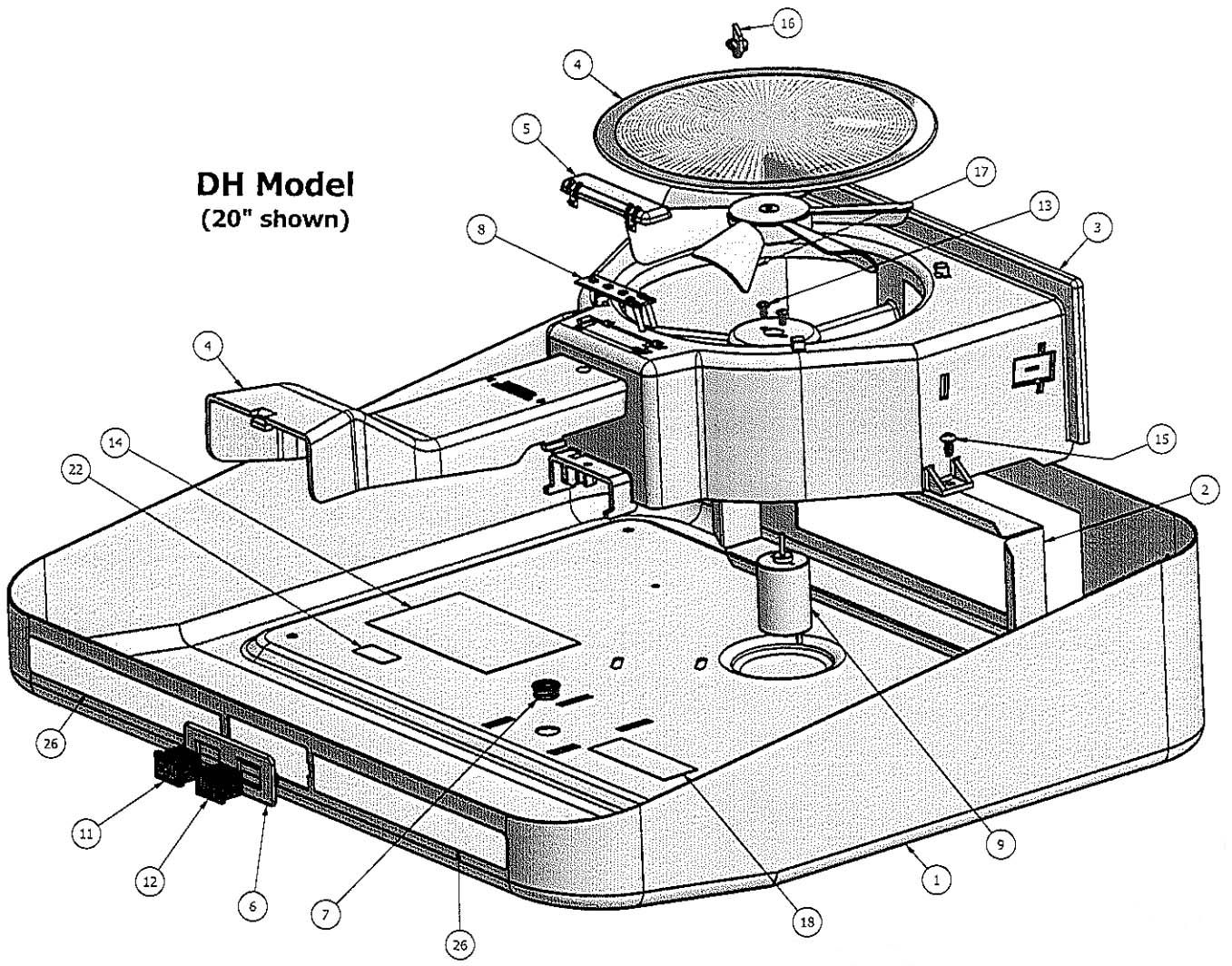

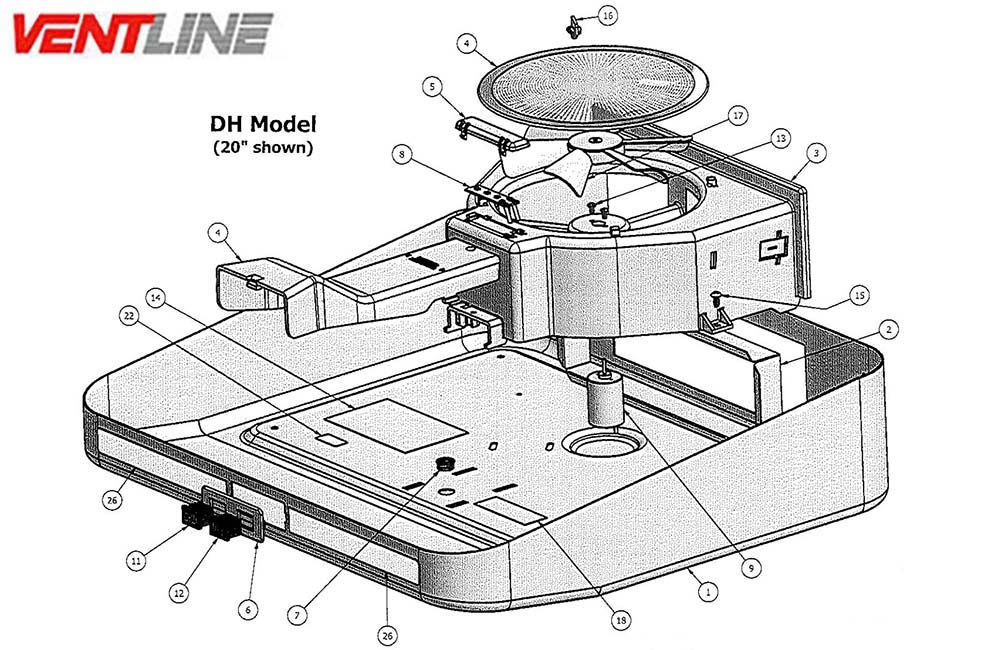

# Description Mfg # Part # Price
1 Hood Shell CE0423TAB -
2 Hood Outlet CE0424-00 -
3 Blower Housing CE0425-01 -

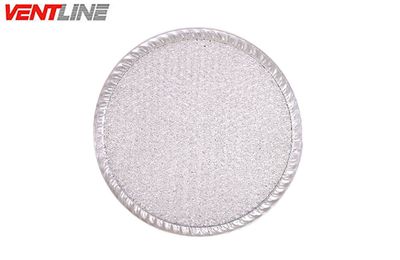

4 Grease Filter BCE0434-00 BCE0434-00 $ 6.30
4 Wire Compartment CE0426-00 -

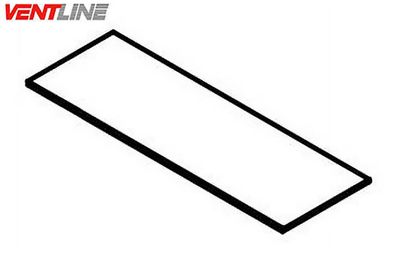

5 Lens - Light BCE0427-00 BCE0427-00 $ 3.79
6 Bezel - Switch (Standard) CE0428-01 -
Bezel - Switch (Upgrade) CE0428-02 -
7 Bushing - Hole V0481-01 -
8 Light - LED CE0432-00 -
9 Motor - 12VDC BVC0535-08 BVC0535-08 $16.08
10 Filter - Grease BCE0434-00 BCE0434-00 $ 6.30
11 Switch - Fan (Standard) L0108-02 -
Switch - Fan (Upgrade) CE0437-02 -
12 Switch - Light (Standard) L0108-01 -
Switch - Light (Upgrade) CE0437-01 -
13 Screw - Machine (M2.6) CE0438-00 -
14 Label - Product CE0431-01 -
15 Screw - Sheet Metal C0119-00 -

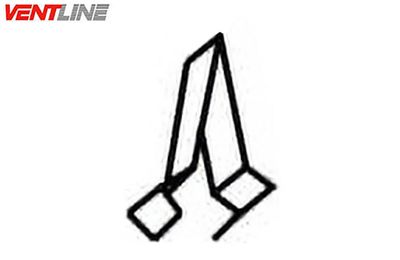

16 Clip - Filter turn BCE0429-00 BCE0429-00 $ 3.73
17 Blade - Fan VD0215-00 -
18 Label - Air Flow VA0171-00 -
19 Harness - Switch L7885-00 -
20 Wire Lead - White (10") C0389-18 -
21 Connector - Electrical C0129-00 -
22 Label - Date VA0469-00 -
26 Applique - Stainless Steel CE0450 -
