PINNACLE RANGE HOOD (DD Model)
SKU PINNDD
$0.00
DD20BS-1
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
PINNACLE RANGE HOOD (DD Model)
Product Details
Brand: VENTLINE
Mfg#: DD20BS-1

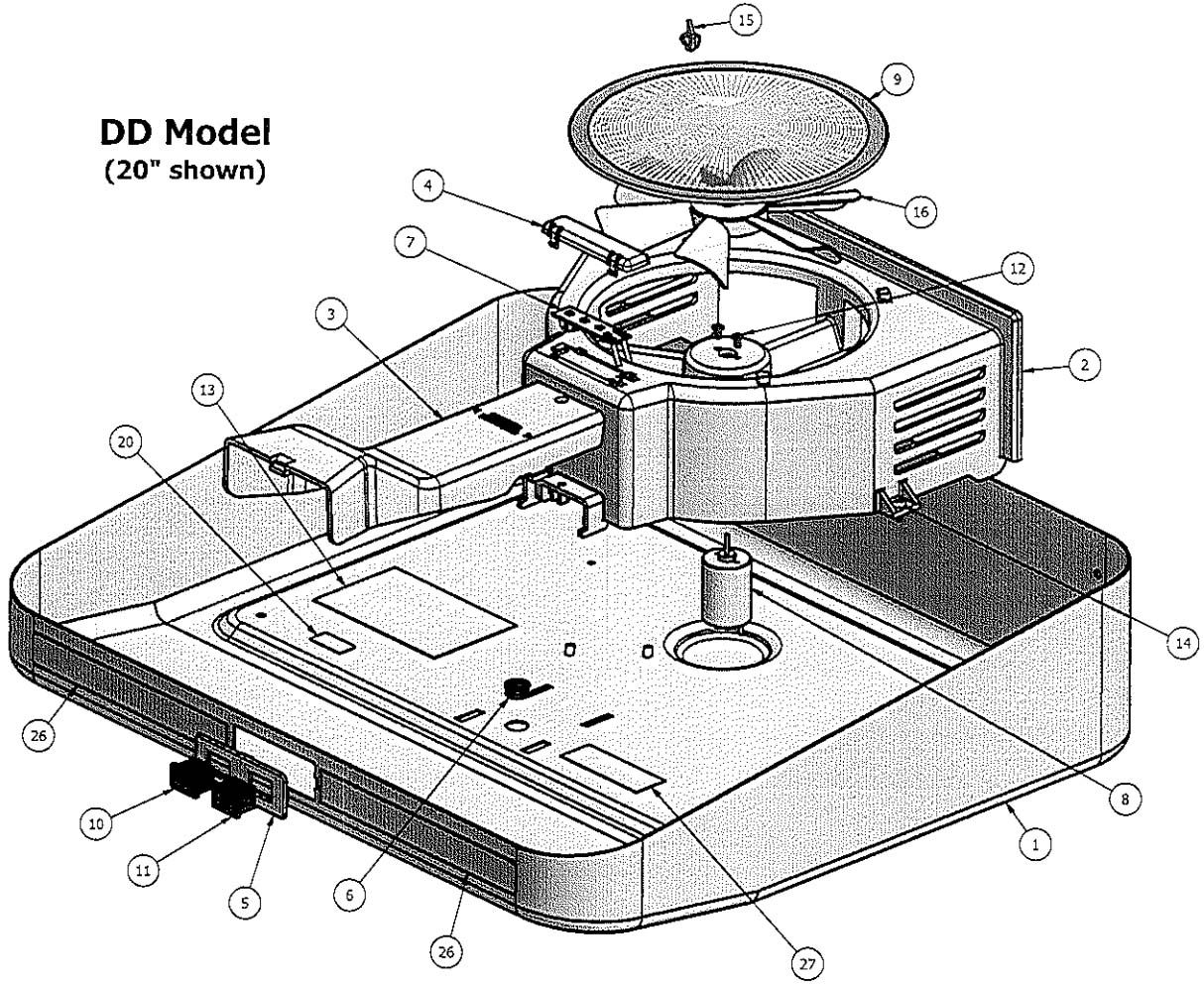

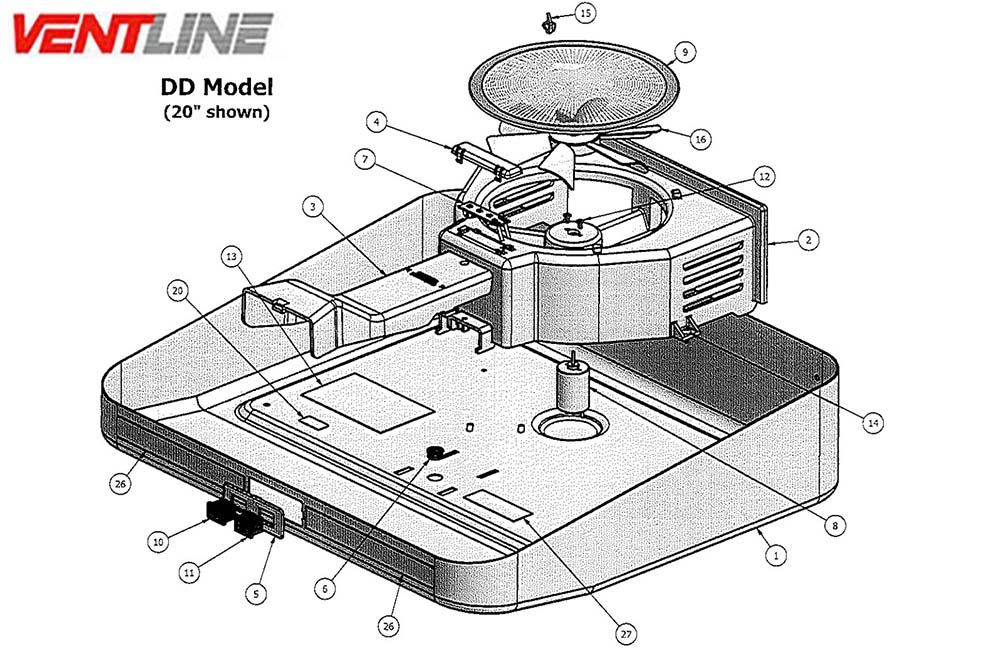

| # | Description | Mfg # | Part # | Price |
| 1 | Hood Shell | CE0423TAB | - | |
| 2 | Blower Housing | CE0425-02 | - | |
| 3 | Wire Compartment | CE0426-00 | - | |
| 4 | Lens - Light | BCE0427-00 | BCE0427-00 | $ 3.79 |
| 5 | Bezel - Switch (Standard) | CE0428-01 | - | |
| Bezel - Switch (Upgrade) | CE0428-02 | - | ||
| 6 | Bushing - Hole | V0481-01 | - | |
| 7 | Light - LED | CE0432-00 | - | |
| 8 | Motor - 12VDC | BVC0535-08 | BVC0535-08 | $16.08 |
| 9 | Filter - Charcoal Grease | BCE0435-00 | BCE0435-00 | $ 6.71 |
| 10 | Switch - Fan (Standard) | L0108-02 | - | |
| Switch - Fan (Upgrade) | CE0437-02 | - | ||
| 11 | Switch - Light (Standard) | L0108-01 | - | |
| Switch - Light (Upgrade) | CE0437-01 | - | ||
| 12 | Screw - Machine (M2.6) | CE0438-00 | - | |
| 13 | Label - Product | CE0431-02 | - | |
| 14 | Screw - Sheet Metal | C0119-00 | - | |
| 15 | CLIP - Filter turn | BCE0429-00 | BCE0429-00 | $ 3.73 |
| 16 | Blade - Fan | VD0215-00 | - | |
| 17 | Harness - Switch | L7885-00 | - | |
| 18 | Wire Lead - White (10") | C0389-18 | - | |
| 19 | Connector - Electrical | C0129-00 | - | |
| 20 | Label - Date | VA0469-00 | - | |
| 26 | Applique - Stainless Steel | CE0450 | - | |
| 27 | Label - Air Flow | VA0171-00 | - |
