PH SERIES - RV RANGE HOOD
SKU PH SERIES
$0.00
PH SERIES
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
PH SERIES - RV RANGE HOOD
Product Details
Brand: VENTLINE

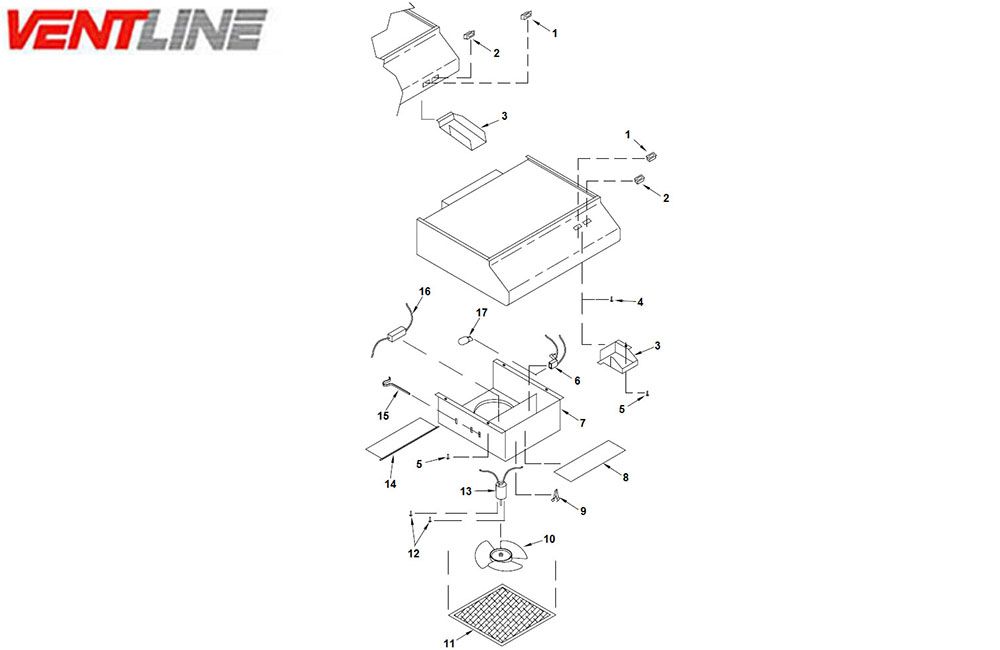

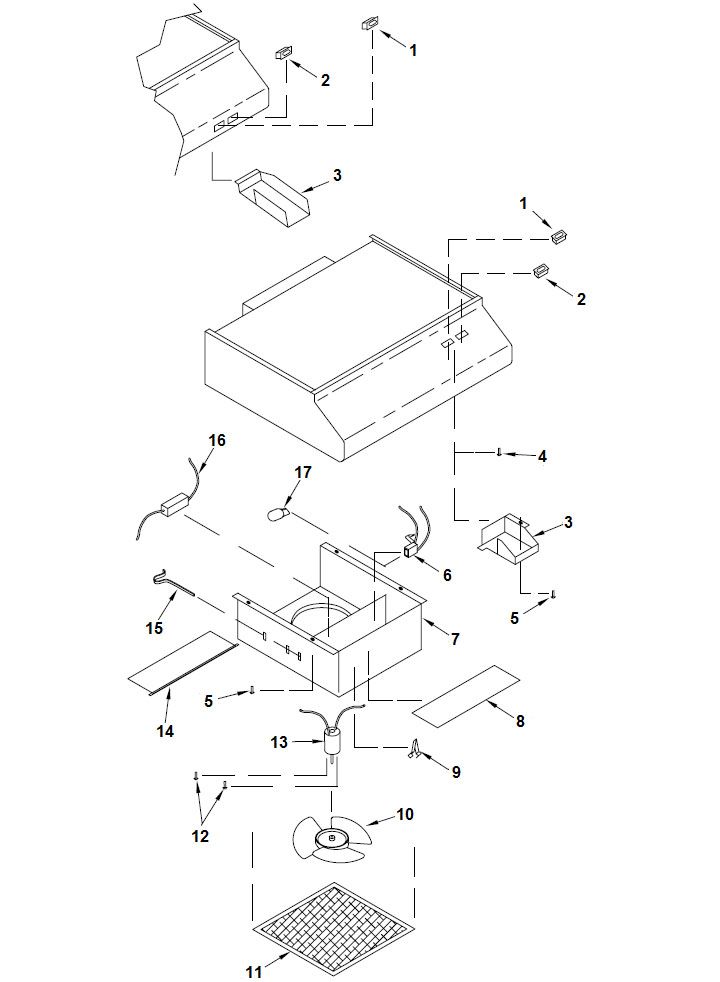

| # | Description | Mfg # | Part # | Price |
| 1 | Lamp Switch - Black rocker (Replaces BL1196-00 and BL1197-00) | BL1194-00 | BL1194-00 | $11.97 |
| Lamp Switch - White rocker (Replaced by BL1194-00) | BL1197-00 | - | ||
| 2 | Fan Switch - Black 1 Speed Fan (Rocker) | BL1194-00 | BL1194-00 | $11.97 |
| Fan Switch - White 1 Speed Fan (Replaced by BL1194-00) | BL1195-00 | - | ||
| Fan Switch - Black 2 Speed rocker WSL | BL1198-00 | BL1198-00 | $ 9.84 | |
| Fan Switch - White 2 Speed (Replaced by BL1198-00) | BL1199-00 | - | ||
| 3 | Cover - Wiring (rocker switches in nose top) | CA0461-02 | - | |
| Cover - Wiring (rocker switches in nose front) | CD0289-01 | - | ||
| 4 | Screw - Green Ground | C0120-00 | C0120-00 | $ .11 |
| 5 | Screw - #8 Sheet Metal | C0119-00 | - | |
| 6 | Socket - Lamp | BCB0267-02 | BCB0267-02 | $10.79 |
| 7 | Housing - Blower | |||
| 8 | Lens - Lamp | BCC0179-00 | BCC0179-00 | $10.79 |
| 9 | Retainer - Filter/Lens | BCC0245-00 | - | |
| 10 | Blade - Fan (7" dia, fots .091 dia shaft, CCW rotation) | BVD0216-00 | BVD0216-00 | $10.79 |
| 11 | Filter - Aluminum Grease | BCC0246-00 | BCC0246-00 | $10.79 |
| Filter - Charcoal Grease (for Ductless Range Hoods) | BCC0248-00 | BCC0248-00 | $12.59 | |
| 12 | Screw - Machine | M2.6 | - | |
| 13 | Motor - 12 Volt DC | BVD0218-00 | 520256 | $32.42 |
| 14 | Damper - Plastic (N/A for dustless models) | BCA0472-00 | BCA0472-00 | $10.79 |
| 15 | Spring - Damper lock (N/A for dustless models) | C0488-00 | - | |
| 16 | Resister - (2-speed fan only) | L7318-00 | L7318-00 | $12.08 |
| 17 | Bulb - #921 Lamp | VA0415-00 | VA0415-00 | $ 3.93 |
