MOC/MGC SERIES FURNACE
SKU MOCMGC
$0.00
MOC60, MOC80, MOC100, MGC60, MGC60, MGC100
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
MOC/MGC SERIES FURNACE

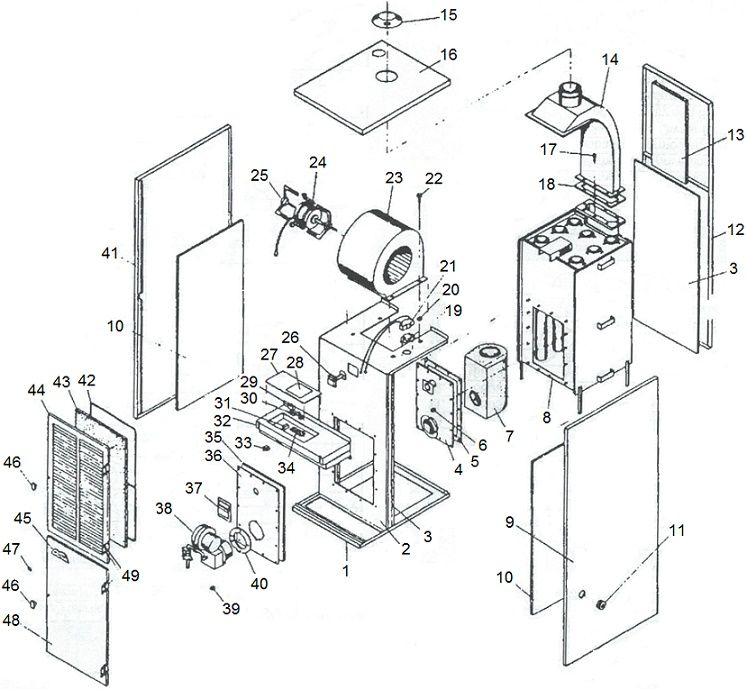

Product Details
| # | DESCRIPTION | MOC 60 |
MOC 80 |
MCC 100 |
MGC 60 |
MGC 80 |
MGC 100 |
MFG # | PART # | PRICE |
| 1 | Panel - Bottom | 1 | 1 | 1 | 1 | 1 | 1 | N/A | - | |
| 2 | Comb. Division Panel & Blower Deck Ass'y |
1 | 1 | 1 | 1 | 1 | 1 | N/A | - | |
| 3 | Insulation | 2 | 2 | 2 | 2 | 2 | 2 | N/A | - | |
| 4 | Plate Ass'y - Burner Mtg. | 1 | 1 | 1 | 1 | 1 | 1 | 100943000 | - | |
| 5 | Gasket - Burner Mtg Plate | 1 | 1 | 1 | 1 | 1 | 1 | 301205000 | 230239 | $33.97 |
| 6 | Nut - Flange 5/16 - 18 | 14 | 14 | 14 | 14 | 14 | 14 | *** | - | |
| 7 | Combustion Chamber | 1 | 1 | 1 | 1 | 1 | 1 | 901818 | 238181 | $98.21 |
| 8 | Heat Exchanger Kit | 1 | 1 | 1 | 1 | 1 | 1 | N/A | - | |
| 9 | Panel Ass'y - Right Side | 1 | 1 | 1 | 1 | 1 | 1 | N/A | - | |
| 10 | Insulation - Side Panel | 2 | 2 | 2 | 2 | 2 | 2 | N/A | - | |
| 11 | Grommet | 1 | 1 | 1 | 1 | 1 | 1 | 301158014 | - | |
| 12 | Panel Ass'y - Rear | 1 | 1 | 1 | 1 | 1 | 1 | N/A | - | |
| 13 | Insulation - Rear Panel | 1 | 1 | 1 | 1 | 1 | 1 | N/A | - | |
| 14 | Heat Exc hanger Ext Ass'y | 1 | 1 | 1 | 1 | 1 | 1 | N/A | - | |
| 15 | Collar - Flue Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 200763000 | - | |
| 16 | Panel - Top | 1 | 1 | 1 | 1 | 1 | 1 | N/A | - | |
| 17 | Screw - Hex Washer Hd 20x5/8 | 8 | 8 | 8 | 8 | 8 | 8 | *** | - | |
| 18 | Gasket - Flange | 1 | 1 | 1 | 1 | 1 | 1 | 305063000 | - | |
| 19 | Aux. Limit Control - 135'-105' | 1 | 1 | 1 | 1 | 1 | 1 | 300609008 | 238176 | $44.77 |
| 20 | Nut - Speed Grip | 4 | 4 | 4 | 4 | 4 | 4 | 301854000 | - | |
| 21 | Receptable | 1 | 1 | 1 | 1 | 1 | 1 | 302255000 | - | |
| 22 | Screw - Hex Slot Flange Hd 5/16 - 18 x 3/4 lg. |
4 | 4 | 4 | 4 | 4 | 4 | *** | - | |
| 23 | Blower | 1 | 1 | - | 1 | 1 | - | 304792000 | - | |
| Blower | - | - | 1 | - | - | 1 | 304794000 | - | ||
| Blower Wheel | 1 | 1 | - | 1 | 1 | - | 304074000 | 230253 | $118.88 | |
| Blower Wheel | - | - | 1 | - | - | 1 | 304093000 | - | ||
| 24 | Motor | 1 | - | - | 1 | - | - | 105326001 | - | |
| Motor | - | 1 | - | - | 1 | - | 305313000 | |||
| Motor | - | - | 1 | - | - | 1 | 304418000 | |||
| 25 | Motor Hanger Assembly | 1 | 1 | - | 1 | 1 | - | 300274000 | - | |
| 304078000 | - | |||||||||
| 26 | Fan & Limit Control | - | - | - | - | - | - | 306039001 | - | |
| 27 | Cover - Vestibule Divider | 1 | 1 | 1 | 1 | 1 | 1 | NLA | - | |
| 28 | NLA | - | ||||||||
| 29 | Receptable - Polarized | - | - | - | - | - | - | 304945001 | - | |
| 30 | Switch - Toggle | 1 | 1 | 1 | 1 | 1 | 1 | 305818000 | - | |
| 31 | Receptable - Polarized | 1 | 1 | 1 | 1 | 1 | 1 | 304945002 | - | |
| 32 | Vestibule Driver | 1 | 1 | 1 | 1 | 1 | 1 | NLA | - | |
| 33 | Switch | 1 | 1 | 1 | 1 | 1 | 1 | 304629000 | - | |
| 34 | Terminal Board | 1 | 1 | 1 | 1 | 1 | 1 | NLA | - | |
| 35 | Division Panel Cover Insul. | 1 | 1 | 1 | 1 | 1 | 1 | NLA | - | |
| 36 | Division Panel Cover Ass'y | 1 | 1 | 1 | 1 | 1 | 1 | 10088600 | - | |
| 37 | Door Ass'y - Observation | 1 | 1 | 1 | 1 | 1 | 1 | 100024000 | - | |
| 38 | Burner (See Burner Spec) | - | ||||||||
| 39 | Nut - Hex 1/4 x 20 | 3 | 3 | 3 | 3 | 3 | 3 | *** | - | |
| 40 | Gasket - Burner (inc w/burner) | 1 | 1 | 1 | 1 | 1 | 1 | 300001000 | 230218 | $ 9.26 |
| 41 | Panel Ass'y - Left Side | 1 | 1 | 1 | 1 | 1 | 1 | N/A | - | |
| 42 | Retainer - Filter | 1 | 1 | 1 | 1 | 1 | 1 | 302257000 | - | |
| 43 | Filter | 1 | 1 | 1 | 1 | 1 | 1 | 102957040 | - | |
| 44 | Grille - Return Air w/Hinges | 1 | 1 | 1 | 1 | 1 | 1 | N/A | - | |
| 45 | Plate - Name | 1 | 1 | 1 | 1 | 1 | 1 | N/A | - | |
| 46 | Knob - Door | 2 | 2 | 2 | 2 | 2 | 2 | 301425000 | - | |
| 47 | Retainer | 2 | 2 | 2 | 2 | 2 | 2 | 300919000 | - | |
| 48 | Door Ass'y - Burner Access | 1 | 1 | 1 | 1 | 1 | 1 | N/A | - | |
| 49 | Hinge | 4 | 4 | 4 | 4 | 4 | 4 | 301308000 | - | |
| **** | Inst. Manual | 1 | 1 | 1 | 1 | 1 | 1 | 102036000 | - |
