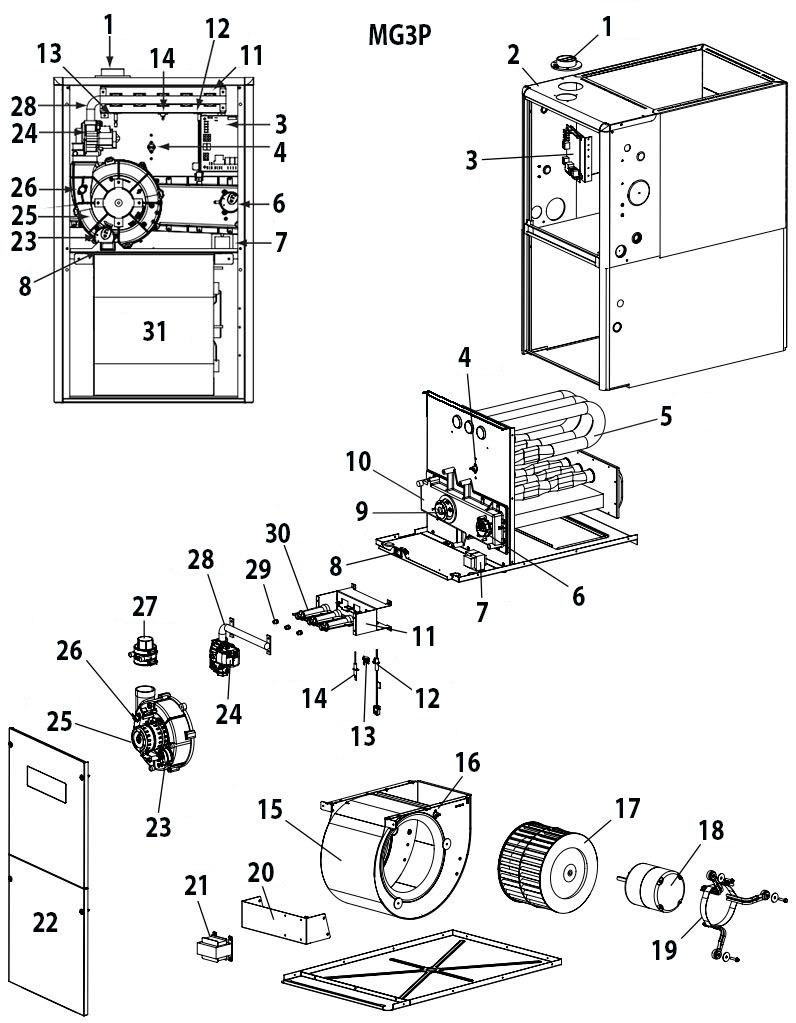

MG3P SERIES - Upflow / Horizontal Furnace

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU MG3P
$0.00
054U1AAB1, 072U1AAC1, 090U1AAC1, 108U1AAD1
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
MG3P SERIES - Upflow / Horizontal Furnace
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details
# DESCRIPTION MG3P PART # PRICE
054U1AAB1 072U1AAC1 090U1AAC1 108U1AAD1
1 Flange - Finish 664633R 664633R 664633R 664633R -
2 Panel - Top 2B3552R 2B3553R 2B3553R 2B3554R -
3 Control Board - Furnace 1021573R 1021573R 1021573R 1021573R -
4 Limit Switch - Main Air 626614R 1021533R 626613R 626614R -
5 Heat Exchanger 904869 904870 904871 904791 -
6 Switch - Pressure (condensate) 632491R 632491R - 632491R -
Switch - Pressure (condensate) - - 632622R - 233160 $31.15
7 Transformer 622341R 622341R 622341R 622341R 233166 $29.42
8 Switch - Door 632693R 632693R 632693R 632693R -
9 Orifice - Inducer 669712R 669715R 669717R Not Used -
10 Box - Outlet Header 904802 904803 904803 904804 -
11 Burner - Assembly 904747R 904823 904929 904827 -
12 Ignitor Assembly - (Nitride) 921074 921074 921074 921074 -
Bracket - Ignitor (Not Shown) 299261R 299261R 299261R 299261R -
13 Flame Sensor 632484R 632484R 632484R 632484R -
14 Limit Switch - Roll Out 626608R - - - 233170 $ 7.73
Limit Switch - Roll Out - 626609R 626609R 626609R 233165 $11.90
15 Blower Housing 297207R N/A N/A N/A -
Blower Housing - (with Wheel) N/A 1027002R 1027002R 1027002R -
16 Limit Switch - Blower 626611R 626611R 626611R 626611R -
17 Blower Wheel 667258R N/A N/A N/A 230257 $107.01
18 Blower Motor 1027370R 1027391R 1027372R 1027393R -
19 Mount Kit - Motor 904951 904951 904951 904951 -
20 Bracket - Motor Choke -
21 Motor Choke 622340R 622340R 622340R 622340R 233139 $117.30
22 Door Set 904768 904769 904769 904770 -
Filter - (Not Shown) 669785R 669785R 669785R 669785R -
23 Pressure Switch - Inducer 632495R 632493R 632493R 632493R -
24 Gas Valve 624610R 624610R 624610R 624610R -
25 Inducer Motor - Blower Motor 1003441 1003441 1003441 1003441 233138 $288.98
26 Limit Switch - Inducer 626599R 626599R 626599R 626599R 233162 $13.89
27 Drain Assembly - Inline 664435R 664435R 664435R 664435R -
28 Burner Tube - Manifold 664238R 664239R 664240R 664241R -
29 Orifice - (Natural Gas) 661047R 661047R 661047R 661047R -
30 Inshot Burner 661134R 661134R 661134R 661134R -
31 Blower Assembly - - - - -
32 Drain Tube - (Hard "J" 30")
(Not Shown)
663706R 663706R 663706R 663706R -
Drain Tube - (Soft "J" 30")
(Not Shown)
663707R 663707R 663707R 663707R -
34 Hose - High Temperature
(Not Shown)
263967R 263967R 263967R 263967R -
35 Tube - (Soft, 5.5")(Not Shown) 663727R 663727R 663727R 663727R -
36 Wires - Set (Not Shown) 1027179 1027180 1027180 1027180 -
