MG2S SERIES - Two Stage Condensing Gas Furnace

Name: MG2S SERIES - Two Stage Condensing Gas Furnace
SKU: MG2S
Availability: InStock

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS

SKU MG2S

$0.00

MG2S045F, MG2S045T, MG2S060F, MG2S060T, MG2S072F, MG2S072T

Available Components

(1) TRANSFORMER - 233166

(4) SWITCH - Door 233056

(10) IGNITOR - 233167

(12) SENSOR - Flame 102880

(13) LIMIT SWITCH - RollOut 233170

(14) BURNER - Inshot 233045

(15) ORIFICE - (Natural Gas) 233080

(18) LIMIT SWITCH - Inducer 233162

(23) BLOWER WHEEL - 230257

(24) LATCH - Door 233052

(28) FUSE - (Not Shown) 233102

(31) DOOR ASSEMBLY - Coil (Not Shown) 239844

MG2S SERIES - Two Stage Condensing Gas Furnace

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS

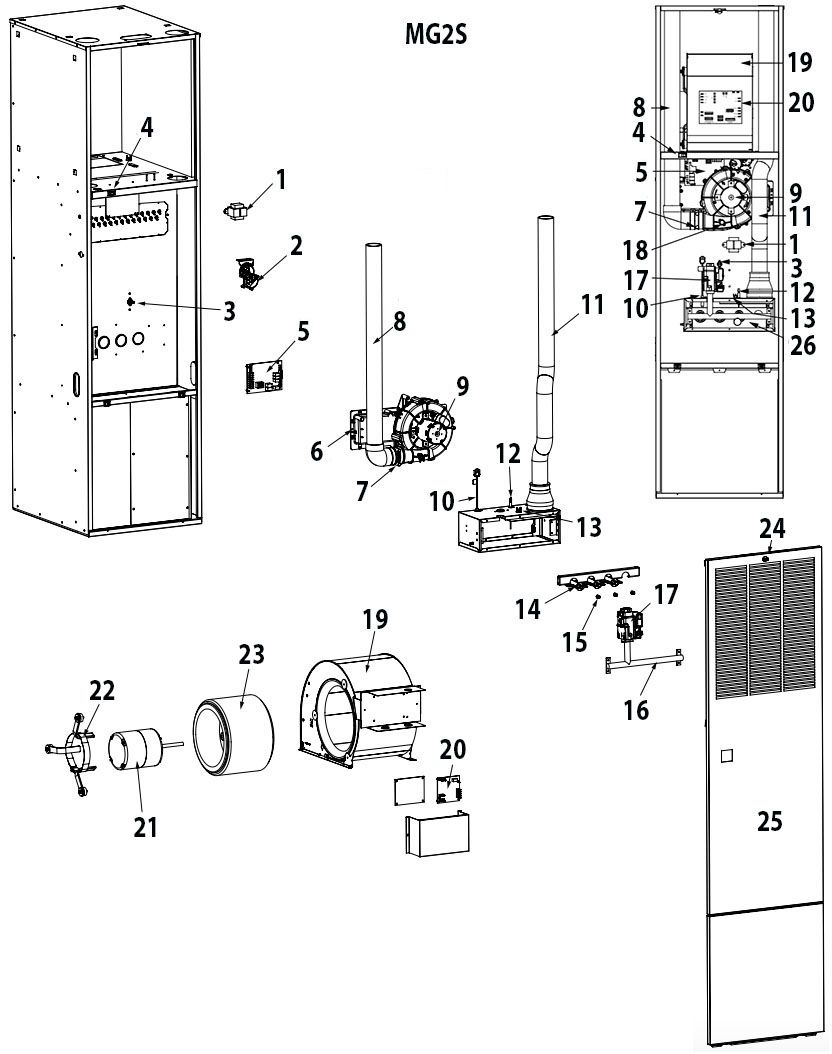

Product Details

#	DESCRIPTION	MG2S						PART #	PRICE
#	DESCRIPTION	045F	045T	060F	060T	072F	072T	PART #	PRICE
1	Transformer	622341R	622341R	622341R	622341R	622341R	622341R	233166	$29.42
2	Switch - Pressure	1023972R	1023971R	1023972R	1023973R	1023972R	1023971R	-
3	Limit Switch - Main Air	600445R	626617R	626567R	626617R	626612R	1018472R	-
4	Switch - Door	632337R	632337R	632337R	632337R	632337R	632337R	233056	$ 7.33
5	Control Board	624790R	624790R	624790R	624790R	624790R	624790R	-
6	Header Box - Outlet	904802	904802	904802	904802	904802	904802	-
7	Drain Assembly - Inline	664435R	664435R	664435R	664435R	664435R	664435R	-
8	Vent Pipe	664644R	664644R	664644R	664644R	664644R	664644R	-
9	Inducer Motor - w/Orifice	1025335	1025335	1025335	1025335	1025335	1025335	-
9	Inducer Orifice - (Not Shown)	670012R	1023976R	669749R	669718R	669719R	1021493R	-
10	Ignitor	1016290S	1016290S	1016290S	1016290S	1016290S	1016290S	233167	$65.47
11	Inlet Pipe - Combustion Air	664645R	664645R	664645R	664645R	664645R	664645R	-
12	Sensor - Flame	632396R	632396R	632396R	632396R	632396R	632396R	102880	$28.14
13	Limit Switch - Roll Out	626608R	626608R	626608R	626608R	626608R	626608R	233170	$ 7.73
14	Burner - Inshot	661135R	661135R	661135R	661135R	661135R	661135R	233045	$15.90
15	Orifice - (LP Gas)	661078R	661078R	661082R	661082R	661079R	661079R	-
	Orifice - (Natural Gas)	661049R	661049R	-	-	661047R	661047R	-
	Orifice - (Natural Gas)	-	-	661045R	661045R	-	-	233080	$13.14
16	Manifold - Burner Tube	664639R	664639R	664639R	664639R	664640R	664640R	-
17	Gas Valve	624787R	624787R	624787R	624787R	624787R	624787R	-
18	Limit Switch - Inducer	626599R	626599R	626599R	626599R	626599R	626599R	233162	$13.89
19	Blower Assembly	1022912R	1022912R	1022912R	1022912R	1022912R	1022912R	-
20	Control Board - Motor	624840R	624840R	624840R	624840R	624840R	624840R	-
21	Blower Motor	622684R	622684R	622684R	622684R	622684R	622684R	-
22	Mount Kit - Blower Motor	904951	904951	904951	904951	904951	904951	-
23	Blower Wheel	667258R	667258R	667258R	667258R	667258R	667258R	230257	$107.01
24	Latch - Door	618107R	618107R	618107R	618107R	618107R	618107R	233052	$20.42
24	Fastener - Door Latch	606317R	606317R	606317R	606317R	606317R	606317R	-
25	Door Assembly- (Louvered)(BW Models)	922094	N/A	922094	N/A	922094	N/A	-
	Door Assembly - (Non-Louvered)(BWT Models)	N/a	922095	N/A	922095	N/A	922095	-
	Filter - (BWT Models)	N/A	669779R	N/A	669779R	N/A	669779R	-
26	Burner Box - Assembly	922017	922017	922018	922018	1022918R	1022918R	-
27	View Port - Burner (Not Shown)	632216R	632216R	632216R	632216R	632216R	632216R	-
28	Fuse - (Not Shown)	632261R	632261R	632261R	632261R	632261R	632261R	233102	$10.21
29	Drain Tube - (Hard "J") (Not Shown)	663706R	663706R	663706R	663706R	663706R	663706R	-
29	Drain Tube - (Soft 23") (Not Shown)	664434R	664434R	664434R	664434R	664434R	664434R	-
30	Drain Tee - (Not Shown)	618060R	618060R	618060R	618060R	618060R	618060R	-
31	Door Assembly - Coil (Not Shown)	903094	903094	903094	903094	903094	903094	239844	$91.28
31	Heat Exchanger - (Not Shown)	921597	921597	921597	921597	921598	921598	-
32	Hose - High Temp (Not Shown)	263967R	263967R	263967R	263967R	263967R	263967R	-
