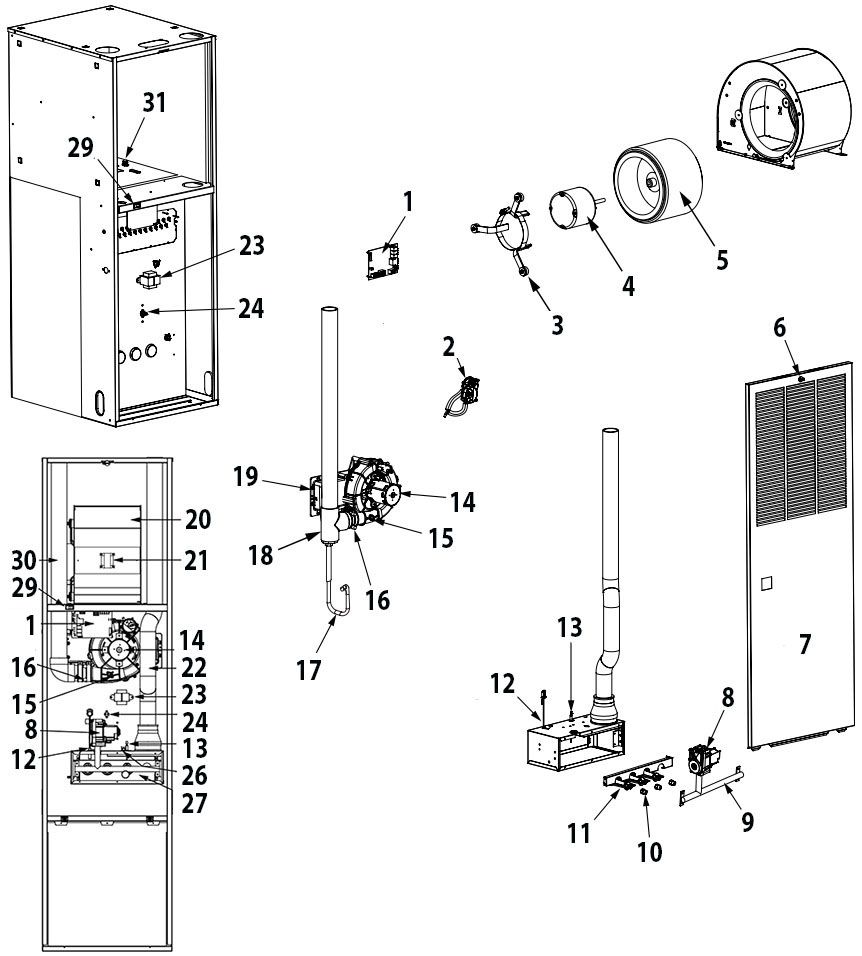

MG2R SERIES - Single Stage Condensing Downflow Gas Furnace

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU MG2R
$0.00
MG2R045F, MG2R045T, MG2R060F, MG2R060T, MG2R072F, MG2R072T
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
MG2R SERIES - Single Stage Condensing Downflow Gas Furnace
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details

# DESCRIPTION MG2R PART # PRICE
045F 045T 060F 060T 072F 072T
1 Control Board 1021573R 1021573R 1021573R 1021573R 1021573R 1021573R -
2 Pressure Switch 632492R 632492R 632492R 632492R 632492R 632492R 239660 $31.15
3 Mount Kit - Blower Motor 904951 904951 904951 904951 904951 904951 -
4 Blower Motor 1028495R 1028498R 1028496R 1028499R 1028497R 1028500R -
5 Blower Wheel 667258R 667258R 667258R 667258R 667258R 667258R 230257 $107.01
6 Latch - Door 618107R 618107R 618107R 618107R 618107R 618107R 233052 $20.42
7 Door Assembly 903977 - 903977 - 903977 - 233110 $154.70
Door Assembly - 904049 - 904049 - 904049 -
Filter - (Not Shown) 669363R - 669363R - 669363R - P-2022 $ 6.62
8 Gas Valve 903596 903596 903596 903596 903596 903596 233105 $135.15
9 Manifold - Burner Tube 664639R 664639R 664639R 664639R 664640R 664640R -
10 Orifice - (LP Gas) 661057R 661057R - - - - 233119 $12.19
Orifice - (LP Gas) - - 661055R 661055R - - -
Orifice - (LP Gas) - - - - 661056R 661056R 233169 $12.08
Orifice - (Natural Gas) 661049R 661049R - - 661047R 661047R -
Orifice - (Natural Gas) - - 661045R 661045R - - 233080 $13.14
11 Burner - Inshot 661135R 661135R 661135R 661135R 661135R 661135R 233045 $15.90
12 Ignitor 1016290S 1016290S 1016290S 1016290S 1016290S 1016290S 233167 $65.47
13 Sensor - Flame 903600 903600 903600 903600 903600 903600 102880 $28.14
14 Inducer Motor - With Gasket 921494 921494 921494 921494 921494 921494 233155 $484.54
Inducer Orifice - (Not Shown) 669927R 669927R 669749R 669749R 669712R 669712R -
16 Drain Assembly - Inline 664435R 664435R 664435R 664435R 664435R 664435R -
17 Drain Tube - (Hard "J") 663706R 663706R 663706R 663706R 663706R 663706R -
Drain Tube - (Soft 23") (Not Shown) 664434R 664434R 664434R 664434R 664434R 664434R -
18 Vent Tee 618060R 618060R 618060R 618060R 618060R 618060R -
19 Header Box - Outlet 904802 904802 904802 904802 904802 904802 -
20 Blower Assembly -
21 Motor Choke 622340R 622340R 622340R 622340R 622340R 622340R 233139 $117.30
22 Air Pipe - Combustion -
23 Transformer 622341R 622341R 622341R 622341R 622341R 622341R 233166 $29.42
24 Limit Switch - Main Air 626567R 626567R 626617R 626617R 626598R 626598R -
26 Limit Switch - Roll Out 626608R 626608R 626608R 626608R 626608R 626608R 233170 $ 7.73
27 Burner Assembly - Gas Manifold 664639R 664639R 664639R 664639R 664640R 664640R -
28 View Port - Burner (Not Shown) 632216R 632216R 632216R 632216R 632216R 632216R -
29 Switch - Door 632337R 632337R 632337R 632337R 632337R 632337R 233056 $ 7.33
30 Vent Pipe -
31 Limit Switch - Blower Deck 626602R 626602R 626602R 626602R 626602R 626602R 236895 $20.42
32 Door Assembly - Coil (Not Shown) 903094 903094 903094 903094 903094 903094 239844 $91.28
33 Fuse - (Not Shown) 632261R 632261R 632261R 632261R 632261R 632261R 233102 $10.21
34 Heat Exchanger - (Not Shown) 921597 921597 921597 921597 921598 921598 -
