MG, MM Furnace Diagram
+2

MG(H,B)(A,B) 7 MM(H,B(A,B)

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU MGMH
$0.00
MGHA-056, MGHA-066, MGHA-070, MGHA-075, MGHA-090, MGHA-90PQ, MMHA-056, MMHA-066, MMHA-070, MMHA-075, MMHA-090
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
MG(H,B)(A,B) 7 MM(H,B(A,B)
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details

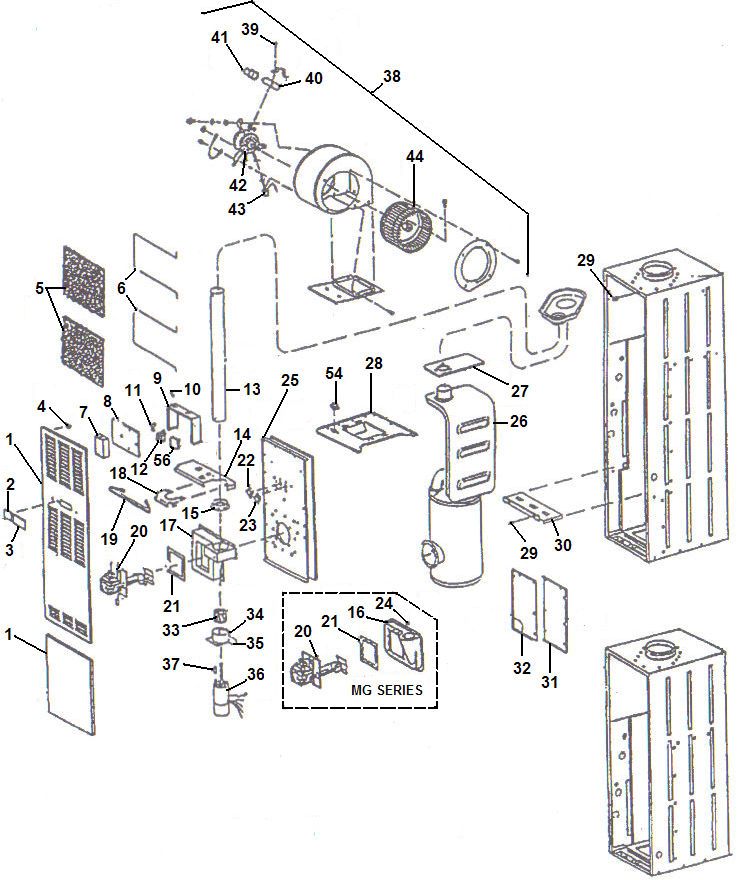

# DESCRIPTION MG(H,B)A MM(H,B)A MG(H-B)B MM(H-B)B MFG# PART
#
PRICE
056 070 077 90PQ 056 070 077 090 056 70 77 90PQ 070 070 077 090
1 Door - Louvered (Gray) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 902004 -
Door - Louvered (White) 903093 -
Door - Coil (B-Cabinet)(Gray) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 902005 -
Door - Coil (B-Cabinet)(Wht) 903094 -
2 Plate - Name (Miller) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 687013 -
Plate - Name (Intertherm) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 687012 -
3 Door Insert - Decorative 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 668772 -
4 Latch - Door 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 668420 231280 $ 6.53
5 Filter - Air 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 669086 P-1420 $ 4.17
6 Retainer - Air Filter 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 668788 233055 $21.92
7 Control Module 1 1 1 1 1 1 1 1 626421 239624 $236.42
8 Cover - Control Box 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 258820 -
9 Control Box 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 354990 -
10 Switch - On-Off Fan 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 631947 -
11 Cap Pin 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 631728 -
12 Transformer (30 VA) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 621098 102108 $44.45
13 Pipe - Fresh Air 4" 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 356272 -
14 Shelf Divider 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 355500 -
15 Collar 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 246850 -
16 Air Box - Lower -056 1 1 493022 -
Air Box - Lower -070 1 1 493023 -
Air Box - Lower -077 1 1 493024 -
Air Box - Lower -90PQ 1 1 493035 -
17 Air Box - Lower -056 HSI 1 1 493031 -
Air Box - Lower -070 HSI 1 1 493032 -
Air Box - Lower -077 HSI 1 1 493033 -
Air Box - Lower -090 HSI 1 1 493035 -
18 Shelf Divider - Close-Off 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 247360 -
19 Tape - Foam 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 688877 -
20 Burner - MG/less orifice 1 1 1 1 1 1 1 1 902650 -
Burner - HSI/less orifice 1 1 1 1 1 1 1 1 902651 -
21 Gasket - Burner 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 689009 -
22 Limit - 150* F 1 1 1 1 626338 239627 $35.25
Limit - 155* F 1 1 1 1 1 1 1 1 626341 239629 $17.54
Limit - 140* F 1 1 1 1 626279 239630 $43.23
23 Fan - 115 * F 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 626337 239626 $20.08
24 Limit - Flame Rollout 1 1 1 1 1 1 626352 236895 $20.42
25 Air Casing - Front 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 492970 -
26 Heat Exchanger - 2-Pipe 1 1 1 1 1 1 1 1 902758 -
Heat Exchanger - 3-Pipe 1 1 1 1 902760 -
Heat Exchanger - 3-Pipe 1 1 1 1 902759 -
27 Insulation - Heat Exchanger 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 689055 -
Air Casing - Top 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 354990 -
29 Strike - Door 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 668905 231281 $ 5.84
30 Divider Shelf - (B-Cab.) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 355050 -
31 Close-Off - Right (B.-Cab.) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 355490 -
32 Close-Off - Left (B.-Cab.) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 355480 -
33 Wheel - Combustion 1 1 1 667186 -
Wheel - Combustion 1 1 1 1 1 1 667187 230137 $55.60
34 Scroll 1 1 1 1 1 1 1 1 355510 -
35 Plate - Mounting 1 1 1 1 1 1 1 1 355860 -
36 Motor Combustion 1 1 1 1 1 1 1 1 1 1 621080 239601 $481.20
37 Grommet 1 1 1 1 1 1 1 1 668785 -
38 Blower Assembly - 56 1 1 902906 -
Blower Assembly - 70 1 1 902903 -
Blower Assembly - 77/90 1 1 1 1 1 1 1 1 902904 -
Blower Assembly - 56/70 1 1 1 1 902905 -
Blower assembly - (BB-models) 1 1 1 1 1 1 1 1 902809 -
39 Strap - Capacitor 1 1 1 1 1 1 1 1 1 1 1 1 606228 -
40 Capacitor - 7.5 MFD 1 1 1 1 1 1 1 1 1 1 1 1 621434 -
41 Boot - Capacitor 1 1 1 1 1 1 1 1 1 1 1 1 632232 -
42 Motor - 1/8 HP 1 1 902042 231052 $546.48
Motor - 1/5 HP 1 1 901873 239602 $287.20
Motor - 1/4 HP 1 1 1 1 901874 239603 $620.27
Motor - 1/3 HP (3-Speed)
(BB-models)
1 1 1 1 1 1 1 1 901875 239604 $570.64
Motor - 1/3 HP (2-Speed) 1 1 1 1 902653 230270 $462.64
43 Plug - Circuit 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 631724 -
44 Blower Wheel - 10 x 7 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 667252 238136 $100.37
45 Gas Valve - (Atm) 7200 1 1 1 1 1 1 1 1 624491 231335 $376.45
Gas Valve - (HSI) 7200 1 1 1 1 1 1 1 1 624490 239616 $454.48
46 Thermocouple 1 1 1 1 1 1 1 1 631132 231350 $40.50
47 Pilot Tube 1 1 1 1 1 1 1 1 257590 -
48 Orifice - Natural Gas -056 1 1 1 1 660836 233076 $13.14
Orifice - Natural Gas -070 1 1 1 1 660835 -
Orifice - Natural Gas -077 1 1 1 1 660834 -
Orifice - Natural Gas -090 1 1 1 1 660833 233079 $12.08
Orifice - L.P. -056 1 1 1 1 660792 233080 $13.14
Orifice - L.P. -070 1 1 1 1 660793 -
Orifice - L.P. -077 1 1 1 1 660838 233081 $12.08
Orifice - L.P. -090 1 1 1 1 660837 233083 $12.19
49 Burner - Pilot 1 1 1 1 1 1 1 1 660869 -
50 Shield - Pilot 1 1 1 1 1 1 1 1 247630 -
51 Support - Valve 7200 1 1 1 1 1 1 1 1 257653 -
Support - Valve MM 1 1 1 1 1 1 1 1 380850 -
52 Ignitor Kit 1 1 1 1 1 1 1 1 902661 239635 $76.91
54 Limit - 140* Auxilliary 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 626391 231156 $18.98
55 Rod - Pilot Lighter 1 1 1 1 1 1 1 1 618020 -
56 Relay - 90PQ 1 1 620689 231348 $26.19
57 Relay - A/A 1 1 1 1 1 1 1 1 1 1 1 620537 -
