MAC 1175 SERIES FURNACE
SKU MAC1175
$0.00
MAC 1175
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
MAC 1175 SERIES FURNACE
Product Details

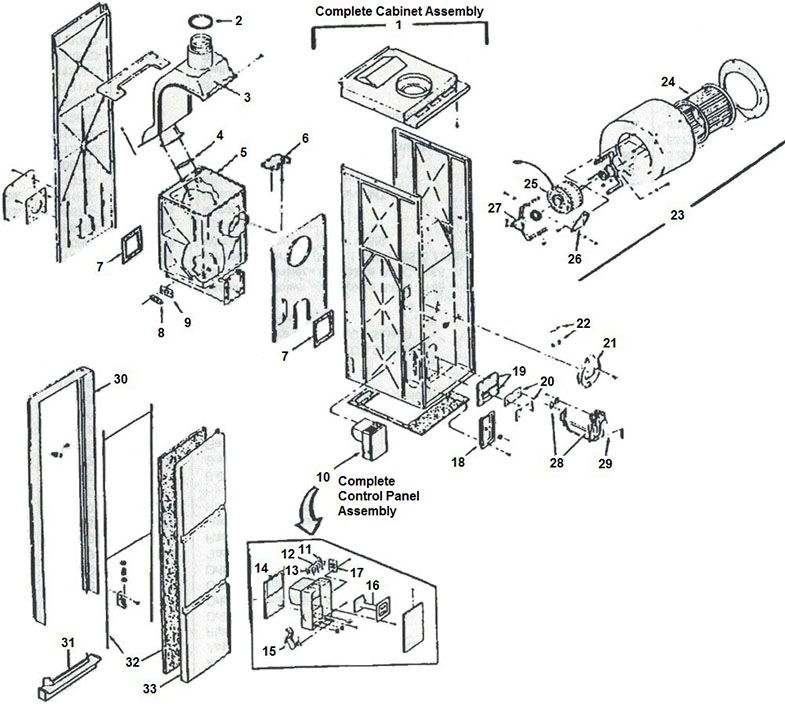

| # | DESCRIPTION | MFG# | PART# | PRICE |
| 1 | Cabinet Assembly - Complete | 4190800- | - | |
| 2 | Gasket - Upper Flue Pipe | 6880940- | - | |
| 3 | Radiator | 4072214- | - | |
| 4 | Gasket - Lower Flue Pipe | 688095- | - | |
| 5 | Exchanger - Heat | 4202200- | - | |
| 6 | Burner - Target | 208620- | - | |
| 7 | Gasket - Combustion Air (2) | 6880970- | - | |
| 8 | Control - Auxiliary Limit, New Style
Control - Before 8/71 |
626194-
626021- |
-
- |
|
| 9 | Gasket - Limit Control | 688261- | - | |
| 10 | Control Panel Assembly - Complete | 4212700- | - | |
| 11 | Switch - Unit | 6313050- | - | |
| 12 | Receptacle - White | 631300- | - | |
| 13 | Receptacle - Black | 6313000- | - | |
| 14 | Insulation - Control Panel | 6880721- | - | |
| 15 | Transformer | 620825- | 231311 | $105.62 |
| 16 | Control - Fan & Limit, New Style
Control - Before 8/71, Fan & Limit Limit Switch Only - f/626017 Fan & Switch |
626185-
626017- 626019 |
-
- - |
|
| 17 | Board - Terminal | 6313110- | - | |
| 18 | Well - Close-Off | 2167101- | - | |
| 19 | Seal - Cover - Upper
Seal - Cover - Lower |
6883031-
6883041- |
-
- |
|
| 20 | Plate - Cover - Upper
Plate - Cover - Lower |
2145700-
2185700- |
-
- |
|
| 21 | Door - Fire | 3169701- | - | |
| 22 | Hinge - Bracket - Fire Door
Pin - Hinge - Fire Door |
1025811-
6676440- |
-
- |
|
| 23 | Blower Assembly - Complete
Blower Assembly - Optional Heating & Cooling |
4106900-
9101830- |
-
- |
|
| 24 | Wheel - Blower | 667037- | - |
|
| 25 | Motor - Blower - Complete w/Bkts.
Moter - A/C |
900628-
900631- |
-
- |
|
| 26 | Bracket - Motor Hanger (3) | 2092104- | - | |
| 27 | Bracket - Motor Mounting (6) | 2100602- | - | |
| 28 | New Assemblt Burner
Unitrol Replacement Valve Bracket - Control Valve |
901348-
624464- 1093201- |
-
- |
|
| 29 | Tube - Inlet Line | 2109703- | - | |
| 30 | Frame - Door - Side | 4126502- | - | |
| 31 | Frame - Door - Bottom
Extension - Bottom Frame |
4203200-
2173400- |
-
- |
|
| 32 | Filter - Furnace | 667720 | - | |
| Filter Kit - (Includes filter and three retainers) | 925056 | - | ||
| 33 | Door | 9002210- | - |
