M7TL SERIES FURNACE - Two Stage Condensing Downflow Gas Furnace
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details

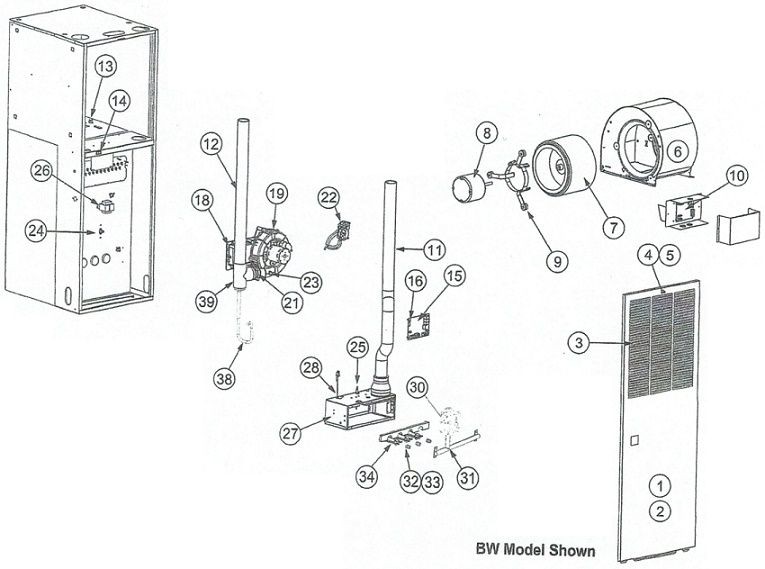

# DESCRIPTION 045A () 060A () 072A () PART # PRICE
1 Door Assembly - Louvered (BW Models) 922094 922094 922094 -
2 Door Assembly - Non-Louvered (BWT Models) 922095 922095 922095 -
3 Filter - (BWT Models) 669779 669779 669779 -
4 Latch - Door 618107 618107 618107 -
5 Fastener - Door Latch 606317 606317 606317 -
6 Blower Assembly 922015 922015 922015 -
7 Wheel - Blower 667258 667258 667258 230257 $107.01
8 Motor - Blower 622636 622636 622636 -
9 Mount Kit - Blower Motor 904951 904951 904951 -
10 Control Board - Blower 922016 922016 922016 -
11 Inlet Pipe - Combustion Air 664645 664645 664645 -
12 Pipe - Vent 664644 664644 664644 -
13 Blower Deck Limit 626602 626602 626602 233153 $ 9.26
14 Switch - Door 632337 632337 632337 233056 $ 7.33
15 Control Board - Furnace 920915 920915 920915 233154 $256.86
16 Fuse 632261 632261 632261 233102 $10.21
17 Heat Exchanger (Not Shown) 921597 921597 921597 -
18 Outlet Header Box 904802 904802 904802 -
19 Inducer Motor - With Gasket 904799 904799 904799 -
20 Inducer Orifice (Not Shown)
Inducer Orifice (Not Shown)
669927
-
669749
-
-
669712
-
233158

$ 6.78
21 Inline Drain Assembly 664435 664435 664435 -
22 Pressure Switch
Pressure Switch
632656
-
-
632657
632656
-
-
-
23 Inducer Limit 626599 626599 626599 233162 $13.89
24 Main Air Limit 626601 626601 - 233163 $ 9.26
Main Air Limit - - 626612 -
25 Rollout Limit 626608 626608 626608 -
26 Transformer 622341 622341 622341 233166 $29.42
27 Burner Box Assembly 922017 922018 922019 -
28 Igniter - R/by 10162905 632625 632625 632625 233167 $65.47
29 Flame Sensor 632316 632316 632316 102880 $28.14
30 Gas Valve 624787 624787 624787 -
31 Manifold 664639 664639 664639 -
32 Orifice - Natural 661049 233118 $12.08
Orifice - Natural 661045 233080 $13.14
Orifice - Natural 661046 -
33 Orifice - LP 661078 233121 $12.32
Orifice - LP 661055 -
Orifice - LP 661079 -
34 Burner Inshot 661135 661135 661135 233045 $15.90
35 Burner View Port (Not Shown) 632216 632216 632216 -
36 Drain Tube - Soft, 23" (Not Shown) 664434 664434 664434 -
37 Drain Tube - Soft, 42" (Not Shown) 664278 664278 664278 -
38 Drain Tube - Hard "J" 663706 663706 663706 -
39 Drain Tee 618060 618060 618060 -
40 Hose - High Temp (Not Shown) 263967 263967 263967 -
41 Set of Wires (Not Shown) M0089701 M0089701 M0089701 -
42 Coil Door Assembly (Not Shown) 903094 903094 903094 -
