M7RL SERIES - Single Stage Condensing Downflow Gas Furnace

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU M7RL
$0.00
M7RL
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
M7RL SERIES - Single Stage Condensing Downflow Gas Furnace
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details

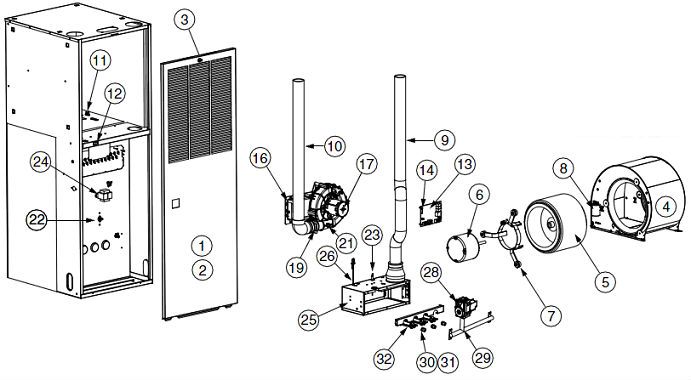

# DESCRIPTION 045A () 060A () 072A () PART # PRICE
1 Door Assembly - Louvered (AW & BW Models) 903977 903977 903977 233110 $154.70
2 Door Assembly - Non-Louvered (BWT Models) 904049 904049 904049 -
3 Filter - (AW & BW Models) 669363 669363 669363 P-2022 $ 6.62
4 Blower Assembly 921490 921490 921490 -
5 Wheel - Blower 667258 667258 667258 230257 $107.01
6 Motor - Blower 904858 904858 233150 $439.54
Motor - Blower 904859 233151 $509.25
7 Mount Kit - Blower Motor 904951 904951 904951 -
8 Capacitor 622545 622545 622549 -
9 Inlet Pipe - Combustion Air 664645 664645 664645 -
10 Vent Pipe 664644 664644 664644 -
11 Blower Deck Limit 626602 626602 626602 233153 $ 9.26
12 Switch - Door 632337 632337 632337 233056 $ 7.33
13 Control Board 920915 920915 920915 233154 $256.86
14 Fuse 632261 632261 632261 233102 $10.21
15 Heat Exchanger 921597 921597 921597 -
16 Outlet Header Box 904802 904802 904802 -
17 Inducer Motor - with Gasket
Inducer Gasket - only
921494
690283
921494
690283
921494
690283
233155
-
$484.54
-
18 Orifice - Inducer
Inducer Limit
669927
-
669749
-

669712
-
233158

$ 6.78
19 Drain Assembly - Inline 664435 664435 664435 -
20 Pressure Switch 632624 - 632624 233161 $35.02
Pressure Switch - 632622 - 233160 $31.15
21 Vent Limit 626599 626599 626599 233162 $13.89
22 Main Air Limit 626601 626601 - 233163 $ 9.26
Main Air Limit - - 626600 233164 $ 9.26
23 Rollout Limit 626609 626609 626609 233165 $11.90
24 Transformer 622341 622341 622341 233166 $29.42
25 Box Assembly - Burner 921495 921599 921496 -
26 Ignitor - R/by 10162905 632625 632625 632625 233167 $65.47
27 Flame Sensor 632316 632316 632316 102880 $28.14
28 Gas Valve 624610 624610 621610 233105 $135.15
29 Manifold 664639 664639 664640 -
30 Orifice - Natural 661049 233118 $12.08
Orifice - Natural 661045 233080 $13.14
Orifice - Natural 661047 -
31 Orifice - LP 661057 - - 233119 $12.19
Orifice - LP - 661056 661056 233169 $12.08
32 Burner Inshot 661135 661135 661135 233045 $15.90
33 View Port - Burner 632216 632216 632216 -
34 Drain Tube - Soft, 42" 664278 664278 664278 -
35 Drain Tube - Hard "J" 663706 663706 663706 -
36 Tee - Drain 618060 618060 618060 -
